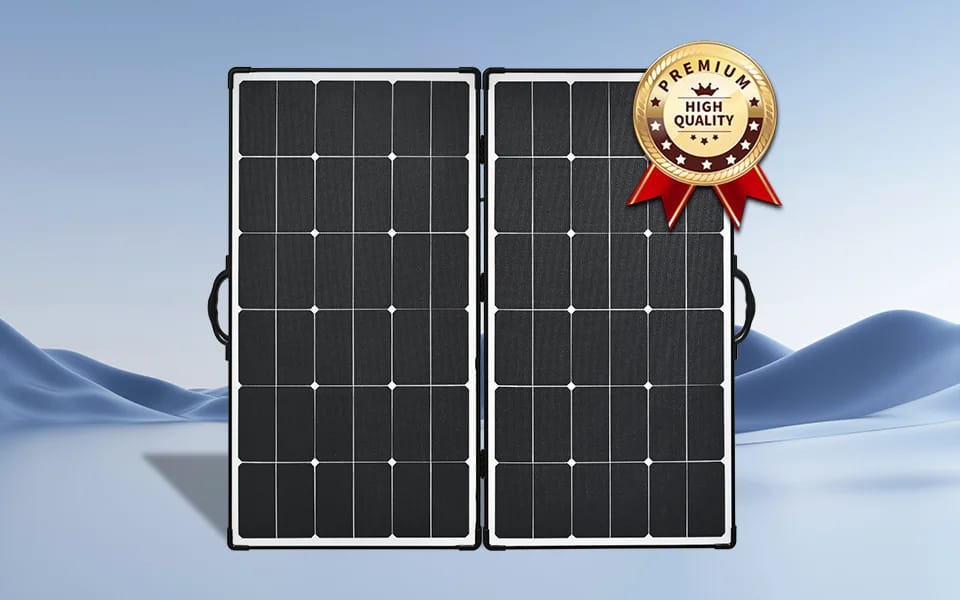

High efficiency
Sungold Hi-Power s-2*100W Portable Solar Panel is suitable for portable power stations. Instantly charge your smartphone, laptop, tablet, iPad, GPS, USB fan, camera, or other devices quickly.

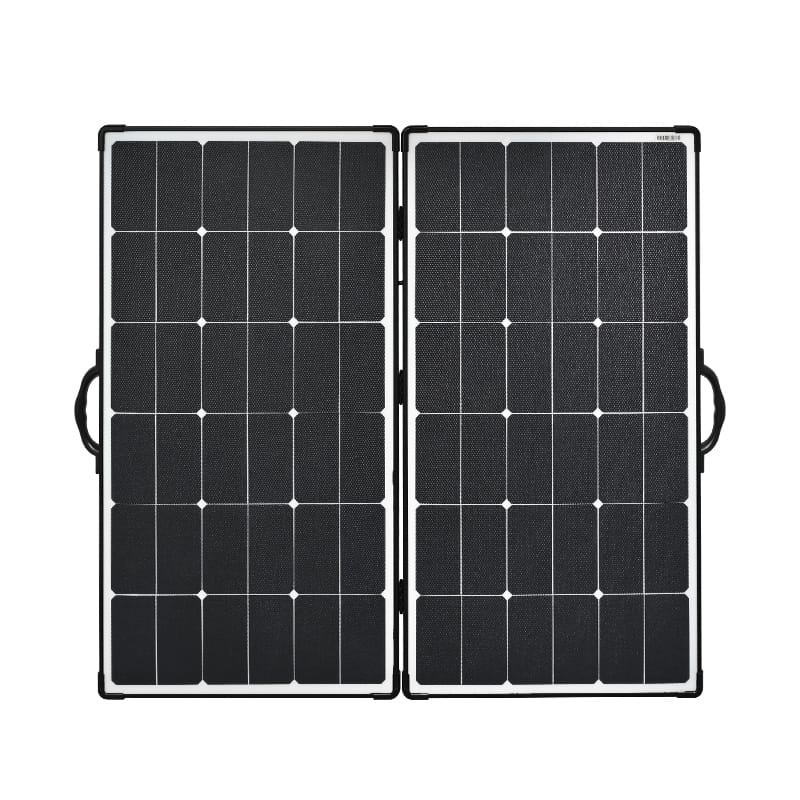

HP-S-200W Portable Solar Panel
HP-S-200W Portable Solar Panel
Brand: Sungold
Cells Efficiency:22.80%
Folding Size: 987*547*50mm
Unfolding Size: 1095*987*25mm
Weight: 6.15kg
Description
Sungold 200W portable solar panel utilizes A+ grade Sunpower solar cells with an efficiency of up to 24.4%. With the foldable design and adjustable kickstand on the back, you can adjust the solar panel to multiple angles for optimal efficiency.
【Excellent Efficiency】Sungold solar panels use sunpower solar cells. Higher power generation efficiency of 24.4%, which can still maintain stable output in low light environment.
【Foldable Design】Provides more flexibility for outdoor and off-grid use, easy to carry, store and install.
【Wide Applications】High power series 200w solar panels are suitable for off-grid homes, RVs, commercial vehicles, boats, outdoor camping and other application scenarios.
【Reliable Quality】Kit comes with a high quality and sturdy canvas protective cover. The highly weatherproof backsheet can last up to 10 years. In addition, we offer a 5-year warranty on materials and workmanship.
Product Features
HP-D-200W Portable Solar panel

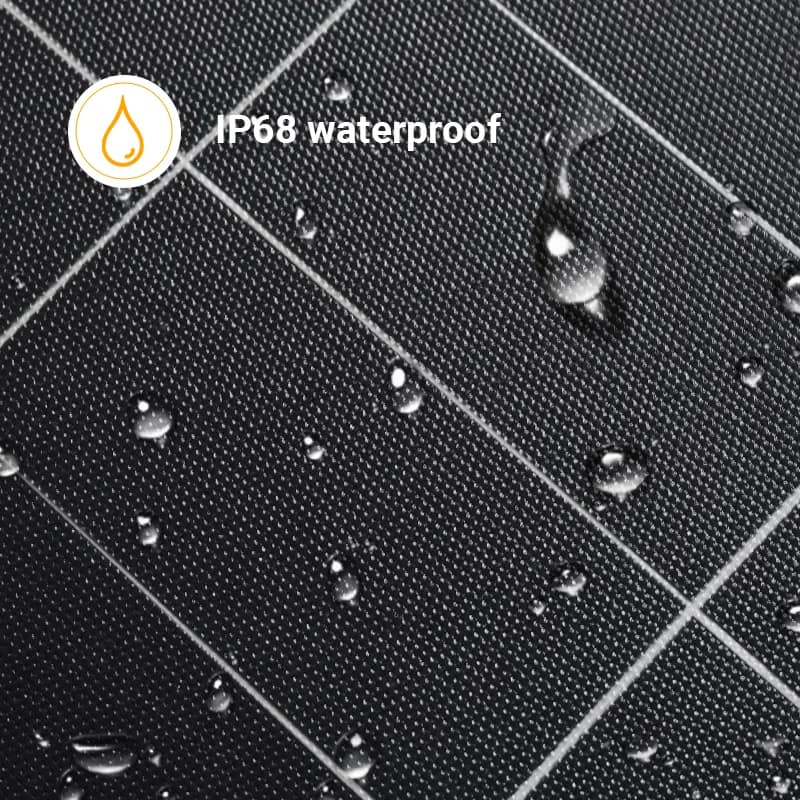

ETFE surface material
It is made of ETFE surface material. The panel is UV resistant, has sound light transmission, and can achieve 98% light transmission. It also provides excellent weathering and salt spray resistance for solar panels, extending the service life of solar panels.

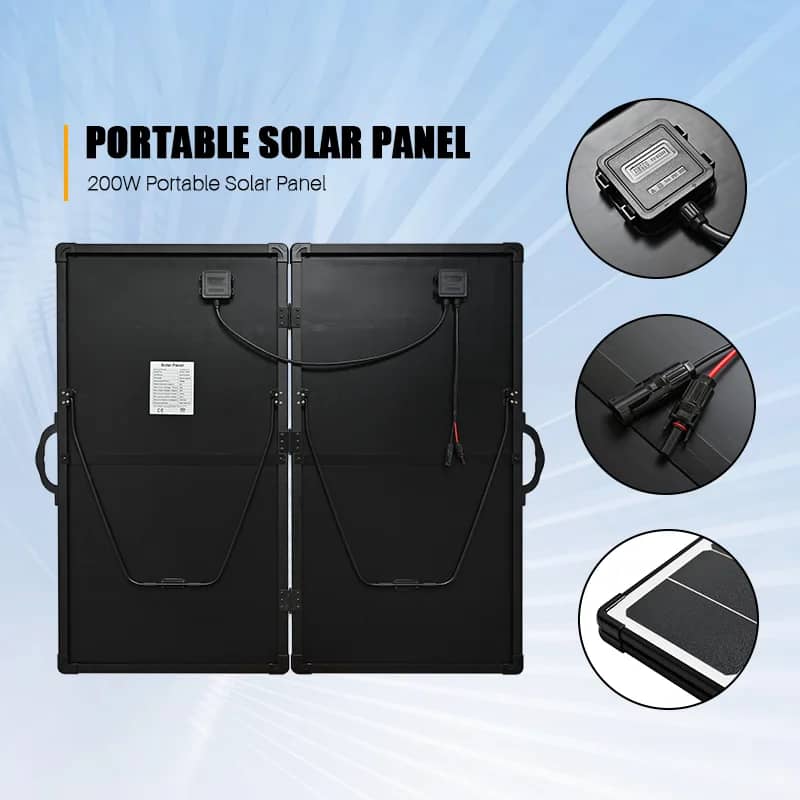

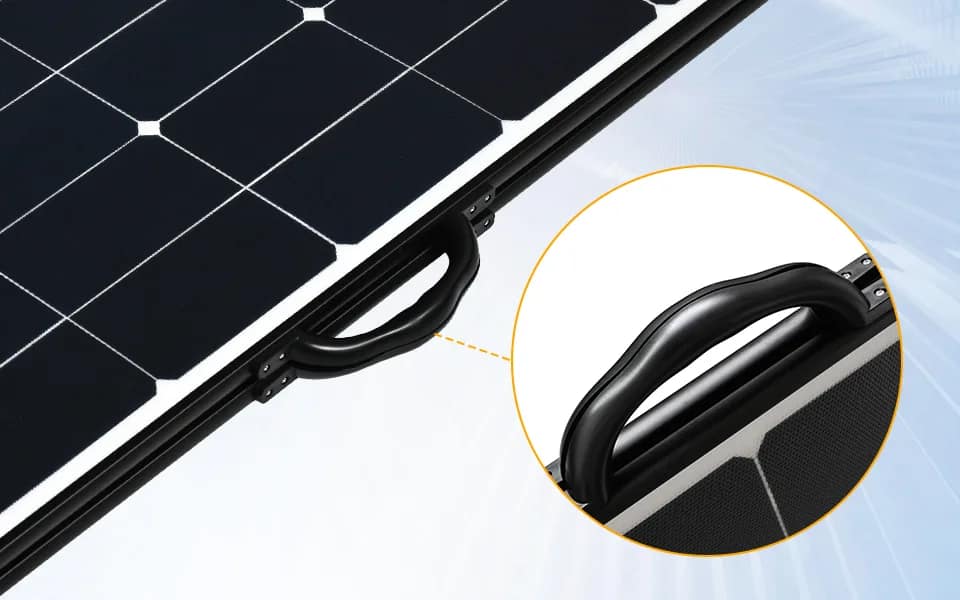

Easy To Use
The Sungold Hi-Power 2*100W portable solar panel features a foldable design. It consists of 2 connected 100W panels. Each solar panel has an adjustable bracket underneath. When folded, the solar panel is approximately 987*547*50mm and can fit in the trunk of a small car.
Using mono solar cells
Sungold Hi-Power 2*100W portable solar panel is made of high-efficiency monocrystalline silicon solar cells. Its efficiency is up to 22.80%. You can enjoy the power of the sun to your heart’s content. It is a ready-made outdoor off-grid solution.

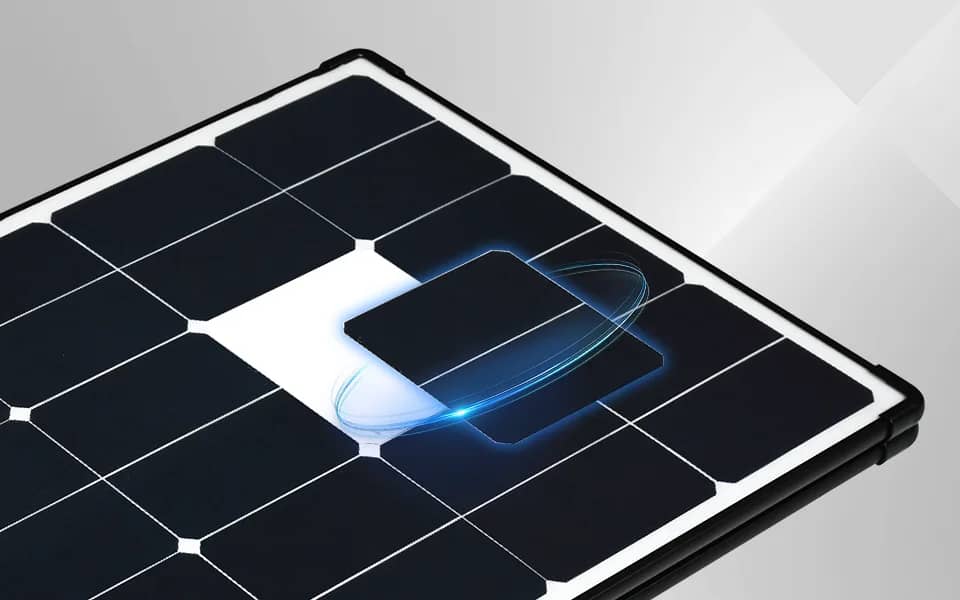

Sunpower Solar Cells, 24.4% High Efficiency
The Sungold 200w portable solar panel is powered by A+ grade sunpower solar cells known for their superior high performance, and through advanced photovoltaic lamination technology, it achieves higher module quality and cell performance, realizing a high power generation efficiency of up to 24.4%, providing you with an even better charging experience.
Paired with a portable power station, this 200W solar panel provides you with an efficient and convenient solar charging solution for a variety of outdoor activities and portable power needs.

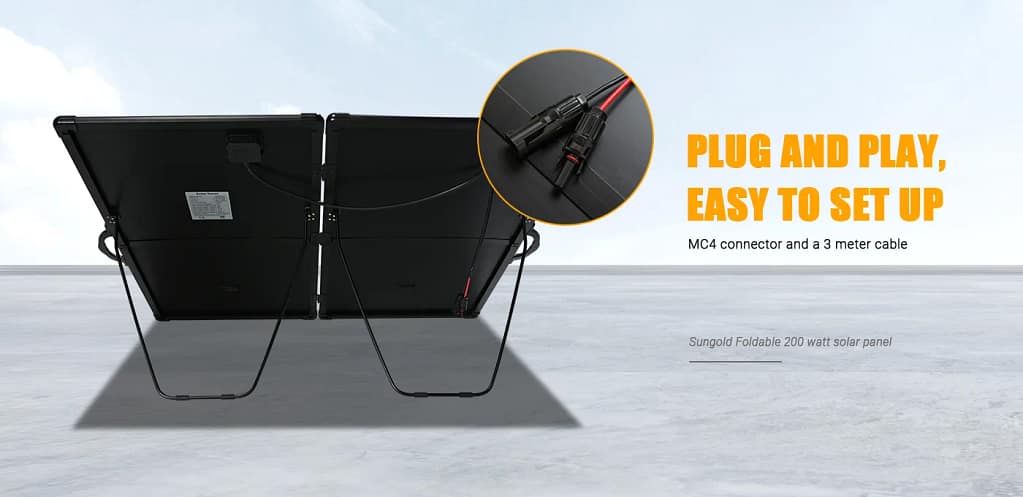

Plug and play, easy to set up
The Sungold Foldable 200 watt solar panel comes with an MC4 connector and a 3 meter cable, allowing you to connect the charge controller to many types of batteries or portable power stations in the simplest way possible, making it ideal for mobile systems that require flexibility.
It is ideal for mobile systems that require flexibility and can be used in off-grid environments such as RVs, camping, yachts and other off-grid environments for a wide range of applications.

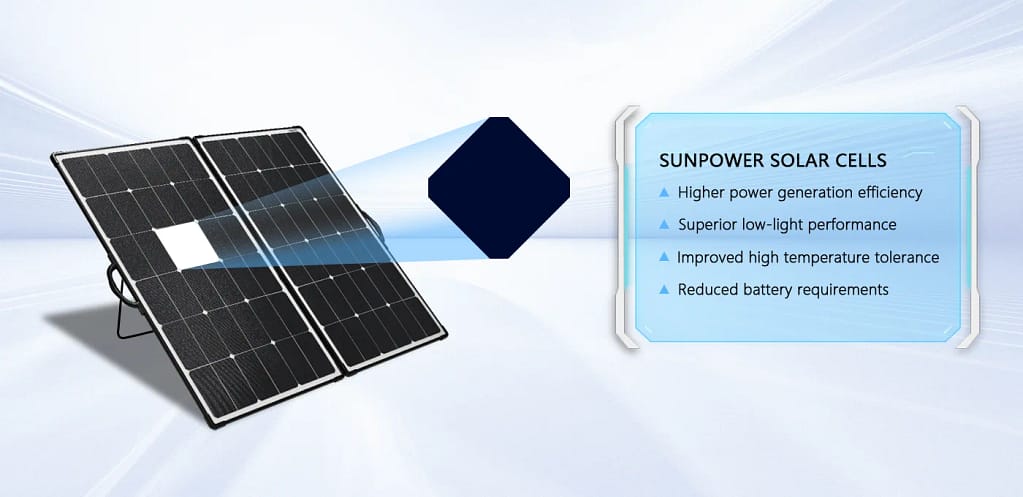

Superior low-light performance
Sungold 200W foldable solar panel is designed with highly efficient SunPower solar cells and a built-in bypass diode that prevents the reverse flow of current, thus ensuring that the panel maintains a high level of efficacy even in partial shade or weak sunlight. It also reduces the impact of hotspot effect, which can better maintain its performance and lifetime.200 watt solar panel is not only considered for performance, but also for safety and reliability.
Specifications
The HP-2*100W series adopts patented materials, new technology, and the service life of solar panels is longer. You can lift this foldable solar panel with only one hand. It is very light and portable. It is an indispensable solar module for outdoor applications.
Maximum power(Pmax) | 200W |
| Open-circuit voltage(Voc) | 24.6V |
| Voltage at Pmax(Vmp) | 20.9V |
| Short-circuit current(Isc) | 10.14A |
| Current at Pmax(Imp) | 9.57A |
| Cells efficiency(%) | 24.40% |
| The maximum system voltage | DC200 |
| Power temperature coefficient | -0.38%/℃ |
| Voltage temperature coefficient | -0.36%/℃ |
| Current temperature coefficient | +0.07%/℃ |
| Output power tolerance | ±3% |
| Operating temperature | -20℃ – +70℃ |
| Weight | 7.38KG |

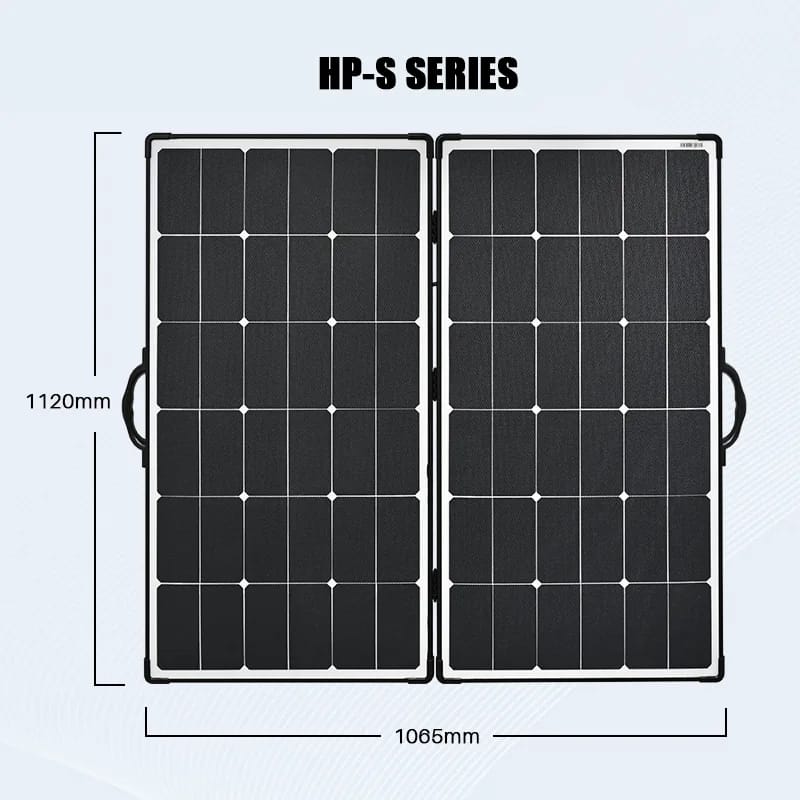

| Unfolding size | 1120*1065*25mm |
| Folding size | 1065*560*50mm |
| Warranty | 5 years |
FAQ
A 200-watt solar panel can generate anywhere from 473 watt-hours per day to 972 watt-hours per day. The actual power output will vary depending on factors such as the location of the installation and the weather conditions on a given day.
For example, if there are 5 hours of peak sunlight in a day, the amount of power generated by a 200 watt solar panel is calculated as follows:
200 watts (solar panel rating) x 5 hours (peak sunlight hours) = 1000 watt-hours.
Under ideal conditions, a 200 watt solar panel will produce approximately 1000 watt-hours or 1 kilowatt-hour of electricity per day.
A 200W solar panel can charge a battery in approximately 5 hours. This calculation assumes that the battery has a capacity of 75ah and is rated at 12 volts. However, the actual charging time can vary depending on several factors such as the quality of the solar panel, the efficiency of the charge controller, the condition of the battery, and the amount of sunlight absorbed³.
If you’re charging a 100ah lithium battery with a 200W solar panel, it might be faster compared to a 100ah lead acid battery. But please note that the charge time slows down at around 90%, so a full lithium battery is really about 90%.
In less than ideal conditions, you might need to double the charge time. For example, on a cloudy day, it might take up to 12 hours to charge the battery.
A portable solar panel is worth it if you engage in outdoor activities, go off-grid, or need an emergency power source.Portable solar panels are often used in conjunction with portable power stations to charge devices while living off-grid. This combination can provide renewable power for outdoor activities, emergencies, and those situations where electronic devices need to be used in places where traditional power sources are not available.
The output power of a solar charger is not only related to the weather, but also to the area of direct sunlight. To get maximum sunlight and higher output power, please adjust the position and angle of the solar charger.
The Optimum Operating Voltage is 20.9V and the Optimum Operating Current is 9.57A.
| Maximum power(Pmax) | 200W |
| Open-circuit voltage(Voc) | 24.6V |
| Voltage at Pmax(Vmp) | 20.9V |
| Short-circuit current(Isc) | 10.14A |
| Current at Pmax(Imp) | 9.57A |
| Cells efficiency(%) | 24.40% |
| The maximum system voltage | DC200 |
| Power temperature coefficient | -0.38%/℃ |
| Voltage temperature coefficient | -0.36%/℃ |
| Current temperature coefficient | +0.07%/℃ |
| Output power tolerance | ±3% |
| Operating temperature | -20℃ – +70℃ |
| Weight | 7.38KG |
| Unfolding size | 1120*1065*25mm |
| Folding size | 1065*560*50mm |
| Warranty | 5 years |
How much power will a 200W Portable Solar Panel produce?
A 200W Portable Solar Panelcan generate anywhere from 473 watt-hours per day to 972 watt-hours per day. The actual power output will vary depending on factors such as the location of the installation and the weather conditions on a given day.
For example, if there are 5 hours of peak sunlight in a day, the amount of power generated by a 200 watt solar panel is calculated as follows:
200 watts (solar panel rating) x 5 hours (peak sunlight hours) = 1000 watt-hours.
Under ideal conditions, a 200W Portable Solar Panel will produce approximately 1000 watt-hours or 1 kilowatt-hour of electricity per day.
How fast can a 200W Portable Solar Panel charge a battery?
A 200W Portable Solar Panel can charge a battery in approximately 5 hours. This calculation assumes that the battery has a capacity of 75ah and is rated at 12 volts. However, the actual charging time can vary depending on several factors such as the quality of the solar panel, the efficiency of the charge controller, the condition of the battery, and the amount of sunlight absorbed³.
If you’re charging a 100ah lithium battery with a 200W Portable Solar Panel, it might be faster compared to a 100ah lead acid battery. But please note that the charge time slows down at around 90%, so a full lithium battery is really about 90%.
In less than ideal conditions, you might need to double the charge time. For example, on a cloudy day, it might take up to 12 hours to charge the battery.
Is it worth getting a 200W Portable Solar Panel?
A 200W Portable Solar Panel is worth it if you engage in outdoor activities, go off-grid, or need an emergency power source.Portable solar panels are often used in conjunction with portable power stations to charge devices while living off-grid. This combination can provide renewable power for outdoor activities, emergencies, and those situations where electronic devices need to be used in places where traditional power sources are not available.
Why can’t the solar panel reach the rated 200W Portable Solar Panel?
The output power of a solar charger is not only related to the weather, but also to the area of direct sunlight. To get maximum sunlight and higher output power, please adjust the position and angle of the solar charger.
What’s the Optimum Operating Voltage (Vmp) and Optimum Operating Current (Imp) for this 200W Portable Solar Panel?
The Optimum Operating Voltage is 20.9V and the Optimum Operating Current is 9.57A.
