Solar Panel For 200 Watts SGBF-TF-S-200w
Model: SGWB2-TF-S-4*50W-A
Brand: Sungold
Weight: 6.0kg
Cell Efficiency: 22.00%
Folding Size: 615*550*32mm
Unfolding Size: 2040*615*16mm
Solar cell: Sunpower
Warranty: 1 year
Sungold Winner bag SGWB2-TF-S-4*50W best solar charger features new technology for greater impact resistance. The Solar Panel For 200 Watts is the epitome of an efficient best solar charger. The solar panel adopts PERC shingled solar cells. in the case of sufficient sunlight, the portable solar panel can convert solar energy into free energy with a conversion efficiency of up to 24%, With its cutting-edge technology and impressive 200W power output, it harnesses the sun’s energy to charge your devices rapidly. Say goodbye to low battery anxiety and embrace eco-friendly charging on the go.
The Sungold 200W solar panel features upgraded ETFE lamination technology and is crafted with high-quality 840D Oxford cloth exterior, offering a waterproof protective design that is durable and abrasion-resistant. Employing integrated ETFE lamination shell technology, it provides dust and dirt resistance while achieving an IP67 waterproof rating, ensuring the product remains undamaged in harsh conditions, resulting in a long-lasting and durable product.
The 200W 12V Sunpower portable solar panel is equipped with MC4 connectors, making it compatible with various energy storage brands available in the market. To connect to different power stations, separate converters may be required. It offers fast charging speeds and supports the parallel or serial connection of multiple solar panels, providing a faster charging rate for the power station. It’s particularly well-suited for portable power stations such as Jackery, BLUTTI, Anker, EF ECOFLOW, and many others.
The portable solar panel is not only lightweight but also highly compact, with foldable dimensions of 630x565x32mm. Its ergonomic handle design offers maximum convenience. It also provides DIY installation options, such as for RVs, marine applications, and more.
The 200W solar panel, featuring SunPower solar cells, boasts a high conversion efficiency of up to 24.4%, significantly higher than the average monocrystalline silicon panels with an efficiency of 22.62%. It provides much greater efficiency, offering more power for your outdoor activities.
Sungold 200 Watt Portable Solar Panel Winner Bag and Portable Power Station can be used to convert sunlight into solar energy, portable design, weighing only 7.7kg, easy to carry, can provide you with continuous and stable power support anytime and anywhere.
Winner Bag 200 watt solar panel kit uses high quality Sunpower solar cells, which can convert up to 24.4% of sunlight into solar energy, with more stable performance, enhanced product quality, and significantly higher power generation efficiency, which can be used for charging solar generators and portable power stations even in inclement weather.
Sungold solar panel for 200 watts is made of ETFE material on the surface and cloth stitching on the back to resist any scratches and splashes, ideal for camping, fishing, hiking and other activities. However, like most camping solar panels on the market, they need to be protected from rain or water when in use.
The Sungold solar panel for 200 watts performs well in full sunlight and has a power generation efficiency of up to 22%. Its versatile application scenarios include RV and camping life, powering lighting, cell phone charging, mini-fridges, laptops and all kinds of low-power electronic devices. In addition, its compact design occupies only 630*565*32 mm of space when folded and weighs only 7.7 kg, making it very light to carry. This solar panel is suitable for various application scenarios such as RV, camping, fishing boat, home, etc., providing you with a convenient green power solution.
Sungold Winner bag SGWB2-TF-S-4*50W-A foldable and portable solar panel is strong, reliable and easy to use. No matter where you are, you can use the portable solar panel to charge your tablet, phone, laptop or fan for your usage needs.
| Maximum power(Pmax) | 200W |
| Open-circuit voltage(Voc) | 25.9V |
| Voltage at Pmax(Vmp) | 20.9V |
| Short-circuit current(Isc) | 10.4A |
| Current at Pmax(Imp) | 9.57A |
| Cells efficiency(%) | 22.00% |
| The maximum system voltage | DC100 |
| Power temperature coefficient | -0.38%/℃ |
| Voltage temperature coefficient | -0.36%/℃ |
| Current temperature coefficient | +0.05%/℃ |
| Output power tolerance | ±3% |
| Operating temperature | -10℃-+60℃ |
| Weight | 7.70KG |
| Unfolding size | 2380*565*16mm |
| Folding size | 630*565*32mm |
| Warranty | 1 Year |
Folded size: 615*550*32mm ; Unfolded size: 2040*615*16mm
The exterior of the solar panel is made of waterproof polyester canvas, so it is water-resistant and has an IP67 waterproof rating. However, please do not leave it in the rain or submerge it in water. The junction box on the solar panel is not waterproof, so please keep it dry.
Solar panels are affected by many factors. For example, the intensity of light and the angle at which the panel is placed on the ground. 200W is tested in an ideal laboratory. In addition, the output power of the solar panel may be limited by the maximum input power of the power station. Please try testing your solar panels in full sunlight to see and make sure there are no shadows on the panels.

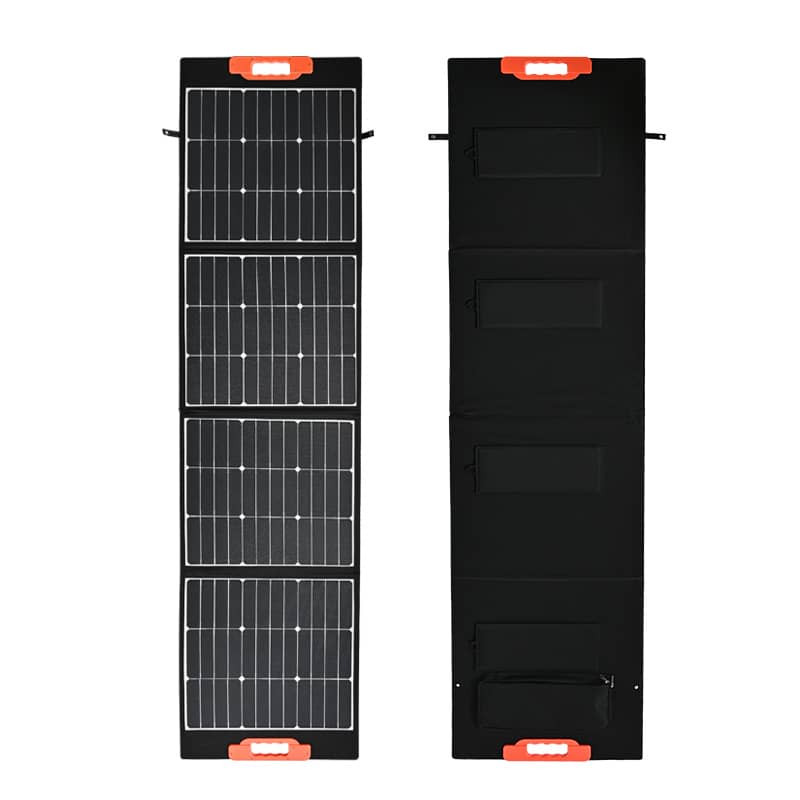

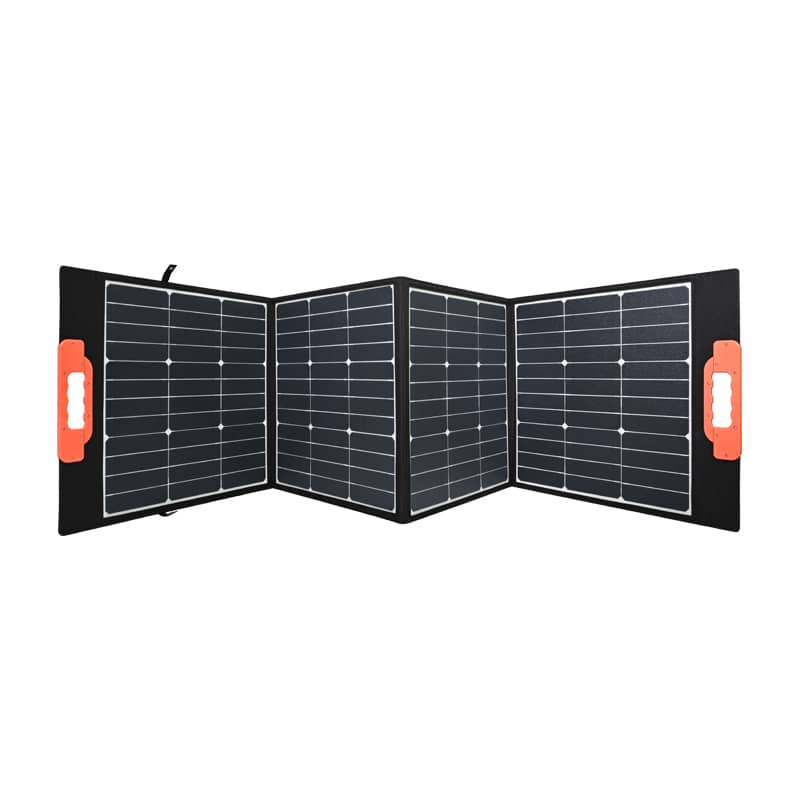

The Sungold Winner bag SGWB2-TF-D-4*50W-A portable solar panel is made up of four 50W solar panels with four adjustable brackets that can be angled at any time. The solar panel’s bracket is durable enough without being damaged by external forces.
Hello, made in China. We offer the best quality and cost-effective products and design your solar solution according to your needs.
| Maximum power(Pmax) | 200W |
| Open-circuit voltage(Voc) | 25.9V |
| Voltage at Pmax(Vmp) | 20.9V |
| Short-circuit current(Isc) | 10.4A |
| Current at Pmax(Imp) | 9.57A |
| Cells efficiency(%) | 22.00% |
| The maximum system voltage | DC100 |
| Power temperature coefficient | -0.38%/℃ |
| Voltage temperature coefficient | -0.36%/℃ |
| Current temperature coefficient | +0.05%/℃ |
| Output power tolerance | ±3% |
| Operating temperature | -10℃-+60℃ |
| Weight | 7.70KG |
| Unfolding size | 2380*565*16mm |
| Folding size | 630*565*32mm |
| Warranty | 1 Year |
On average, a 200 watt – 12-volt solar panel would be able to produce 60 to 100 Amp hours per day1. If the solar panel is able to get direct sunlight, it would be able to produce 10 to 12 amps of energy per hour.
Yes, it is technically possible to connect a 100W solar panel to a 200W solar panel, but it’s not recommended. This is because the panels have different electrical characteristics such as voltage and current.
When solar panels are connected in series, the voltages add up but the current remains the same. Conversely, when solar panels are connected in parallel, the current adds up but the voltage remains the same.
Folding Size: 630*565*32mm
Expanding Size: 2380*565*16mm
Yes, a 200-watt solar panel is rated to produce 200 watts of energy per hour under ideal conditions1. However, the actual output can vary and is typically about 70-80% of its rated power. This is due to factors such as the angle of the sun, cloud cover, and other environmental conditions.

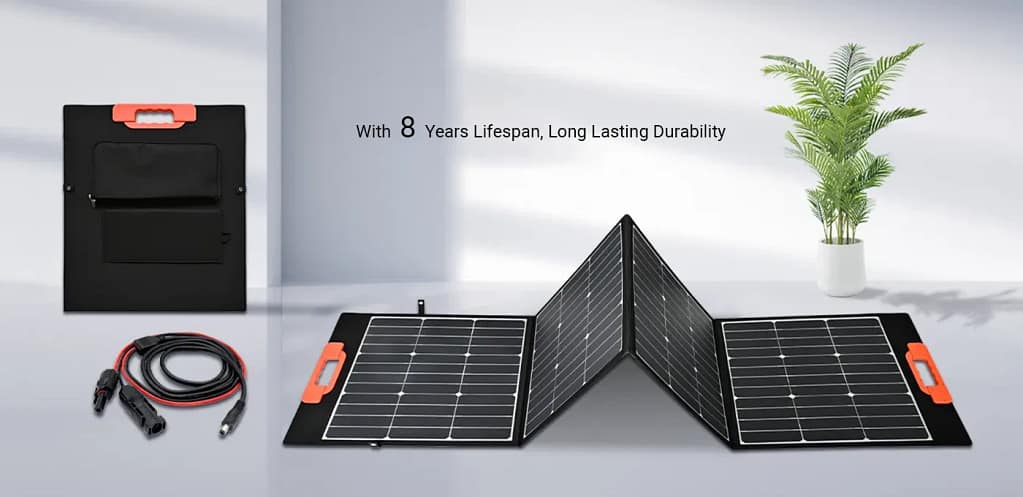

24 months warranty, 8 years service life
SUNGOLD – The solar portfolio ensures maximum flexibility to meet all your energy needs.
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
