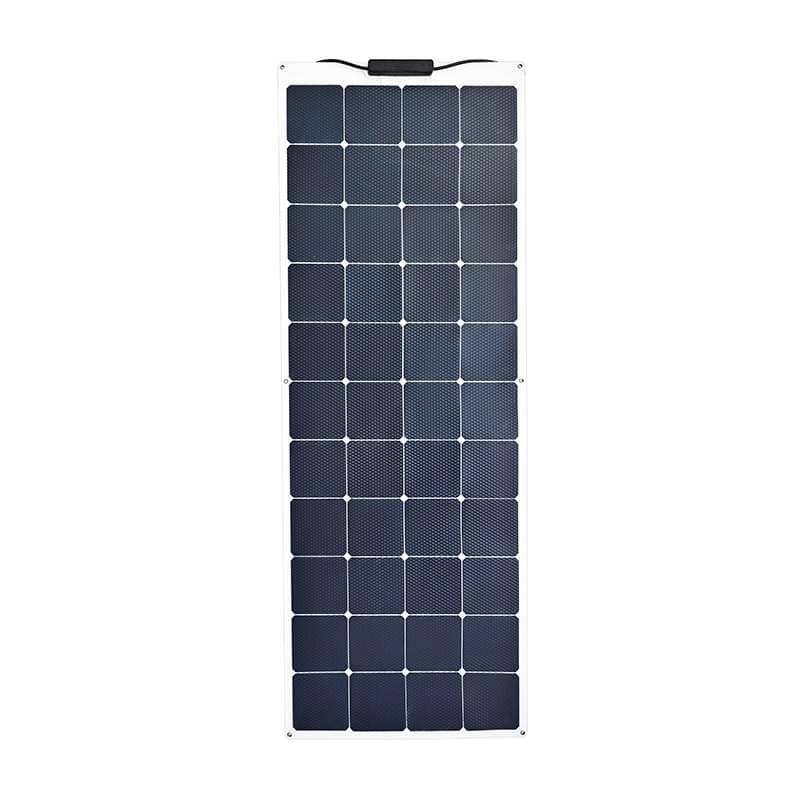

Sungold Solar Flexible Boat Solar Panel Kit SP-165W

Sungold Solar Flexible Boat Solar Panel Kit SP-165W

The Sungold SP series 165 watt solar panel features back-contact SunPower solar cells with efficiencies as high as 24.4%. The sunpower photovoltaic panels have light-shielding properties because each battery operates independently. Using ETFE materials imported from Japan, the 165 watt solar panel can withstand high temperatures of 242℃, and the light transmittance is over 95%. This means more power or shorter charging times, besides, it has excellent water resistance and is good boat solar panel kit.

Description

The SGM-FL-165w boat solar panel kit is Sungold’s breakthrough in lightweight sunpower pv module for marginal applications. They are lightweight and easy to install, especially on sailboats and campers. Featuring SunPower’s world-class back-contact solar cells that deliver up to 24.4% efficiency, which means more power from fewer panels, these solar panels are great space-saving boat solar panel kit.

Product Features

sp-165W Flexible Solar panel

165W Good low-light performance

Good low-light performance and high efficiency

Excellent low light performance, higher conversion efficiency and 24.4% efficiency level, which means 165 watt solar panel has higher power generation,and more savings than standard silicon panels of the same area, while most monocrystalline panels are only 17%- 19%. Importantly, don’t worry about charging at low temperatures.

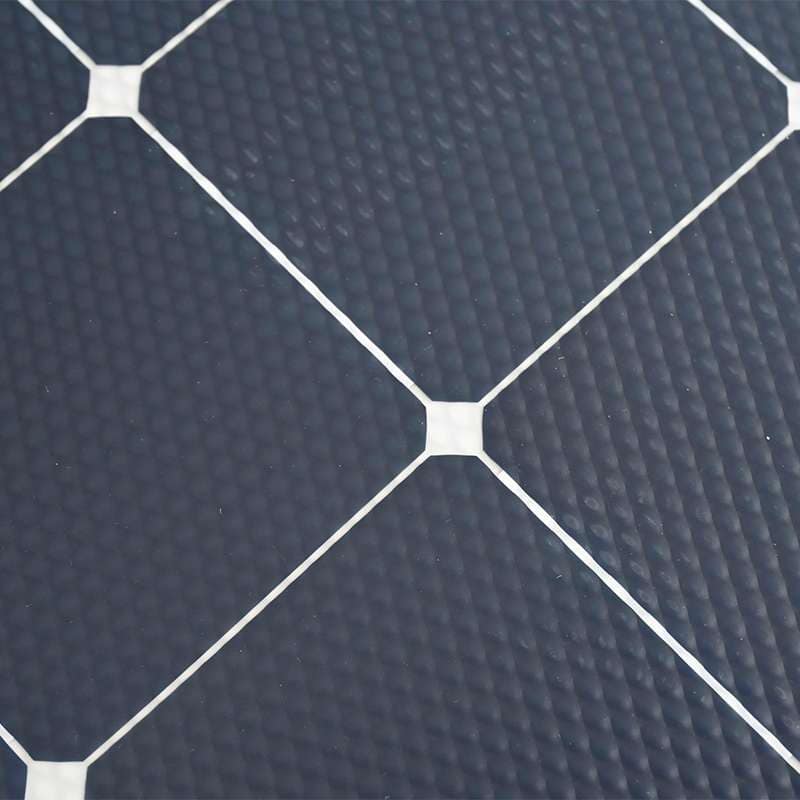

Back contact solar cells

Imported from the US, SunPower solar cells are constructed with a thick copper base that withstands harsh weather conditions, which makes these back contact cells resistant to cracking and corrosion when bent or exposed to moisture. The substrate is made of advanced lightweight polymer material to withstand high UV exposure.

165W high efficiency

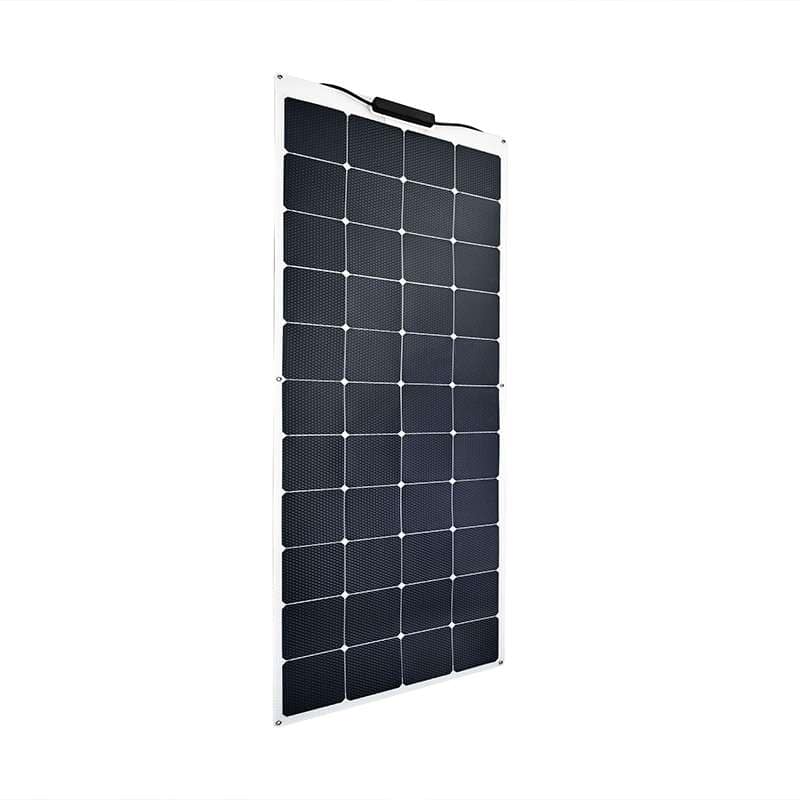

165W Thin, light and semi-flexible

Thin, light, flexible

The sunpower photovoltaic panels are lighter, and weigh only 2.86kg, and is 3mm thinness.The sunpower pv module is made of top-quality lightweight polymer material, and bend the panel up to 30 degrees. And it is best flexible solar panels for rv, boat, cabin, tent, or any other irregular surface.

Specifications

Sungold SP flexible 165 watt solar panel uses back contact SunPower solar cell, with solar panels output efficiency from 22.4% to 24%. Japan-imported ETFE materials allow the solar panels to resist high temperatures at 242℃, and their transmittance is over 95%. Moreover, it features excellent waterproof performance.

Maximum power(Pmax)Sungold  SP 165W
Open-circuit voltage(Voc)

32.1V

Voltage at Pmax(Vmp)

27.3V

Short-circuit current(Isc)

6.41A

Current at Pmax(Imp)

6.05A

Cells efficiency(%)24.40%
The maximum system voltage

45V DC(IEC)

Power temperature coefficient-0.32%/℃
Voltage temperature coefficient-1.8mv%/℃
Current temperature coefficient0.05%/℃
Output power tolerance±3%
Operating temperature-40~85℃
Weight

2.86kg

Size

1460*540*3mm

Warranty1 years

FAQ

Flexible solar panels are primarily used to charge solar-compatible batteries and can be used to power equipment and small appliances in off-grid situations such as camping, hunting, movie production, and power outages.

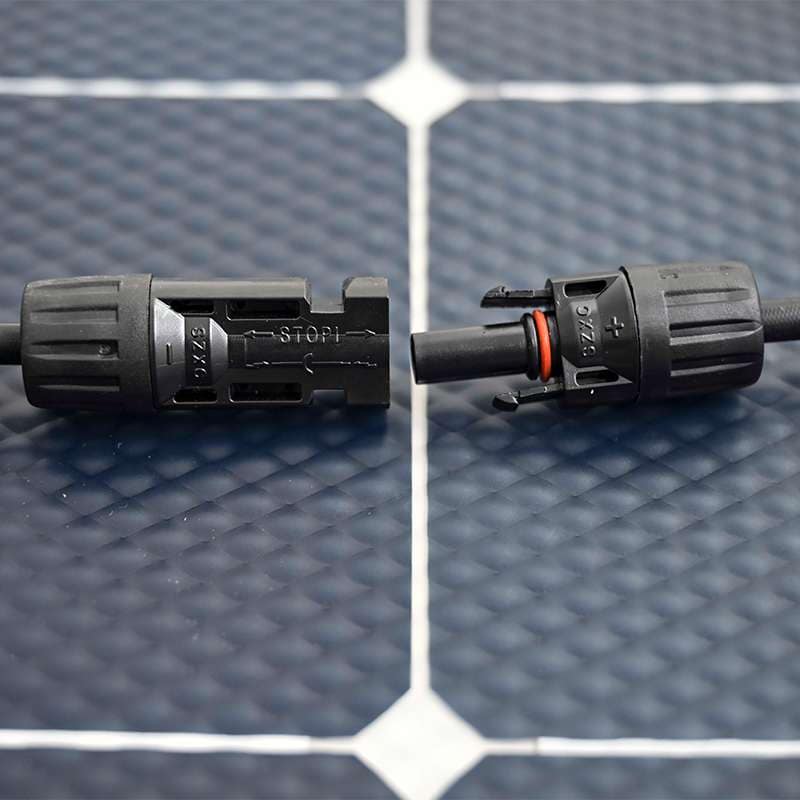

Many new RVs, campers, and travel trailers have solar receptacles that can power auxiliary batteries. You need to make sure the cables have MC4 connectors to be compatible with our flexible solar panels. If not, then you will need to buy an adapter.

Additionally, many DIY hobbyists or organizations modify 12V batteries, such as car batteries, for solar-compatible charging to power vehicles or other types of large devices. This may require purchasing additional equipment, including a charge controller that regulates battery and device voltages.

No, we do not recommend it. Periodic walking of flexible components can cause cells to crack, and while the cells remain electrically connected, cracks can still cause power losses beyond SP Solar Technologies’ control. Also, walking on the panel will void the warranty.

If you look into Flex panels, you’ll find that they have a much shorter lifespan than traditional rigid panels. 3-5 years seems to be typical. Delamination of the top protective surface has been one of the main contributors to panel failure.

Over the past 4-5 years, many Flex panel manufacturers have changed to a new top coat called ETFE to improve durability. Early signs are improved longevity. Sungold also ensures the stability of the product by changing the ETFE coating.

Ultimately proves to be the gold standard in flexible solar panels when it comes to aftermarket, so you don’t have to worry.

If the scorching phenomenon of the flexible series products is likely to be caused by the hot plate effect, be careful not to block a large area during use, it is easy to damage the solar cells products.

Sungold solar was established in 2008, and is a one of the chinese wholesale sunpower solar panels suppliers.

Sungold solar focuses on manufacturing solar panels and keeps innovating processes. The products use specially developed patented materials and the latest solar cell technology to achieve higher conversion efficiency.

Maximum power(Pmax)165W
Open-circuit voltage(Voc)32.1V
Voltage at Pmax(Vmp)27.3V
Short-circuit current(Isc)6.41A
Current at Pmax(Imp)6.05A
Cells efficiency(%)24.40%
The maximum system voltage45V DC(IEC)
Power temperature coefficient-0.32%/℃
Voltage temperature coefficient-1.8mv%/℃
Current temperature coefficient0.05%/℃
Output power tolerance±3%
Operating temperature-40~85℃
Weight2.86kg
Size1460*540*3mm
Warranty1 years

What is the application of SP series flexible boat solar panel kit?

Flexible solar panels are primarily used to charge solar-compatible batteries and can be used to power equipment and small appliances in off-grid situations such as camping, boating, yachts, and power outages.

Many new RVs, campers, and travel trailers have solar receptacles that can power auxiliary batteries. You need to make sure the cables have MC4 connectors to be compatible with our flexible solar panels. If not, then you will need to buy an adapter.

Additionally, many DIY hobbyists or organizations modify 12V batteries, such as car batteries, for solar-compatible charging to power vehicles or other types of large devices. This may require purchasing additional equipment, including a charge controller that regulates battery and device voltages.

Can Sungold SP flex solar panel walk?

No, we do not recommend it. Periodic walking of flexible components can cause cells to crack, and while the cells remain electrically connected, cracks can still cause power losses beyond SP Solar Technologies’ control. Also, walking on the panel will void the warranty.

Why the warranty is not long?

If you look into flex solar panels, you’ll find that they have a much shorter lifespan than traditional rigid panels. 3-5 years seems to be typical. Delamination of the top protective surface has been one of the main contributors to panel failure.

Over the past 4-5 years, many Flex panel manufacturers have changed to a new top coat called ETFE to improve durability. Early signs are improved longevity.

Sungold also ensures the stability of the product by changing the ETFE coating. Ultimately proves to be the gold standard in flexible solar panels when it comes to aftermarket, so you don’t have to worry.

After the user uses the flexible solar module, the surface will appear burnt, what is the reason:

If the scorching phenomenon of the flexible series products is likely to be caused by the hot plate effect, be careful not to block a large area during use, it is easy to damage the solar cells products.

Why can you trust sungold solar’s solar panel products?

Sungold solar was established in 2008, and is a one of the chinese wholesale sunpower solar panels suppliers.

Sungold solar focuses on manufacturing solar panels and keeps innovating processes. The products use specially developed patented materials and the latest solar cell technology to achieve higher conversion efficiency.
