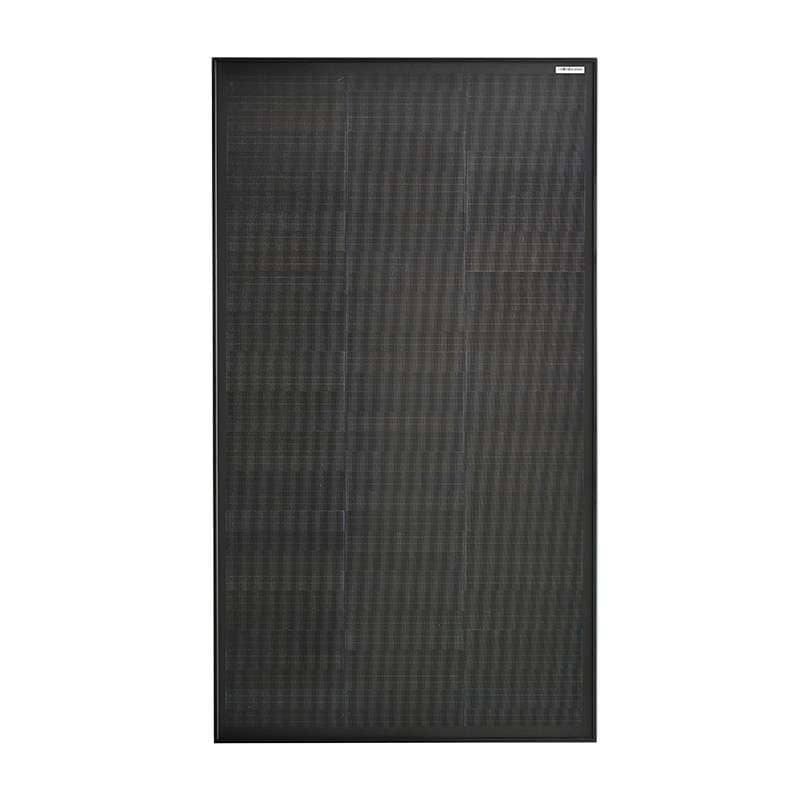

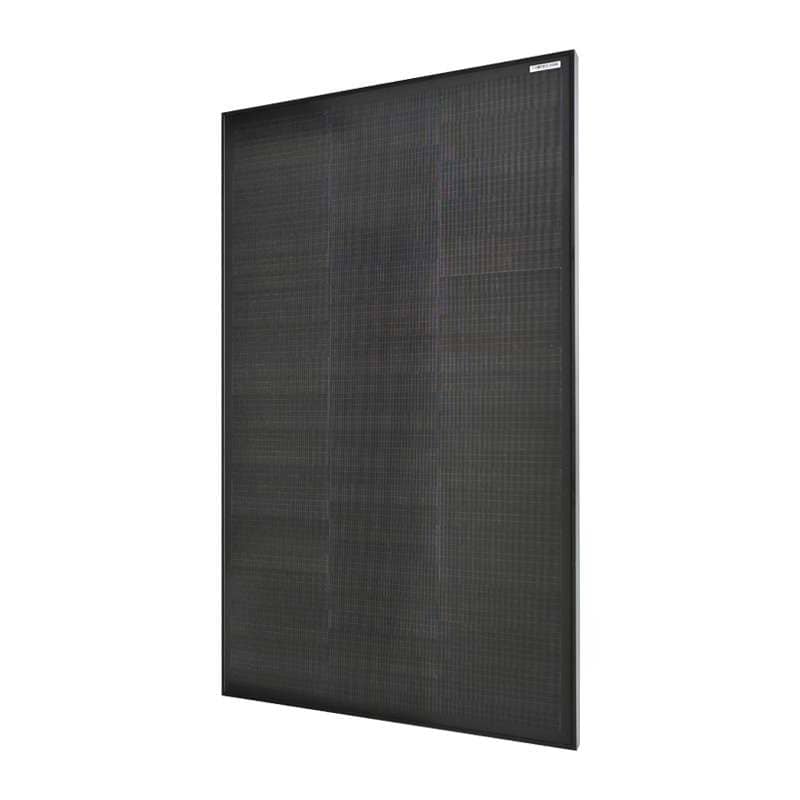

Sungold Solar Rigid 150 Watt Solar Panel SGD-M2-150W

Sungold Solar Rigid 150 Watt Solar Panel SGD-M2-150W

Power Output(W): 150W

Open-circuit voltage(Voc): 22.2V

Voltage at Pmax(Vmp): 18.8V

Short-circuit current(Isc):8.46A

Current at Pmax(Imp): 7.98A

Dimensions: 1150*680*35mm

Description

Sungold 150W monocrystalline silicon solar panel conversion efficiency up to 22%, have a longer lifespan.

To prevent solar cells from overheating, our solar panels are equipped with high-performance bypass diodes to minimize power drop due to shading.

In our Sungold solar panels, each sub-string consists of 36~40 connected cut cells in a way that ensures that there is no distance between cells.This innovative technique maximizes the space for cell array and significantly improves the panel’sefficiency compared to the conventional method.

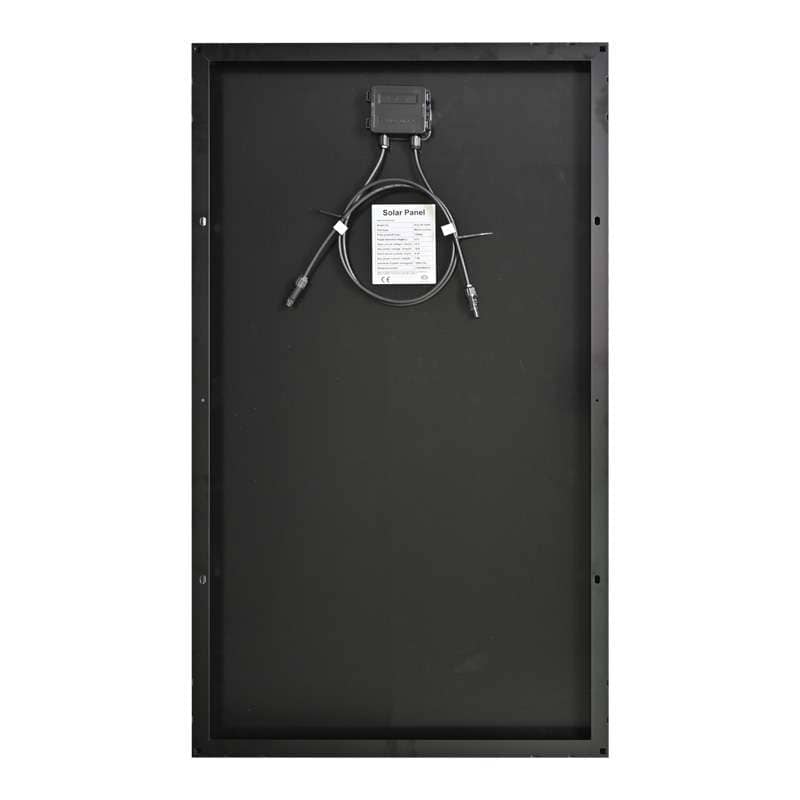

Pre-drilled holes on the back of the panel allow for quick installation and fixing, ideal for off-grid applications including RVs, roofs, cabins, yachts, etc.

Product Features

SGD-M2-150W Rigid Solar Panel

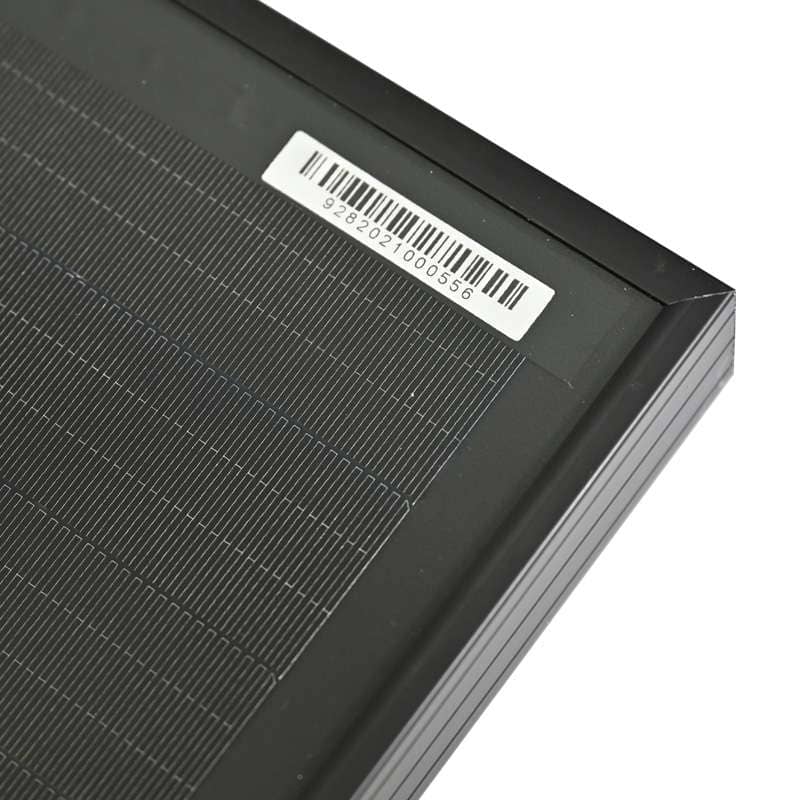

Shingled process

Shingle process

The shingle process uses the latest mono solar cells, using a special welding method to connect the cell. The area under the same power output is smaller, the front can be more strongly affected, and it is also one of the latest production processes in the solar industry.

.

Higher Efficiency

The SGD series 150w fixed solar panel uses the latest technology mono crystal silicon solar cells, using multi-layer cell technology to make it the highest quality, with a conversion efficiency of up to 22%.

High efficiency
Waterproof

Waterproof

SGD series photovoltaic solar panel is the most mature design. The connection between the glass panel and the aluminum frame is encapsulated with solar silica gel, which will not allow any water vapor to enter. SGD series 150 watt solar panel has IP67 waterproof grade. The whole product will not be affected by rain or water splashing. It can work outdoors for a long time without worrying about any quality problems.

Easy installation

Pre-drilled holes on the back of the solar panel allow rapid mounting and fixing. It is ideal for off-grid applications including RVs, rooftops, cabins, yachts, etc., and suitable for most solar panel fixing brackets on the market.

Easy installation

Specifications

Sungold SGD series photovoltaic solar panel has a rigid aluminium frame and sleek black cells that allow the panels to stand out from others in it’s market. With its unique cell design and durable build, it can be used in a variety of off-grid solar systems.

Maximum power(Pmax)150W
Open-circuit voltage(Voc)22.2V
Voltage at Pmax(Vmp)18.8V
Short-circuit current(Isc)8.46A
Current at Pmax(Imp)7.98A
Cells efficiency(%)22.00%
The maximum system voltage1000V DC(IEC)
Power temperature coefficient-0.38%/℃
Voltage temperature coefficient-0.36%/℃
Current temperature coefficient0.07%/℃
Output power tolerance±3%
Operating temperature-20~70℃
Weight8.38kg
Dimensions

1150*680*35mm

Warranty10 years

FAQ

SGD series photovoltaic solar panel is one of the most mature products. The weight of the product is relatively thick, but stable, worse-free use is greatly reducing the customer’s after-sales worries.

Conventional RV roof, roof off the grid system, traffic road peripheral products, field fixed use, etc.

Yes, you can, the USB power comes from the battery, and the controller will protect the battery from overcharging and overloading.

The low voltage disconnect is set in most of chargers / controllers, not on solar panel. My suggestion is not to charge yours battery without controller, you will damage your battery.

The panels are not affected by ice, snow, or rain, but you lose some efficiency in bad weather.

Sungold solar is one of the leading photovoltaic solar panel manufacturers in China. Sungold solar focuses on manufacturing solar panels and keeps innovating processes.

The products use specially developed patented materials and the latest solar cell technology to achieve higher conversion efficiency. According to the different needs of customers, we also provide customized services.

Maximum power(Pmax)150W
Open-circuit voltage(Voc)22.2V
Voltage at Pmax(Vmp)18.8V
Short-circuit current(Isc)8.46A
Current at Pmax(Imp)7.98A
Cells efficiency(%)22.00%
The maximum system voltage1000V DC(IEC)
Power temperature coefficient-0.38%/℃
Voltage temperature coefficient-0.36%/℃
Current temperature coefficient0.07%/℃
Output power tolerance±3%
Operating temperature-40~85℃
Weight8.38kg
Dimensions1150*680*35mm
Warranty10 years

1.Question:What are the advantages of SGD series 150 watt solar panel?

Answer: SGD series 150 Watt Solar Panel is one of the most mature products. The weight of the product is relatively thick, but stable and trouble-free use is greatly reducing the customer’s after-sales worries.

2.Question:Which places are best equipped with Sungold SGD series 150 Watt Solar Panel products?

Answer:  Conventional RV roof, roof off grid system, traffic road peripheral products, field fixed use, etc.

3.Question:Can i leave a usb battery pack (type c output) plugged in to the usb solar controller port for long periods, so it will constantly charge safely?

Answer: Yes, the USB power comes from the battery and the controller will protect the battery from overcharging and overdischarging.

4.Question:How to set low-voltage disconnect?

Answer: The low voltage disconnect is set in most of chargers / controllers, not on solar panel. My suggestion is not to charge yours battery without controller, you will damage your battery.

5.Question:I have solar generators with built in charge controllers. Can this solar panel be plugged directly into my solar generator cable?

Answer: I don’t think so. You need a MC4 adapter to fit your generator.

6.Question:Will these 150 watt solar panel products work in partial shade?

Answer: Yes. It reduces output dramatically as in all solar panels.

7.Question:Why can you trust Sungold Solar’s solar panel products?

Answer: Sungold solar is one of the leading photovoltaic solar panel manufacturers in China. Sungold solar focuses on manufacturing solar panels and keeps innovating processes.

The products use specially developed patented materials and the latest solar cell technology to achieve higher conversion efficiency. According to the different needs of customers, we also provide customized services.
