Shop Solar Kits BXF-N-D-100 watt solar panels

Shop Solar Kits BXF-N-D-100 watt solar panels

Model: BXF-N-D-4*25W
Brand: Sungold
Weight: 3.4kg
Cell Efficiency: 22.00%
Folding Size: 445*385*35mm
Unfolding Size: 1530*445*3mm
Solar cell: Mono
Warranty: 1 year

Description

Shop Solar Kits BXF-N-D-100 watt solar panels is the best solar charger that is durable, foldable and lightweight.Sungold BXF-N-100 watt solar panels consists of four 25W solar panels with a maximum power of 100W and an ultra-light weight of only 3.4kg, making it easy to carry. This BXF series portable solar panel can charge multiple small devices and is ideal for off-grid environments such as outdoor camping and for use during unexpected power outages.

Product Features

Waterproof and durable

Durable

High conversion rate

Excellent cost performance

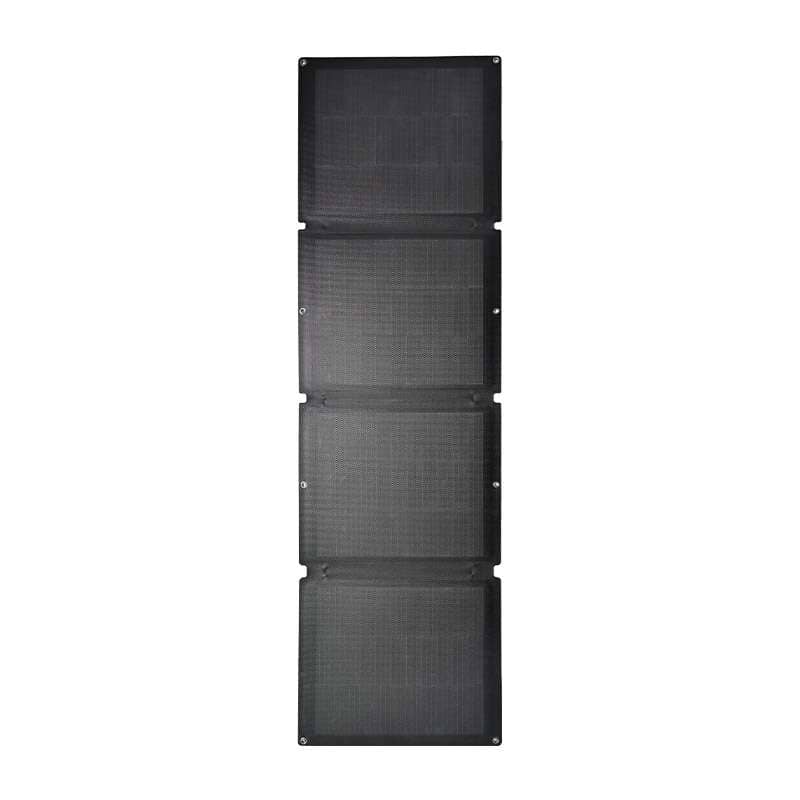

BXF-N-D-4*25W portable solar panel

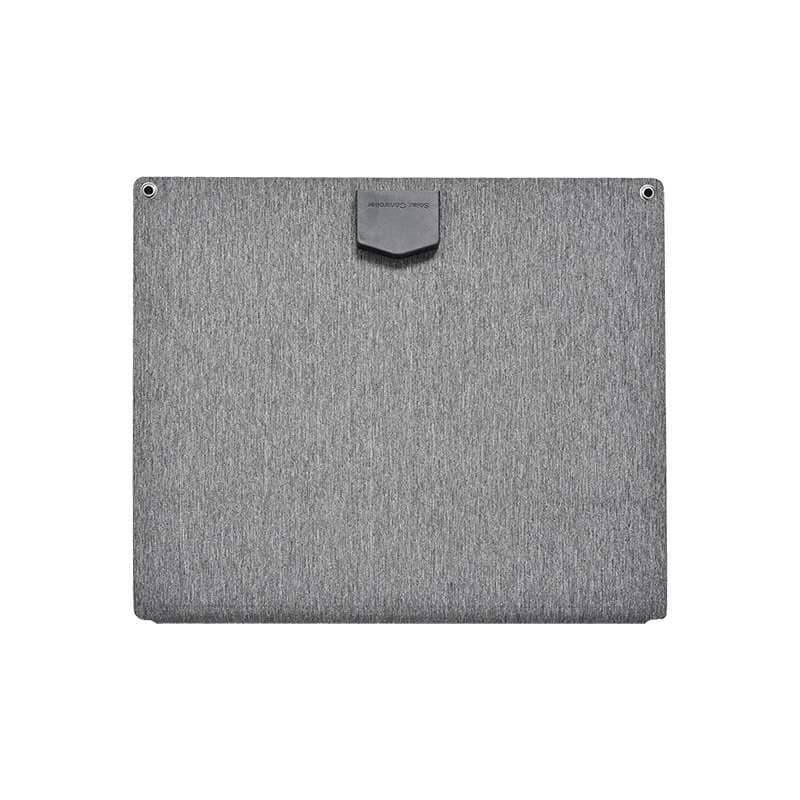

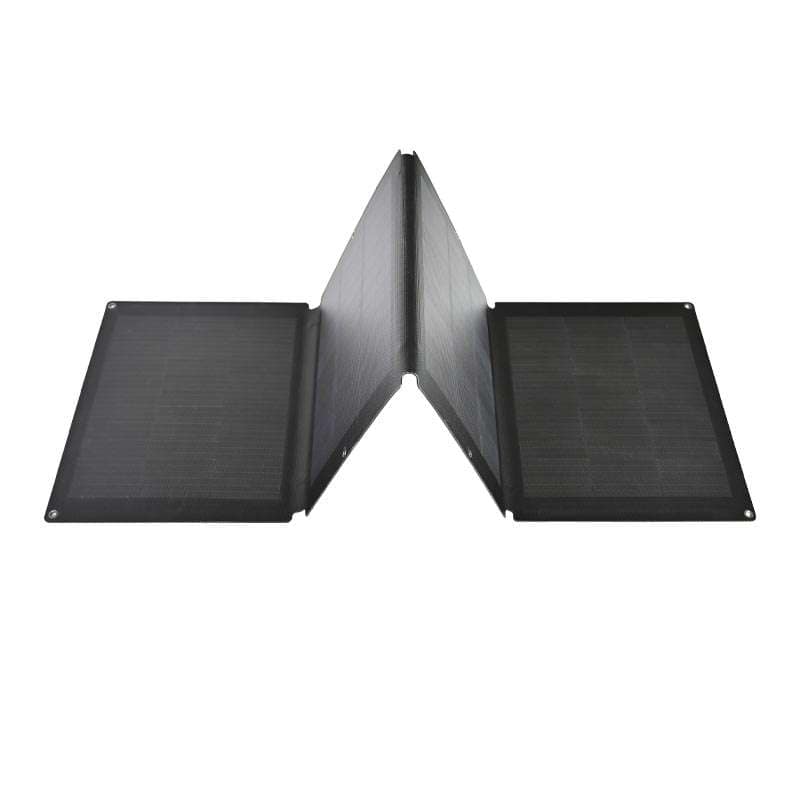

Foldable and waterproof

Waterproof and durable

This Sungold BXF series best portable solar charger is foldable and easier to carry when folded. It also features a waterproof design with an IP67 rating to protect against occasional rain and moisture fog. Keep the USB port dry while charging.

Durable and dirt resistant

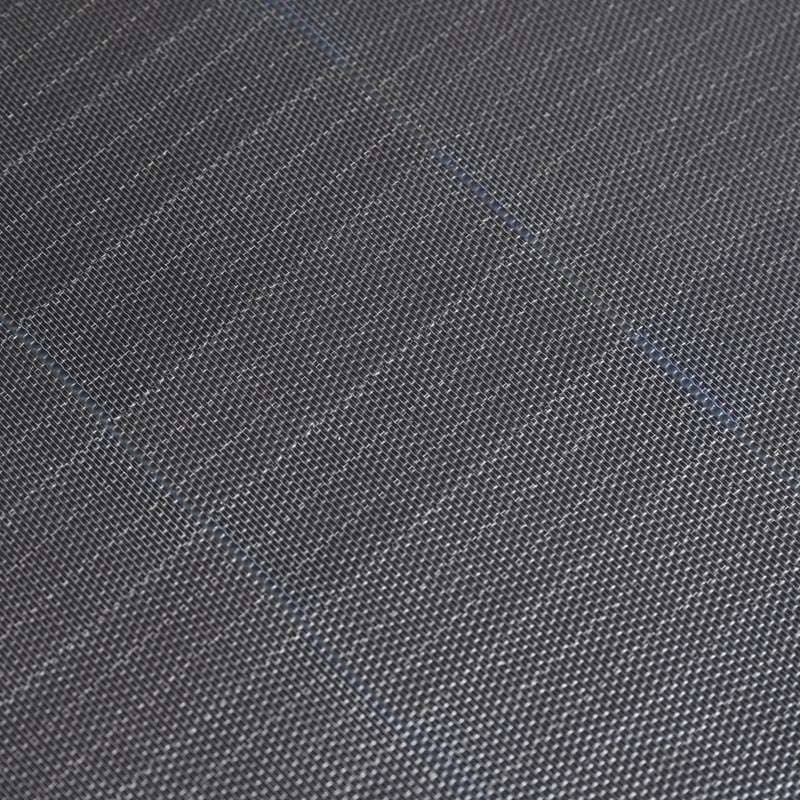

This Sungold BXF Series all-in-one portable solar panel is made of ETFE surface material. The well-made ETFE laminate is highly waterproof, flame retardant, dustproof and self-cleaning, making this portable solar charger virtually indestructible and extremely durable. This solar panel is suitable for a variety of outdoor environments and has a long life span.
Dirt-resistant
High conversion rate

High Conversion Rate

This Sungold BXF-N-D-4*25W solar panel consists of four 25W solar panels with high transmittance ETFE surface material and shingled solar cells 210 to achieve maximum efficiency with a conversion efficiency of 22.00%.

Excellent cost performance

The Sungold BXF series integrated portable solar panel has a highly reasonable cost-price structure that makes this product stand out in its class. It can be easily carried for travel/hiking/mountaineering and many other outdoor activities.
Excellent cost performance

Specifications

The Sungold BXF series is manufactured using a one-piece lamination process. The Sungold Portable Solar Panel BXF-N-D-4*25W is IP67 rated for water resistance, not only from rain but also from sand and dust. The portable solar charger is easy to carry and efficient, providing plenty of power for outdoor adventures.
Maximum power(Pmax)

BXF-N-D-4*25W

Open-circuit voltage(Voc)22.2V
Voltage at Pmax(Vmp)18.8V
Short-circuit current(Isc)5.64A
Current at Pmax(Imp)5.32A
Cells efficiency(%)22.00%
The maximum system voltage
Power temperature coefficient-0.38%/℃
Voltage temperature coefficient-0.36%/℃
Current temperature coefficient0.05%/℃
Output power tolerance±5%
Operating temperature-10~60℃
Weight3.4kg
Size1530*445*3mm
Warranty1 year

FAQ

Yes, our solar panel supports fast charging. If the solar panel is energized, there will be a red LED light. If there is no sunlight, the red light will go out. Since the output power varies with sunlight exposure, it is normal to have a flashing light sometimes.

We focus on outdoor and home power, you can use this BXF series portable solar panel in RV camping/fishing/off-road/hunting environments. If you are going camping, hiking, trekking, or picnicking, this BXF Series portable solar panel can power most of your electronic devices.

BXF series portable solar panel should face the sun directly, it is best to adjust the angle at any time. It is important to note that all unnecessary obstacles need to be removed and the sunlight should not be blocked, such as large trees as well as tree branches and leaves, which may block the direct sunlight from reaching the solar panel, and the solar panel’s operating efficiency will be affected by these obstacles.

Yes, it is reliable enough. It has an IP67 waterproof rating, and it can provide you with power safely and continuously.

We recommend that you connect your device to this solar charger in direct sunlight and without shade. It is not recommended to use portable solar panels in rainy and humid environments. This is because solar panels can only power your device quickly in full sunlight.

Maximum power(Pmax)BXF-N-D-4*25W
Open-circuit voltage(Voc)22.2V
Voltage at Pmax(Vmp)18.8V
Short-circuit current(Isc)5.64A
Current at Pmax(Imp)5.32A
Cells efficiency(%)22.00%
The maximum system voltage
Power temperature coefficient-0.38%/℃
Voltage temperature coefficient-0.36%/℃
Current temperature coefficient0.05%/℃
Output power tolerance±5%
Operating temperature-10~60℃
Weight3.4kg
Size1530*445*3mm
Warranty1 year

Does this solar charging phone charge fast or slow?
Yes, our solar panel supports fast charging. If the 100 watt solar panels is energized, there will be a red LED light. If there is no sunlight, the red light will go out. Since the output power varies with sunlight exposure, it is normal to have a flashing light sometimes.



Where is the best place to install the BXF series 100 watt solar panels?
We focus on outdoor and home power, you can use this BXF series 100 watt solar panels in RV camping/fishing/off-road/hunting environments. If you are going camping, hiking, trekking, or picnicking, this BXF Series portable solar panel can power most of your electronic devices.



What are the recommendations for using this Sungold BXF series 100 watt solar panels?
BXF series portable solar panel should face the sun directly, it is best to adjust the angle at any time. It is important to note that all unnecessary obstacles need to be removed and the sunlight should not be blocked, such as large trees as well as tree branches and leaves, which may block the direct sunlight from reaching the solar panel, and the solar panel’s operating efficiency will be affected by these obstacles.



Buy Solar Kit BXF-N-D-100 watt solar panels waterproof?
Yes, it is reliable enough. It has an IP67 waterproof rating, and it can provide you with power safely and continuously.



 What should I pay attention to before Shop Solar Kits with SUNGOLD??
We recommend that you connect your device to this solar charger in direct sunlight and without shade. It is not recommended to use portable solar panels in rainy and humid environments. This is because solar panels can only power your device quickly in full sunlight.
