Sungold RV Flexible Solar Panels TF-S-120W

Sungold RV Flexible Solar Panels TF-S-120W

TF-S-120w flexible solar panel kits for boats have passed the company’s long-term stepping test, especially people can step on the boat at will without affecting the power output. And the protection and stability of the 120 watt flexible solar panel have passed the verification. It also proves that the newly added patented material has excellent protection for the solar cells.



Description

TF-S-120w flexible solar panel uses SunPower cells with a conversion efficiency of up to 24%, which is very suitable for rv life. The products use special patented materials of Sundold, which have better protection for cells and absorption of impact force. It will strengthen and reduce the damage to the battery.

TF-S-120W flexible solar panel has excellent flexibility, uses ETFE surface material, and has excellent weather resistance, salt spray resistance, corrosion resistance, and aging resistance.

Product Features

TF-S-120W Flexible Solar panel

Exclusive patented material

Exclusive Patented Material

The TF-S-120w flexible solar panel uses the exclusive patented material of Sungold, combined with SunPower solar cells perfectly.This material has a great improvement in weather resistance, salt spray resistance, corrosion resistance, anti-aging and can be used for protection of the solar cells. The absorption of the impact force will be enhanced and the damage to the solar cell will be reduced.

Lighter And Thinner

The overall weight of the TF-S-120w flexible solar panel is only 2.08kg, which can significantly reduce the total weight of the carrier. Therefore, in the case that many other products cannot be used, 120 watt flexible solar panel can be used, for example, it can be hung on the wall for a long time.

lighter and thinner

Easy To Use

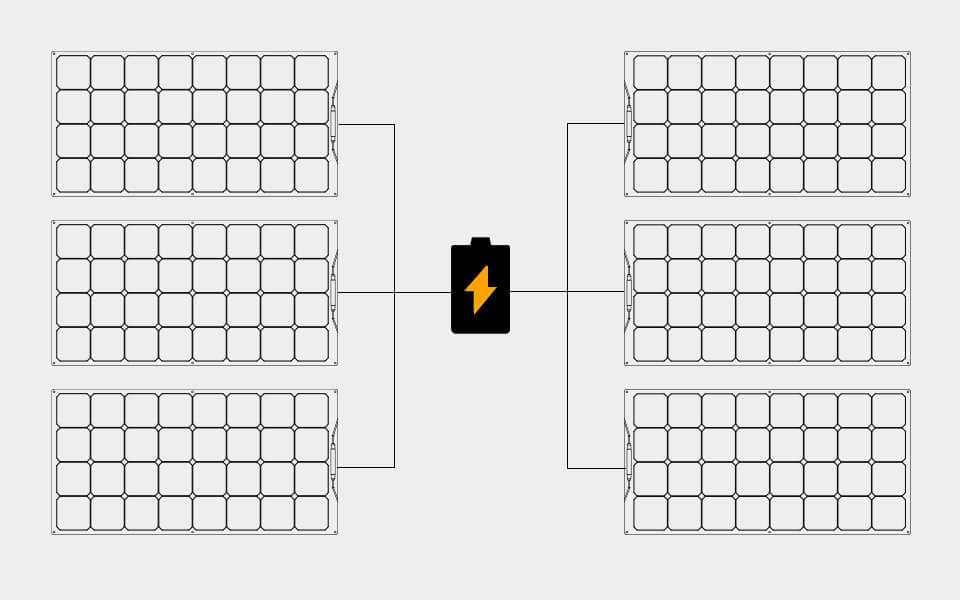

120W flexible sunpower solar panels have excellent design and complete power, so there is no need to make complicated connections. MC4 is a mature and safe connecting line. With Y-shaped connecting line, it can easily connect multiple panels in series and parallel.

High Conversion And Corrosion Resistance

TF-S-120w flexible solar panel uses SunPower cells with a conversion efficiency of up to 24%.ETFE laminated outer film provides TF series rv flexible solar panels with good weather resistance, resistance to salt spray, anti-corrosion and anti-aging, with good light transmittance.

High conversion and corrosion resistance

Specifications

TF-S-120W flexible solar panel utilizes sunpower solar cells with up to 24.40% conversion efficiency, which is flexible solar panel kits for boats.And it is suitable for RV, yachts, ship life.The absorption will be enhanced and the damage to the cell will be reduced.

Maximum power(Pmax)120W
Open-circuit voltage(Voc)23.4V
Voltage at Pmax(Vmp)19.8V
Short-circuit current(Isc)6.41A
Current at Pmax(Imp)6.05A
Cells efficiency(%)24.40%
The maximum system voltage200V DC(IEC)
Power temperature coefficient-0.32%/℃
Voltage temperature coefficient-1.8mv%/℃
Current temperature coefficient0.05%/℃
Output power tolerance±3%
Operating temperature-40~85℃
Weight2.08kg
Size1070*540*2mm
Warranty5 years

FAQ

 Yes, TF flexible solar panels are designed with patented materials for long-lasting durability. This solar panel can withstand unpredictable weather conditions.

 TF series flex solar panel specifications are obtained in a laboratory environment (near-perfect environment for solar panels to generate electricity). There are a number of factors that may undermine the group’s performance. Examples include humidity, air pollution, cloud cover and obstruction from the sun. There is a certain loss rate, ranging from 80%-85% of the power output.

Absolutely! I also have this on my travel trailer. The DC interface output is 18V, you may need a charge controller depending on what comes with your camper.

However, I’m sure the connector can be modified to fit your RV. Keep in mind the power rating and voltage of the panel, and whether it will properly fit your RV solar system DC to AC converter.

Yes, the TF series is designed with patented materials, combined with SunPower cells, and can be fully adapted to long-term walking after strict pedaling experiments. It will not cause cell rupture, and will not affect the warranty period.

Sungold solar is a Chinese manufacturer of solar panels.Sungold solar focuses on wholesale solar panel business and keeps innovating processes. The products use specially developed patented materials and the latest solar cell technology to achieve higher conversion efficiency.

Maximum power(Pmax)120W
Open-circuit voltage(Voc)23.4V
Voltage at Pmax(Vmp)19.8V
Short-circuit current(Isc)6.41A
Current at Pmax(Imp)6.05A
Cells efficiency(%)24.40%
The maximum system voltage200V DC(IEC)
Power temperature coefficient-0.32%/℃
Voltage temperature coefficient-1.8mv%/℃
Current temperature coefficient0.05%/℃
Output power tolerance±3%
Operating temperature-40~85℃
Weight2.08kg
Size1070*540*2mm
Warranty5 years

Will the solar panel still work if it is partly cloudy or overcast?

Yes, TF flexible solar panels are designed with patented materials for long-lasting durability. This solar panel can withstand unpredictable weather conditions.

Why does your 120W panel only provide 100W output?

TF flex solar panel specifications are obtained in a laboratory environment (near-perfect environment for solar panels to generate electricity). There are a number of factors that may undermine the group’s performance. Examples include humidity, air pollution, cloud cover and obstruction from the sun. There is a certain loss rate, ranging from 70%-80% of the power output.

Can this 120-watt  solar panel connect directly to the camper battery via an adapter?

Absolutely! I also have this on my travel trailer. The DC interface output is 18V and you may need a charge controller depending on what comes with your camper.

However, I’m sure the connectors can be modified to fit your RV. Keep in mind the wattage and voltage rating of the panel and whether it will fit properly into your RV solar system DC to AC converter.

Can TF flex solar panel walk?

Yes, the TF series flexible solar panel is designed with patented materials, combined with SunPower cells, and can be fully adapted to long-term walking after strict pedaling experiments. It will not cause cell rupture, and will not affect the warranty period.

Why can you trust sungold solar’s solar panel products?

Sungold solar is a Chinese manufacturer of solar panels. Sungold solar focuses on wholesale solar panel business and keeps innovating processes. The products use specially developed patented materials and the latest solar cell technology to achieve higher conversion efficiency.
