Sungold Portable Solar Panel SPC-TF-S-180W
Model: SPC-TF-S-180W
Brand: Sungold
Weight: 4.80kg
Cell Efficiency: 24.40%
Folding Size: 560*440*25mm
Unfold Size: 1975*560*4mm
Solar cell: SunPower
Warranty: 1 year
SUNGOLD SPC-S-4*45W Portable Folding Solar Panel is a lightweight, foldable design, high conversion efficiency solar charger for applications requiring a smaller footprint, using advanced lamination technology and durable ETFE &Diamond surface, all in one Chemical fabric sewing process, longer service life, become the most suitable for people with RVs, campers and off-grid adventure
This Sungold SPC-TF-S-180W portable solar panel features SunPower solar cells with a higher conversion efficiency of 24.40%. the Sungold camping solar panel achieves 98% light transmission, converting more solar energy into usable electricity.

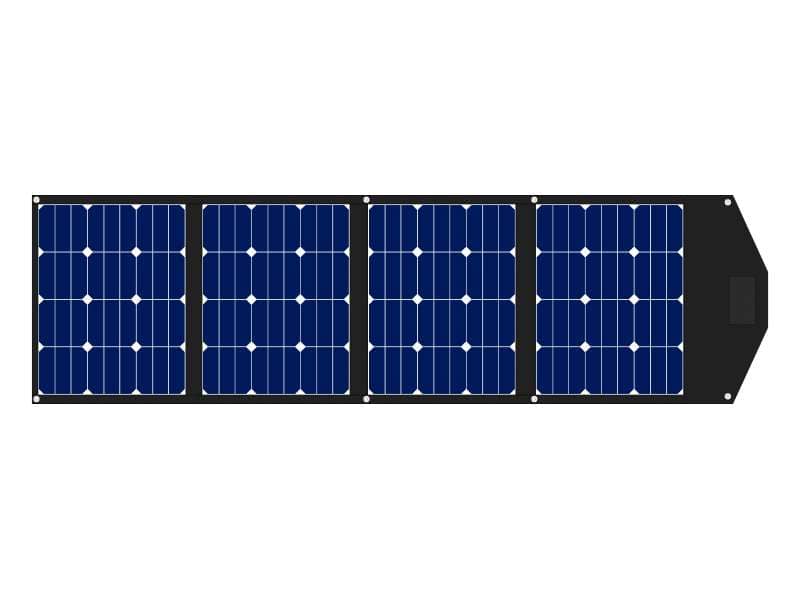

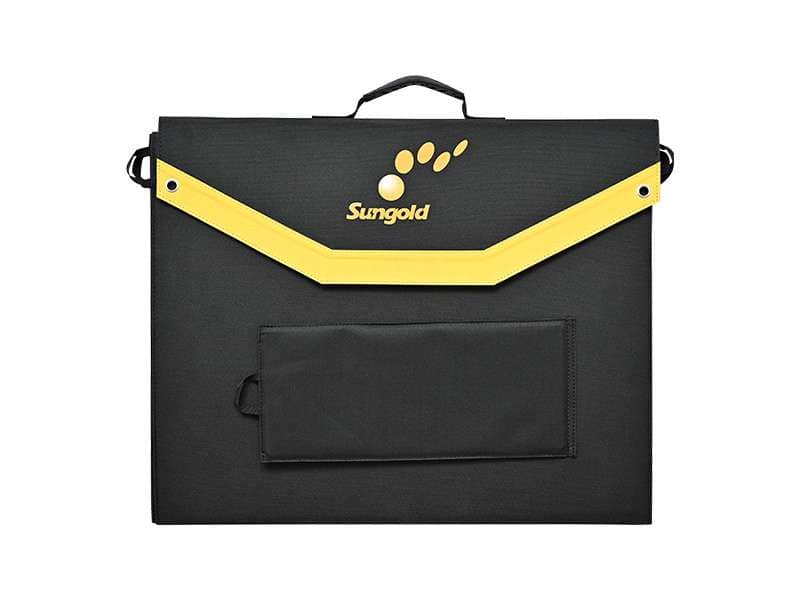

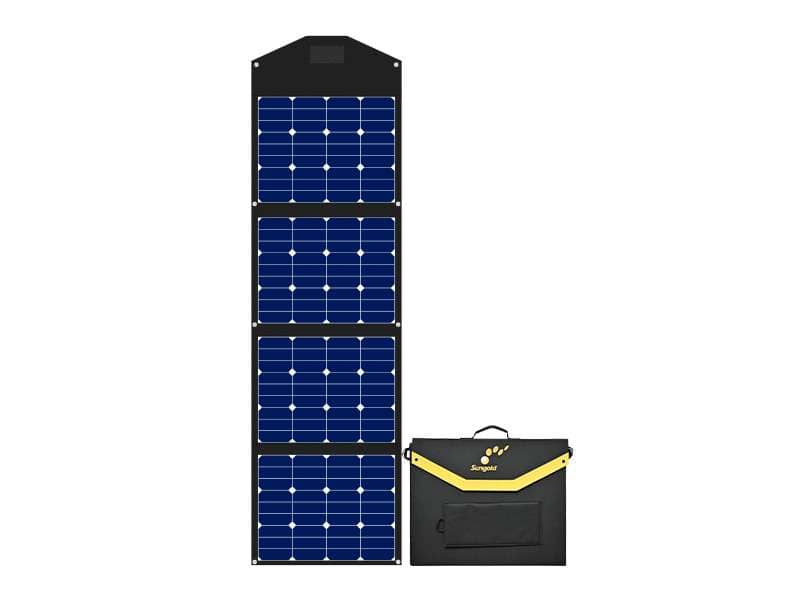

This Sungold SPC-TF-S-180W lightweight solar panel is powerful and weighs only 4.80kg. This solar panel is foldable, measuring approximately 1975*560*4mm when open. When folded, it is approximately 560*440*25mm with adjustable brackets and hanging holes for easy storage.
This Sungold SPC-TF-S-135W portable solar panel is made of ETFE surface material, which has better quality and good crack resistance, prolonging the service life of the solar panel and making it more durable and powerful.
This Sungold SPC-TF-S-180W solar charging kit is suitable for a variety of energy storage and is compatible with Jackery/Ecoflow/Anker/Rockpals/Blutti power stations, making it ideal for use in camping, outdoor hiking, adventure, and other off-grid environments.
Sungold SPC-TF-S-180W foldable solar panel uses SunPower solar cells and, with an ETFE surface to extend its life, has an attractive and durable surface. The solar panel’s adjustable bracket and metal reinforced hook holes help you to fold/fasten/hook anywhere.
| Maximum power(Pmax) | 180W |
| Open-circuit voltage(Voc) | 26.2V |
| Voltage at Pmax(Vmp) | 22.3V |
| Short-circuit current(Isc) | 8.56A |
| Current at Pmax(Imp) | 8.08A |
| Cells efficiency(%) | 24.40% |
| The maximum system voltage | 100V DC(IEC) |
| Power temperature coefficient | -0.27%/℃ |
| Voltage temperature coefficient | -0.236%/℃ |
| Current temperature coefficient | 0.058%/℃ |
| Output power tolerance | ±5% |
| Operating temperature | -10~60℃ |
| Weight | 4.80kg |
| Size | 1975*560*4mm |
| Warranty | 1 year |
The Sungold SPC-TF-S-180W was tested in an ideal laboratory. The output of a solar panel can be affected by a variety of factors such as unexpected weather (cold, cloudy, and rainy), the angle of the sun’s rays, and the absence of shadows.
Yes. Sungold SPC Series solar panels are compatible with most portable charging stations, including Jackery, Ecoflow, Anker, Rockpals, Blutti, and others.
Yes. Sungold SPC Series solar panels are IP65-rated waterproof, but please do not leave them in the rain or submerge them in water.
Thank you for your interest in the Sungold SPC Series portable solar panel. We offer a one-year warranty on this solar panel. If you have any problems using the product, you can contact us. We are always at your service.
Dear customer, this product does not require an additional controller. There are various connectors for this product to connect directly to the battery.
| Maximum power(Pmax) | 180W |
| Open-circuit voltage(Voc) | 26.2V |
| Voltage at Pmax(Vmp) | 22.3V |
| Short-circuit current(Isc) | 8.56A |
| Current at Pmax(Imp) | 8.08A |
| Cells efficiency(%) | 24.40% |
| The maximum system voltage | 100V DC(IEC) |
| Power temperature coefficient | -0.27%/℃ |
| Voltage temperature coefficient | -0.236%/℃ |
| Current temperature coefficient | 0.058%/℃ |
| Output power tolerance | ±5% |
| Operating temperature | -10~60℃ |
| Weight | 4.80kg |
| Size | 1975*560*4mm |
| Warranty | 1 year |
Why did the solar panel not reach the described 180W power?
The Sungold SPC-S-TF-180W was tested in an ideal laboratory. The output of a solar panel can be affected by a variety of factors such as unexpected weather (cold, cloudy, and rainy), the angle of the sun’s rays, and the absence of shadows.
Can it be used with other brands of power stations?
Yes. Sungold SPC Series solar panels are compatible with most portable charging stations, including Jackery, Ecoflow, Anker, Rockpals, Blutti, and others.
Is it waterproof?
Yes. Sungold SPC Series solar panels are IP65-rated waterproof, but please do not leave them in the rain or submerge them in water.
How long is the warranty for this solar panel?
Thank you for your interest in the Sungold SPC Series portable solar panel. We offer a two-year warranty on this solar panel. If you have any problems using the product, you can contact us. We are always at your service.
Does this solar panel come with or need a controller to connect the battery for solar charging?
Dear customer, this product does not require an additional controller. There are various connectors for this product to connect directly to the battery.
SUNGOLD -The solar product portfolio ensures maximum flexibility to meet all your energy needs.
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
