Sungold TF-M-55W Solar Panel
The TF-M-55w solar panel product has passed the company’s long-term trampling test and anti-hail test. The protection and stability of the product have passed the strict verification. It also proves that the newly added patented material is protective for the cells. You can use different cell custom designs, such as monocrystalline silicon, Sunpower cell and PERC Shingle-cell, which adapts to your different needs.
The 55W solar panel use monocrystalline cells with efficiency high up to 23%. It is a new product developed by Sungold solar. Combined with the current energy demand, it considers more application scope and quality assurance issues, and breaks through conventional materials. The design adopts our Sungold solar special patented materials, which better protects the solar cells, enhances the absorption of impact force, and reduces the damage to the solar cells. The flexible solar panels are very suitable for outdoor, RV, household, BIPV and other applications.
The TF series flexible solar panels use our Sungold solar exclusive patented material. This material has great improvement in weather resistance, salt spray resistance, corrosion resistance, and anti-aging, and can protect the cells more three-dimensionally. The absorption of impact force will be enhanced and the damage to the battery will be reduced.
The overall weight of the TF-M-55w slim flexible solar panel is only 1.2lb, which can significantly reduce the total weight of the carrier. Therefore, in the case that many other products cannot be used, the TF-M-55w flex solar panel can be used, for example, it can be long time to hang on the wall for use.

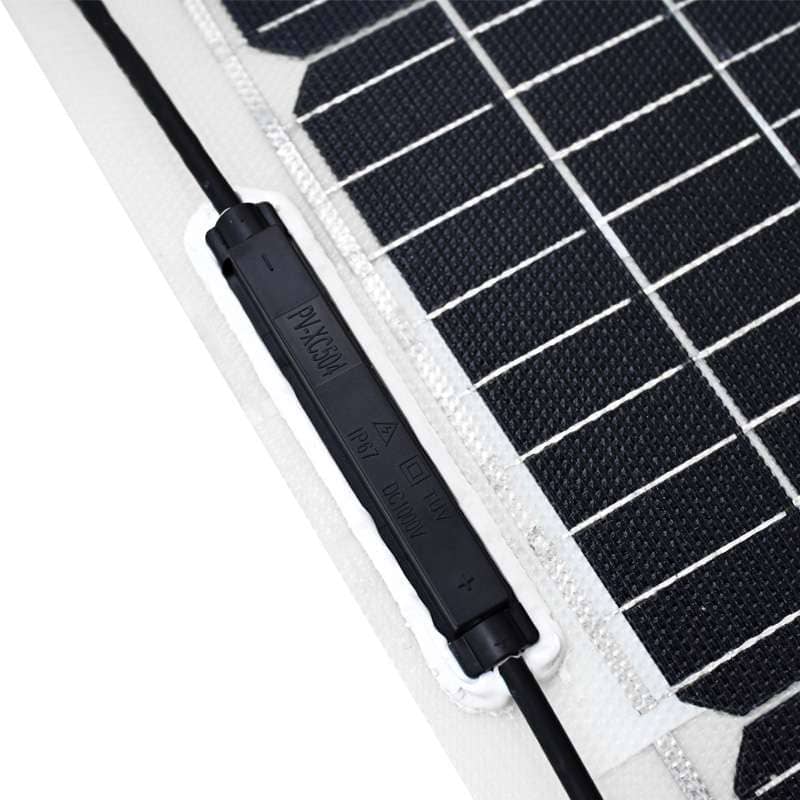

The TF-M-55W campervan solar panel kit has excellent design, comes with MC4 connector which is a mature and safe. With a Y-shaped connecting cable, multiple solar modules can be easily connected in series or parallel.
TF series flexible solar panels use the latest technology monocrystalline silicon solar cells, using multi-layer laminating technology to make it the highest quality. And the solar panel conversion efficiency is up to 23%. ETFE coating provides flexibe solar panels with good weather resistance ,salt resistance, corrosion resistance and anti-aging, with good light transmittance.
TF-M-55w flex solar panel uses monocrystalline cells with efficiency high up to 23%.It is very suitable for outdoor, RV,BIPV and other applications. The flexible solar panels use patented materials specially developed by Sungold Solar, and the products are of high quality.
| Maximum power(Pmax) | 55W |
| Open-circuit voltage(Voc) | 23.4V |
| Voltage at Pmax(Vmp) | 19.8V |
| Short-circuit current(Isc) | 2.94A |
| Current at Pmax(Imp) | 2.77A |
| Cells efficiency(%) | 22.60% |
| The maximum system voltage | 600V DC(IEC) |
| Power temperature coefficient | -0.38%/℃ |
| Voltage temperature coefficient | -0.36%/℃ |
| Current temperature coefficient | 0.07%/℃ |
| Output power tolerance | ±3% |
| Operating temperature | -40~85℃ |
| Weight | 1.13kg |
| Size | 580*540*2mm |
| Warranty | 5 years |
Yes, TF flexible solar panels are designed with patented materials for long-lasting durability. This solar panel can withstand unpredictable weather conditions.
TF series flex solar panel specifications are obtained in a laboratory environment (near-perfect environment for solar panels to generate electricity). There are a number of factors that may undermine the group’s performance. Examples include humidity, air pollution, cloud cover and obstruction from the sun. There is a certain loss rate, ranging from 70%-80% of the power output
Absolutely! I also have this on my travel trailer. The DC interface output is 18V, you may need a charge controller depending on what comes with your camper.
However, I’m sure the connector can be modified to fit your RV. Keep in mind the power rating and voltage of the panel, and whether it will properly fit your RV solar system DC to AC converter.
Yes, the TF series is designed with patented materials, combined with SunPower cells, and can be fully adapted to long-term walking after strict pedaling experiments. It will not cause cell rupture, and will not affect the warranty period.
Sungold solar is a Chinese manufacturer of solar panels. Sungold solar focuses on manufacturing solar panels and keeps innovating processes. The products use specially developed patented materials and the latest solar cell technology to achieve higher conversion efficiency.
| Maximum power(Pmax) | 55W |
| Open-circuit voltage(Voc) | 23.4V |
| Voltage at Pmax(Vmp) | 19.8V |
| Short-circuit current(Isc) | 2.94A |
| Current at Pmax(Imp) | 2.77A |
| Cells efficiency(%) | 22.60% |
| The maximum system voltage | 600V DC(IEC) |
| Power temperature coefficient | -0.38%/℃ |
| Voltage temperature coefficient | -0.36%/℃ |
| Current temperature coefficient | 0.07%/℃ |
| Output power tolerance | ±3% |
| Operating temperature | -40~85℃ |
| Weight | 1.13kg |
| Size | 580*540*2mm |
| Warranty | 5 years |
Will the flexible solar panels still work if it is partly cloudy or overcast?
Yes, TF flexible solar panels are designed with patented materials for long-lasting durability. This solar panel can withstand unpredictable weather conditions.
Why does your 55W solar panel only provide 35W output?
TF series flexible solar panels specifications are obtained in a laboratory environment (near-perfect environment for solar panels to generate electricity). There are a number of factors that may undermine the group’s performance.
Examples include humidity, air pollution, cloud cover and obstruction from the sun. There is a certain loss rate, ranging from 70%-80% of the power output
Can this 55w solar panel connect directly to the camper battery via an adapter?
Absolutely! I also have this on my travel trailer. The DC interface output is 18V and you may need a charge controller depending on what comes with your camper.
However, I’m sure the connectors can be modified to fit your RV. Keep in mind the wattage and voltage rating of the panel and whether it will fit properly into your RV solar system DC to AC converter.
Can TF series flex solar panel walk?
Yes, the TF series is designed with patented materials, combined with SunPower cells, and can be fully adapted to long-term walking after strict pedaling experiments. It will not cause cell rupture, and will not affect the warranty period.
Why can you trust sungold solar’s solar panel products?
Sungold solar is a Chinese manufacturer of solar panels.Sungold solar focuses on manufacturing solar panels and keeps innovating processes. The products use specially developed patented materials and the latest solar cell technology to achieve higher conversion efficiency.
SUNGOLD -The solar product portfolio ensures maximum flexibility to meet all your energy needs.
