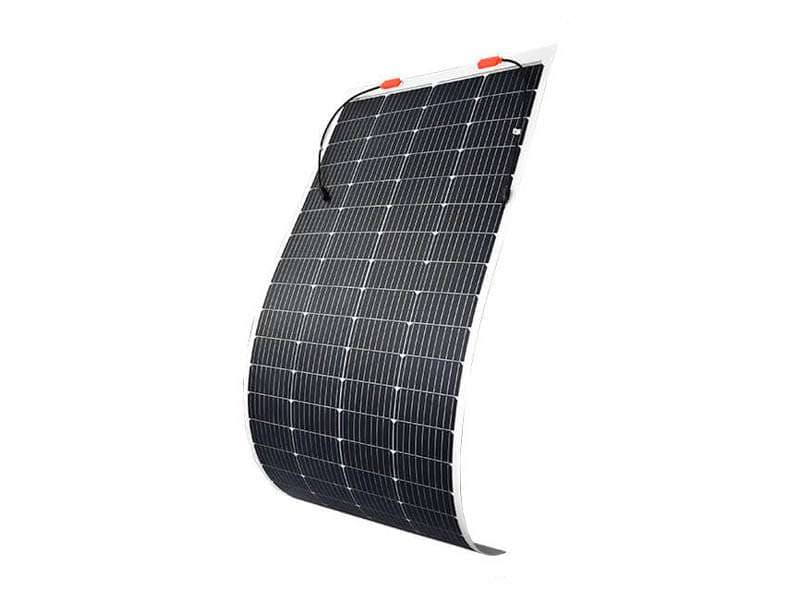

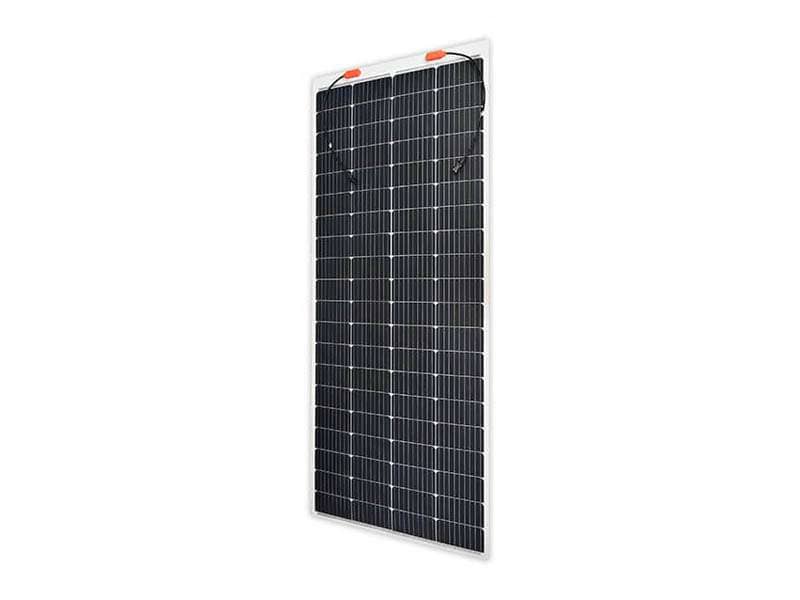

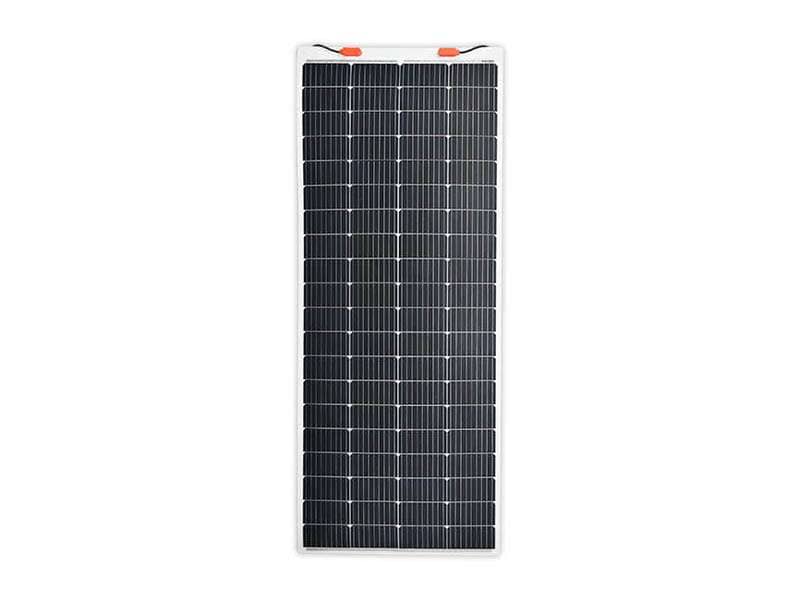

Sungold bendable flexible solar panel TF-M-245W
The TF-M-245w boat flexible solar panels product has passed the company’s long-term trampling test and anti-hail test. The protection and stability of the product have passed the strict verification. It also proves that the newly added patented material is protective for the cells. You can use different cell custom designs, such as monocrystalline silicon, Sunpower cell and PERC Shingle-cell, which adapts to your different needs.
The 245W flexible solar panels use monocrystalline cells with efficiency high up to 22.80%. It is a new product developed by Sungold solar. Combined with the current energy demand, it considers more application scope and quality assurance issues, and breaks through conventional materials. The design adopts our Sungold solar special patented materials, which better protects the solar cells, enhances the absorption of impact force, and reduces the damage to the solar cells. The flexible solar panels are very suitable for outdoor, RV, household, BIPV and other applications.
The TF-M-245w flex solar panel uses the exclusive patented material of Sungold solar. This material has great improvement in weather resistance, salt spray resistance, corrosion resistance and aging resistance. The absorption of impact force will be enhanced and the damage to the battery will be reduced.
The overall weight of the TF-M-245w flexible solar panel is only 9.99 lb, which can significantly reduce the total weight of the carrier. Therefore, in the case that many other products cannot be used, TF-M-245w solar flexible panels can be used, for example, they can be hung on the wall for a long time.
Easy to connect：TF series flexible solar panels on boat have excellent design and complete power, so there is no need to make complicated connections. MC4 is a mature and safe connecting line. With Y-shaped connecting line, multiple panels can be easily connected in series and parallel.
Easy to install: Just need backing glue to stick the solar panel on the top of the RV. Once fixed, the flexible pv solar panels will not loosen due to the movement of the RV.
TF-M-245W flexible solar panel uses the latest technology monocrystalline silicon solar cells, using multi-layer cell technology to make it the highest quality. Flexible solar panel efficiency is up to 22.80%. ETFE laminated outer film provides solar panels with good weather resistance, salt spray resistance, corrosion resistance, anti-aging and good light transmittance.
TF series 245W best flexible solar panels marine use monocrystalline solar cells with a conversion efficiency of up to 22.80%, which is very suitable for marine life.
| Maximum power(Pmax) | 245W |
| Open-circuit voltage(Voc) | 25.9V |
| Voltage at Pmax(Vmp) | 22.0V |
| Short-circuit current(Isc) | 12.03A |
| Current at Pmax(Imp) | 12.03A |
| Cells efficiency(%) | 22.80% |
| The maximum system voltage | 600V DC(IEC) |
| Power temperature coefficient | -0.38%/℃ |
| Voltage temperature coefficient | -0.36%/℃ |
| Current temperature coefficient | 0.07%/℃ |
| Output power tolerance | ±3% |
| Operating temperature | -40~85℃ |
| Weight | 4.57kg |
| Size | 1780*710*2mm |
| Warranty | 5 years |
Yes, TF flexible solar panels are designed with patented materials for long-lasting durability. This solar panel can withstand unpredictable weather conditions.
TF series solar panel specifications are obtained in a laboratory environment (near-perfect environment for solar panels to generate electricity). There are a number of factors that may undermine the group’s performance.
Examples include humidity, air pollution, cloud cover and obstruction from the sun. There is a certain loss rate, ranging from 70%-80% of the power output
Absolutely! I also have this on my travel trailer. The DC interface output is 18V and you may need a charge controller depending on what comes with your camper.
However, I’m sure the connectors can be modified to fit your RV. Keep in mind the wattage and voltage rating of the panel and whether it will fit properly into your RV solar system DC to AC converter.
Yes, the TF series is designed with patented materials, combined with SunPower cells, and can be fully adapted to long-term walking after strict pedaling experiments. It will not cause cell rupture, and will not affect the warranty period.
Sungold solar was established in 2008, and is a one of the leading chinese solar panel suppliers.
Sungold solar focuses on flexible solar panels wholesale business and keeps innovating processes. The products use specially developed patented materials and the latest solar cell technology to achieve higher conversion efficiency.
| Maximum power(Pmax) | 245W |
| Open-circuit voltage(Voc) | 25.9V |
| Voltage at Pmax(Vmp) | 22.0V |
| Short-circuit current(Isc) | 12.03A |
| Current at Pmax(Imp) | 11.14A |
| Cells efficiency(%) | 22.80% |
| The maximum system voltage | 600V DC(IEC) |
| Power temperature coefficient | -0.38%/℃ |
| Voltage temperature coefficient | -0.36%/℃ |
| Current temperature coefficient | 0.07%/℃ |
| Output power tolerance | ±3% |
| Operating temperature | -40~85℃ |
| Weight | 4.53kg |
| Size | 1780*710*2mm |
| Warranty | 5 years |
Will the flexible solar panels still work if it is partly cloudy or overcast?
Yes, TF flexible solar panels are designed with patented materials for long-lasting durability. This solar panel can withstand unpredictable weather conditions.
Why does your 245W panel only provide 230W output?
TF series flexible solar panels specifications are obtained in a laboratory environment (near-perfect environment for solar panels to generate electricity). There are a number of factors that may undermine the group’s performance.
Examples include humidity, air pollution, cloud cover and obstruction from the sun. There is a certain loss rate, ranging from 70%-80% of the power output
Can this 245-watt solar panel connect directly to the camper battery via an adapter?
Absolutely! I also have this on my travel trailer. The DC interface output is 18V and you may need a charge controller depending on what comes with your camper.
However, I’m sure the connectors can be modified to fit your RV. Keep in mind the wattage and voltage rating of the panel and whether it will fit properly into your RV solar system DC to AC converter.
Can TF series flex solar panel walk?
Yes, the TF series is designed with patented materials, combined with SunPower cells, and can be fully adapted to long-term walking after strict pedaling experiments. It will not cause cell rupture, and will not affect the warranty period.
Why can you trust sungold solar’s solar panel products?
Sungold solar is a Chinese manufacturer of solar panels.Sungold solar focuses on manufacturing solar panels and keeps innovating processes. The products use specially developed patented materials and the latest solar cell technology to achieve higher conversion efficiency.
