Sungold HP-D-200W Solar Panel Portable
Sungold Hi-Power Series 200w solar panel is a high-efficiency, foldable solar panel. Hi-Power Series 200 watt solar panels is very light at 5.88kg and you can easily carry it with the help of the handle. It adopts PERC shingled solar cells, which makes solar panels higher conversion efficiency. Hi-Power Series 200w solar panels is suitable for high-power application scenarios such as off-grid homes, RVs, commercial vehicles, boats, outdoor camping, and outdoor emergencies.
The Hi-Power series 200w solar panel use PERC shingled-cell technology, which can optimize the module structure, realize the zero-to-cell spacing between cells, and effectively increase the light-receiving area of the module. More cells can be encapsulated in the same area, thereby improving the conversion efficiency of photovoltaic modules. The conversion efficiency can be as high as 22%.

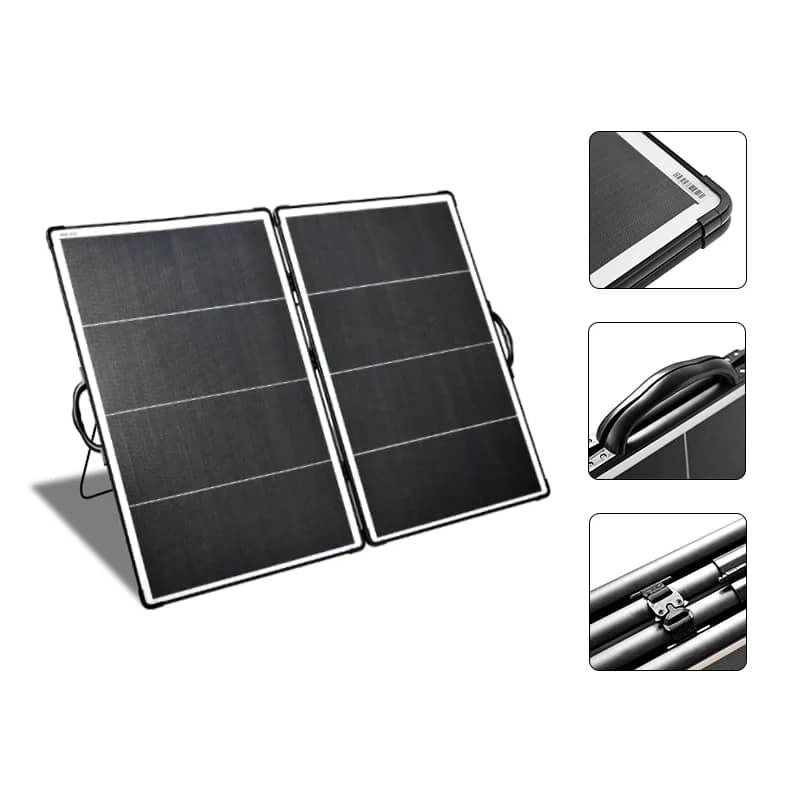

The overall weight of the Hi-Power 200w solar panels is very light, only 5.88kg. It is a foldable design, and the two panels are connected by a folding hinge for easy storage. At the same time, it is equipped with a handle, with the help of the handle, you can carry it with you. As long as there is sunlight, electricity can be generated anywhere.
Hi-Power 200W portable solar panels are equipped with 2 brackets, which can be firmly placed on any ground, and the installation is very convenient. With just a few seconds of setup, you can use sunlight to generate electricity. Charging is very fast.

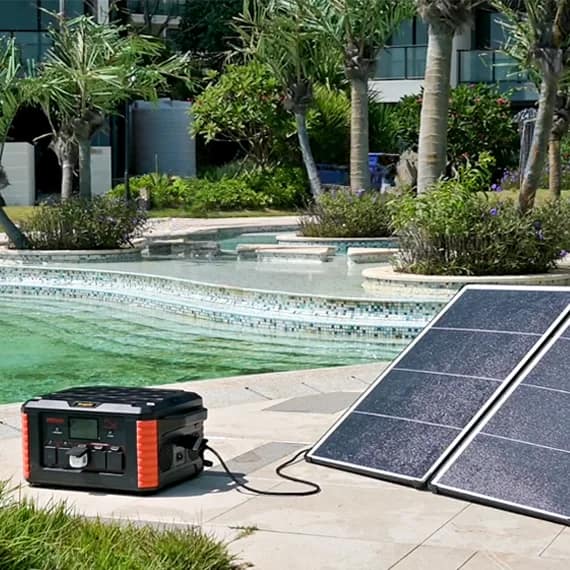

The surface of the RV portable solar panels is covered with ETFE material, which is splash-proof. If you use the MC4 connector, the waterproof level can reach IP67. The whole product can be completely immersed in water without affecting the work of the product.

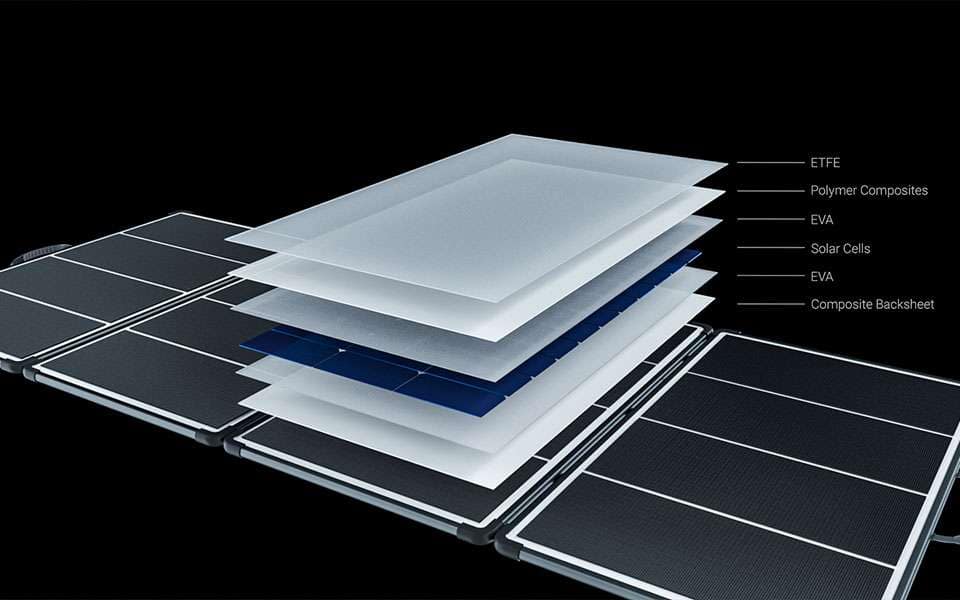

The Sungold 200W Solar Panel HP-D has a solar conversion efficiency of up to 22% – fast to charging freedom.The ETFE laminated surface material prolongs its service life and the matching bracket is easily adjustable to ensure optimal absorption of sunlight, making it the perfect power source for camping, RV, and marinas. It is portable, foldable and instantly connects to a portable power station, making it the ideal off-grid solar power source.
Sungold 200W solar panel excels in outstanding conversion efficiency, efficiently generating 1,000Wh of electricity in 5 hours of direct sunlight. This outstanding performance is due to the adjustable mounting, the use of monocrystalline silicon solar cells and the state-of-the-art PERC shingled cell technology, which allows the solar panel to reach an efficiency of up to 22%.
The Sungold 200 Watt Solar Panel stands out for its excellent portability and ease of use. Featuring a foldable design, it makes it very convenient to transport. In addition, it is compact and lightweight, making it perfect for carrying during outdoor activities. In just a few seconds, you can unfold and install the solar panel, then connect it to a power station for an instant and convenient supply of electricity. This convenient design allows you to easily access power wherever you are.

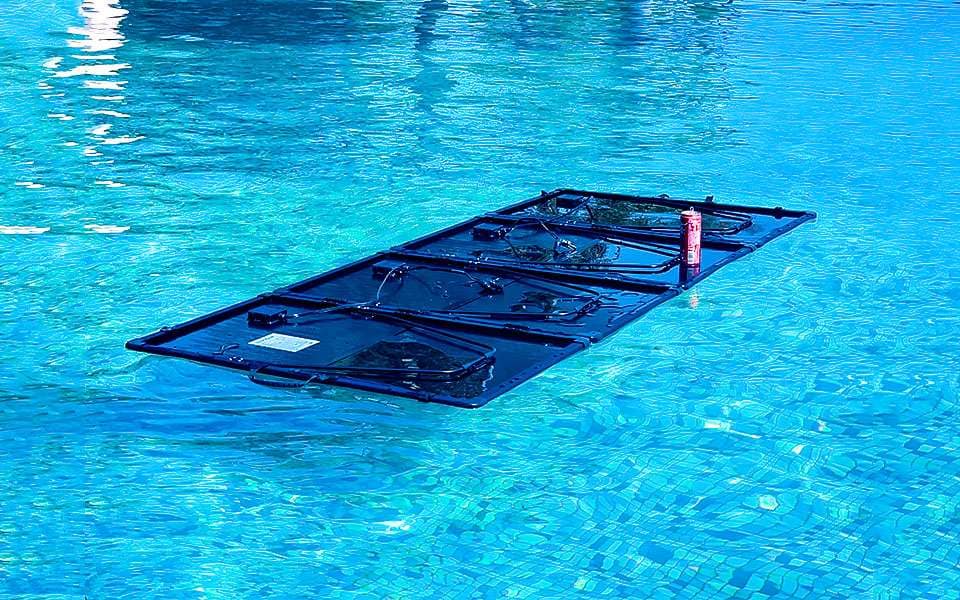

The 200w solar panel is covered with ETFE, a water-resistant material, and is splash-proof. With the MC4 connector, it can reach IP67 waterproof standard, which means the whole product can be completely submerged in water without affecting the normal operation of the product. This high level of water resistance makes the RV Portable Solar Panel suitable for a variety of outdoor activities and water activities such as open air camping and sailing trips.
The HP-D-200 watt solar panels adopts patented materials, new technology, and the service life of solar panels is longer. You can lift this foldable solar panel with only one hand. It is very light and portable. It is an indispensable solar module for outdoor applications.
| Maximum power(Pmax) | 200W |
| Open-circuit voltage(Voc) | 21.5V |
| Voltage at Pmax(Vmp) | 18.2V |
| Short-circuit current(Isc) | 11.65A |
| Current at Pmax(Imp) | 10.99A |
| Cells efficiency(%) | 22.00% |
| The maximum system voltage | 100V DC(IEC) |
| Power temperature coefficient | -0.38%/℃ |
| Voltage temperature coefficient | -0.36%/℃ |
| Current temperature coefficient | 0.07%/℃ |
| Output power tolerance | ±3% |
| Operating temperature | -20~70℃ |
| Weight | 5.88kg |
| Unfolding size | 1180*900*25mm |
| Warranty | 5 years |
This Hi-Power series 200w solar panel are designed to power the outdoors and nursing homes, RV camping, fishing, off-road, and emergency. Hi-Power series solar panels can power most of your basic outdoor appliances and electronics.
The best batteries and inverters for a 200w solar panel are those that match the voltage and current ratings of the panel. For example, if your panel has an output of 18V and 11A, you should use a battery that has a nominal voltage of 12V and a capacity of at least 110ah (11 x 10 = 110). Similarly, you should use an inverter that has an input voltage range of at least 18V and an output power of at least 200 watts.
There are different types of batteries and inverters available in the market, such as lead-acid, lithium-ion, modified sine wave, and pure sine wave. Each type has its own advantages and disadvantages in terms of cost, performance, durability, and safety. You should do some research and compare the features and reviews of different products before making your purchase.

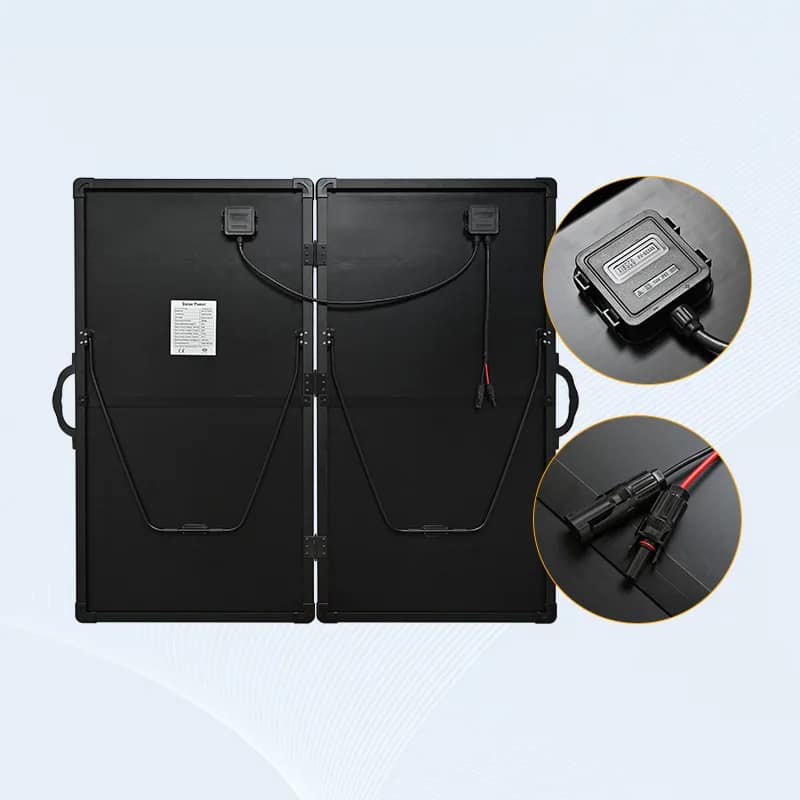

Our regular HP series solar panels include 3m 12AWG dual-core wire, MC4 connectors, and a One-piece small Anderson male connector. If these regular accessories don’t suit your needs, you can customize them. Whatever accessories you want, We’ll meet your requirement.
There are 2 brackets behind the 200W HP series solar panels. Just adjust the stand, connect the folding solar panels and portable power station, and face the sun, and it will automatically start charging.
The PERC shingled-cell technology is used. In the PERC shingled-cell module, the distance between the cells and the cell stacks is 0. And more cells can be encapsulated in the same area, thereby improving the conversion efficiency of the photovoltaic module. Its conversion efficiency is as high as about 22%.
The charging time of a battery depends on the capacity of the battery and the power output of the solar panel. For example, if you have a 12V 100ah battery, which has a capacity of 1200 watts, and a 200w solar panel that produces an average of 100 watts per hour, it will take about 12 hours for the panel to fully charge the battery (1200 / 100 = 12). However, this is assuming that there are no losses or inefficiencies in the system. In reality, there are factors such as temperature, wiring resistance, and battery condition that can reduce the charging efficiency. Therefore, it is advisable to have a larger solar panel or battery than you need to account for these losses.
Lighting System: A 200-watt solar panel can provide enough power for the camper’s interior lighting, keeping it illuminated at night.
Electronic Devices: You can charge and power various electronic devices such as smartphones, tablets, laptops, cameras, etc.
Refrigerator and Freezer: If the camper is equipped with a small refrigerator or freezer, the solar panel can power it to keep food and beverages fresh.
Communication Devices: If you need to use communication devices like wireless network routers, walkie-talkies, etc., the solar panel can help maintain the operation of these devices.
Water Pump: If there’s a water pump system in the camper, the solar panel can provide power for the pump to supply water for the kitchen and bathroom needs.
TV and Sound System: If you want to watch TV or listen to music inside the camper, the solar panel can power these entertainment devices.
It’s important to note that the actual output of the solar panel may be influenced by various factors including weather, angle of the sun, shading, and panel efficiency. Therefore, while a 200-watt solar panel can provide power for the mentioned devices, the extent of power supply may vary under different circumstances.
A 200-watt solar panel can power LED lights, a laptop, chargers, and a small fountain. It might run a microwave, toaster, and coffee maker, but not all at once. To ensure smooth operation, factor in battery storage, device power needs, and inverter capacity. Remember that actual performance depends on sunlight, efficiency, and maintenance.
A 200-watt solar panel typically produces around 10 to 12 amps per hour. With this power output, it can effectively run an RV fridge for 24 hours. Opting for a 150W panel might work, but having a bit more power is wise. With a 200W solar panel, you’ll have peace of mind about your food staying fresh, as you won’t need to be concerned about power shortages. Overestimating your solar capacity can be a smart move for reliability.
Yes, a 200W solar panel can charge a 200Ah battery, but the charging time would be longer due to factors like sunlight variations, battery efficiency, and usage patterns. It’s important to use a charge controller to manage the charging process and consider real-world conditions for accurate estimates.
| Maximum power(Pmax) | 200W |
| Open-circuit voltage(Voc) | 21.5V |
| Voltage at Pmax(Vmp) | 18.2V |
| Short-circuit current(Isc) | 11.65A |
| Current at Pmax(Imp) | 10.99A |
| Cells efficiency(%) | 22.00% |
| The maximum system voltage | 100V DC(IEC) |
| Power temperature coefficient | -0.38%/℃ |
| Voltage temperature coefficient | -0.36%/℃ |
| Current temperature coefficient | 0.07%/℃ |
| Output power tolerance | ±3% |
| Operating temperature | -20~70℃ |
| Weight | 5.88kg |
| Unfolding size | 1180*900*25mm |
| Warranty | 5 years |
This Hi-Power series 200W Portable Solar Panels are designed to power the outdoors and nursing homes, RV camping, fishing, off-road, and emergency. Hi-Power series solar panels can power most of your basic outdoor appliances and electronics.
The best batteries and inverters for a 200w solar panel are those that match the voltage and current ratings of the panel. For example, if your panel has an output of 18V and 11A, you should use a battery that has a nominal voltage of 12V and a capacity of at least 110ah (11 x 10 = 110). Similarly, you should use an inverter that has an input voltage range of at least 18V and an output power of at least 200 watts.
There are different types of batteries and inverters available in the market, such as lead-acid, lithium-ion, modified sine wave, and pure sine wave. Each type has its own advantages and disadvantages in terms of cost, performance, durability, and safety. You should do some research and compare the features and reviews of different products before making your purchase.
Our regular HP series 200W Portable Solar Panels include 3m 12AWG dual-core wire, MC4 connectors, and a One-piece small Anderson male connector. If these regular accessories don’t suit your needs, you can customize them. Whatever accessories you want, We’ll meet your requirement.
There are 2 brackets behind the HP series 200w solar panel. Just adjust the stand, connect the folding solar panels and portable power station, and face the sun, and it will automatically start charging.
The PERC shingled-cell technology is used. In the PERC shingled-cell module, the distance between the cells and the cell stacks is 0. And more cells can be encapsulated in the same area, thereby improving the conversion efficiency of the photovoltaic module. Its conversion efficiency is as high as about 22%.
The charging time of a battery depends on the capacity of the battery and the power output of the solar panel. For example, if you have a 12V 100ah battery, which has a capacity of 1200 watts, and a 200w solar panel that produces an average of 100 watts per hour, it will take about 12 hours for the panel to fully charge the battery (1200 / 100 = 12). However, this is assuming that there are no losses or inefficiencies in the system. In reality, there are factors such as temperature, wiring resistance, and battery condition that can reduce the charging efficiency. Therefore, it is advisable to have a larger solar panel or battery than you need to account for these losses.
A 200-watt solar panel in a camper can power various systems and devices inside the camper. Here are some possible uses:
Lighting System:
Electronic Devices:
Refrigerator and Freezer:
Communication Devices:
Water Pump:
TV and Sound System:
It’s important to note that the actual output of the solar panel may be influenced by various factors including weather, angle of the sun, shading, and panel efficiency. Therefore, while a 200-watt solar panel can provide power for the mentioned devices, the extent of power supply may vary under different circumstances. When planning to use solar power, it’s advisable to engage in detailed energy management and calculations to ensure meeting the various power needs within the camper.
The “best” portable solar panels for an RV can depend on various factors such as your energy needs, available space on your RV, budget, and personal preferences. When choosing a portable solar panel for your RV, consider factors such as the panel’s wattage, size, weight, durability, ease of setup, and compatibility with your RV’s electrical system. It’s also important to calculate your energy needs to determine the appropriate wattage for your panels. Reading user reviews and seeking recommendations from fellow RVers can also help you make an informed decision.
A 200-watt solar panel can power LED lights, a laptop, chargers, and a small fountain. It might run a microwave, toaster, and coffee maker, but not all at once. To ensure smooth operation, factor in battery storage, device power needs, and inverter capacity. Remember that actual performance depends on sunlight, efficiency, and maintenance.
A 200-watt solar panel typically produces around 10 to 12 amps per hour. With this power output, it can effectively run an RV fridge for 24 hours. Opting for a 150W panel might work, but having a bit more power is wise. With a 200W solar panel, you’ll have peace of mind about your food staying fresh, as you won’t need to be concerned about power shortages. Overestimating your solar capacity can be a smart move for reliability.
Yes, a 200W solar panel can charge a 200Ah battery, but the charging time would be longer due to factors like sunlight variations, battery efficiency, and usage patterns. It’s important to use a charge controller to manage the charging process and consider real-world conditions for accurate estimates.
SUNGOLD – The solar portfolio ensures maximum flexibility to meet all your energy needs.
