Winnner bag TF-D-2*50W-A Solar Panels for Sale
Model: SGWB2-TF-D-2*50W-A
Brand: Sungold
Weight: 3.5kg
Cell Efficiency: 22.00%
Folding Size: 615*550*32mm
Unfolding Size: 1100*615*16mm
Solar cell: Mono
Warranty: 1 year

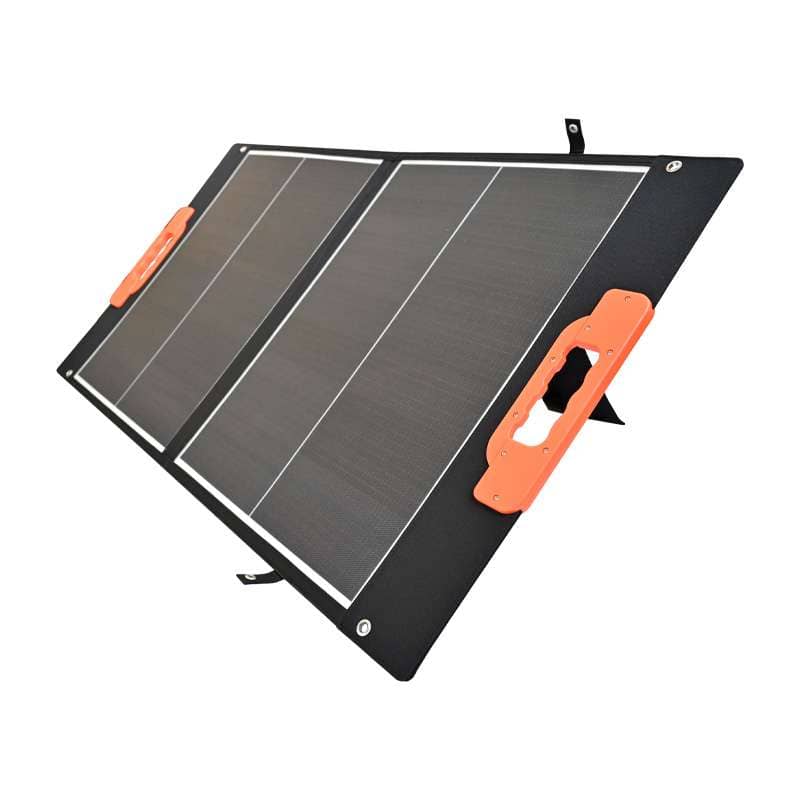

Introducing the Sungold High-Quality Winner Bag-TF-D-2*50W Solar Panels for Sale, equipped with cutting-edge technology to enhance impact resistance. These solar panels feature PERC shingled solar cells, ensuring optimal performance. In ample sunlight, this portable solar panel harnesses solar energy and converts it into free energy with an impressive efficiency of up to 22%. Say goodbye to concerns about running out of mobile power!

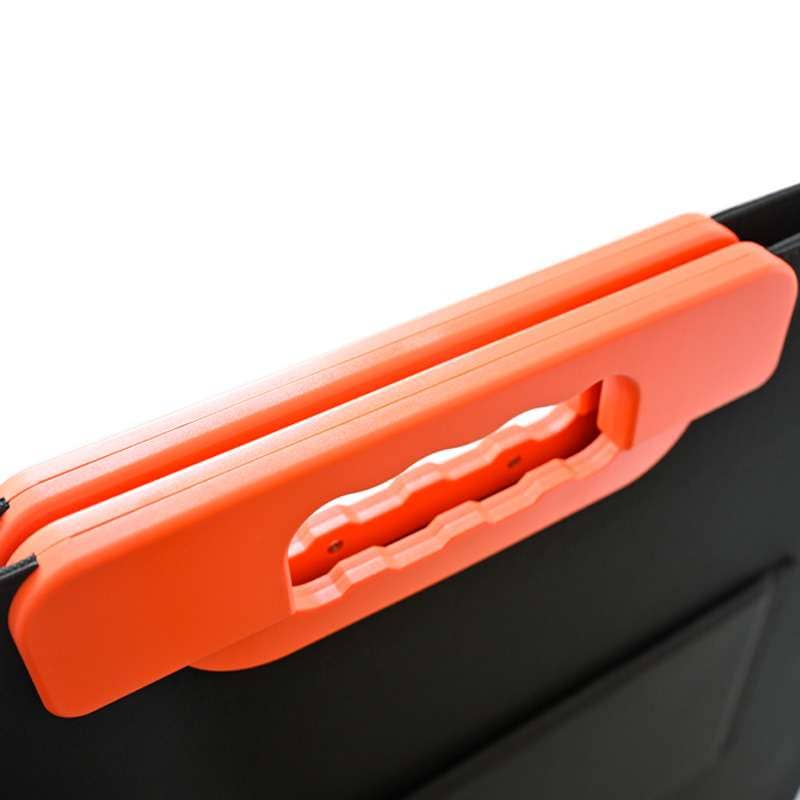

To cater to your needs for effortless portability, we have incorporated a sleek and robust handle design, adding a touch of style to the overall aesthetics of the product.
Maximum power(Pmax) | SGWB2-TF-D-2*50W-A |
Open-circuit voltage(Voc) | 22.9V |
Voltage at Pmax(Vmp) | 19.4V |
Short-circuit current(Isc) | 5.46A |
Current at Pmax(Imp) | 5.16A |
Cells efficiency(%) | 22.00% |
The maximum system voltage | 100V DC(IEC) |
Power temperature coefficient | -0.38%/℃ |
Voltage temperature coefficient | -0.36%/℃ |
Current temperature coefficient | 0.05%/℃ |
Output power tolerance | ±3% |
Operating temperature | -10~60℃ |
Weight | 3.5kg |
Size | 1100*615*16mm |
Warranty | 1 year |

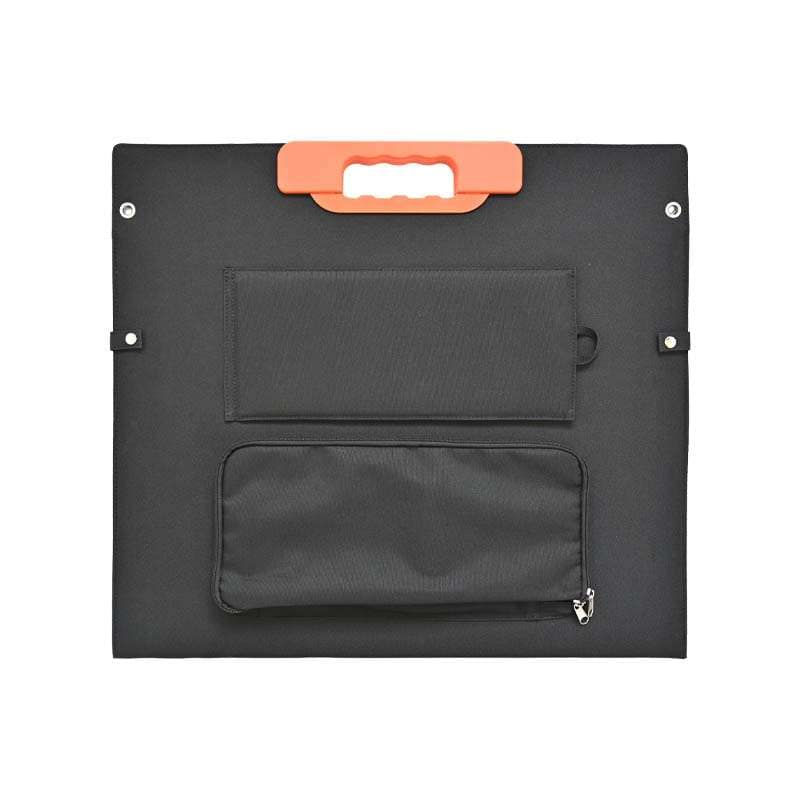

Folded size: 615*550*32mm ; Unfolded size: 1100*615*16mm
The exterior of the solar panel is made of waterproof polyester canvas, so it is water-resistant and has an IP67 waterproof rating. However, please do not leave it in the rain or submerge it in water. The junction box on the solar panel is not waterproof, so please keep it dry.
Solar panels are affected by many factors. For example, the intensity of light and the angle at which the panel is placed on the ground. 100W is tested in an ideal laboratory. In addition, the output power of the solar panel may be limited by the maximum input power of the power station. Please try testing your solar panels in full sunlight to see and make sure there are no shadows on the panels.

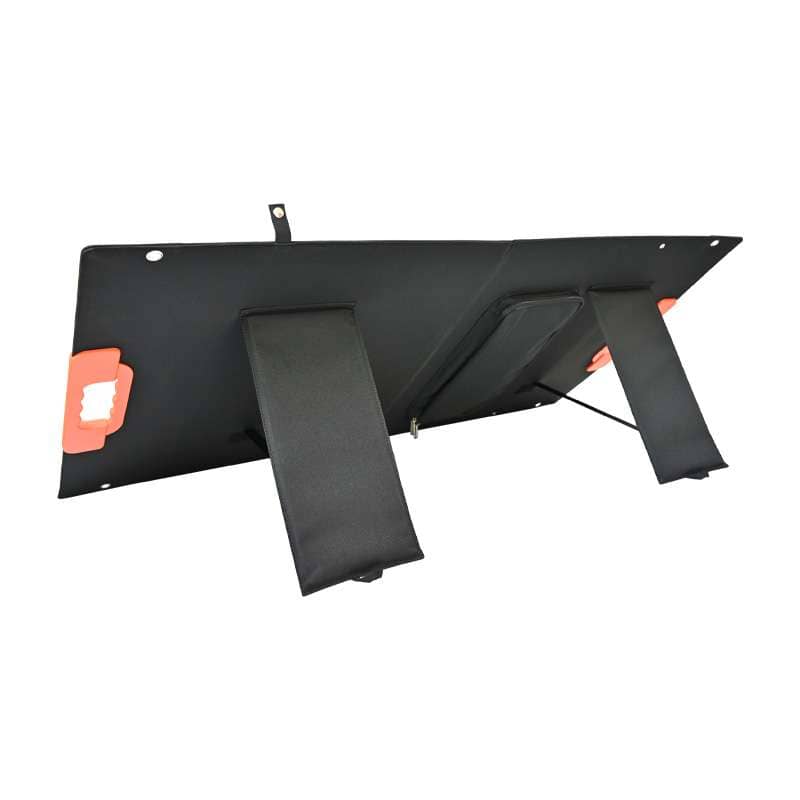

The Sungold Winner bag SGWB2-TF-D-2*50W-A portable solar panel is made up of two 50W solar panels with two adjustable brackets that can be angled at any time. The solar panel’s bracket is durable enough without being damaged by external forces.
Hello, made in China. We offer the best quality and cost-effective products and design your solar solution according to your needs.
Maximum power(Pmax) | SGWB2-TF-D-2*50W-A |
Open-circuit voltage(Voc) | 22.9V |
Voltage at Pmax(Vmp) | 19.4V |
Short-circuit current(Isc) | 5.46A |
Current at Pmax(Imp) | 5.16A |
Cells efficiency(%) | 22.00% |
The maximum system voltage | 100V DC(IEC) |
Power temperature coefficient | -0.38%/℃ |
Voltage temperature coefficient | -0.36%/℃ |
Current temperature coefficient | 0.05%/℃ |
Output power tolerance | ±3% |
Operating temperature | -10~60℃ |
Weight | 3.5kg |
Size | 1100*615*16mm |
Warranty | 1 year |
What is the folded and unfolded size of the solar panel for Sale Winnner bag-TF-D-2*50W??
Folded size: 615*550*32mm ; Unfolded size: 1100*615*16mm
Are solar panels waterproof?
The exterior of the solar panel is made of waterproof polyester canvas, so it is water-resistant and has an IP67 waterproof rating. However, please do not leave it in the rain or submerge it in water. The junction box on the solar panel is not waterproof, so please keep it dry.
Why can’t the solar panel produce 100W when charging the portable power station?
Solar panels are affected by many factors. For example, the intensity of light and the angle at which the panel is placed on the ground. 100W is tested in an ideal laboratory. In addition, the output power of the solar panel may be limited by the maximum input power of the power station. Please try testing your solar panels in full sunlight to see and make sure there are no shadows on the panels.
Are the Solar Panels for Sale mounts sturdy??
Solar Panels for Sale SGWB2-TF-D-2*50W-A Portable Solar Panel consists of two 50W solar panels with two adjustable brackets that can adjust the angle at any time. The bracket of the solar panel is durable enough that it will not be damaged by external force.
Which country is this solar panel made in?
Hello, made in China. We offer the best quality and cost-effective products and design your solar solution according to your needs.
