LVP series, Get Your Power on the Go with a Suitcase Style Solar Panels
The overall design of LVP series suitcase solar panels does not use glass, which greatly reduces the weight of the product. Equipped with a handle of anti-aging material, Suitcase style folding solar panel kit is more portable.

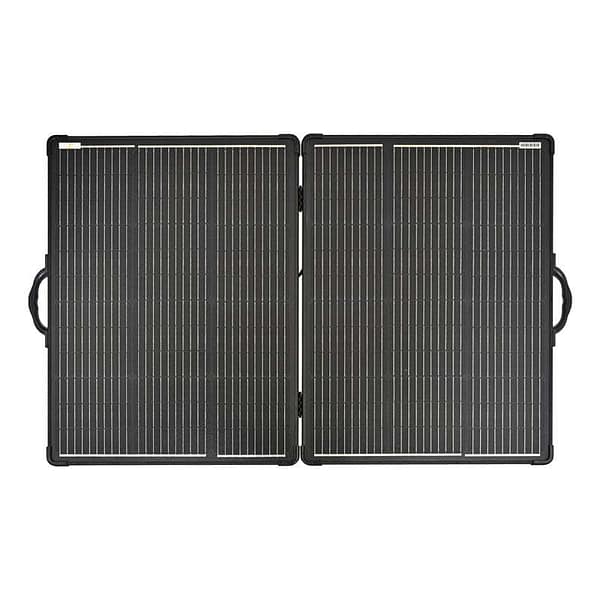

The Sungold LVP Series Portable Solar Panel Carrying Case includes two monocrystalline panels of the same wattage that open to provide more space to capture sunlight. Unique design makes it easier to store or transport. It makes a big difference when you’re driving on the open road or traveling in the wild.
Lightweight, half the weight of conventional panels. It is foldable and portable, and the overall design does not use glass, which greatly reduces the weight of the product. With FR-4 specification pcb as support, make it better quality.
The ETFE laminated outer film has strong UV resistance and aging resistance, which can prolong the service life of solar panels. Aluminum alloy frame protection. Anti-aging material handle, corrosion-resistant metal bracket.

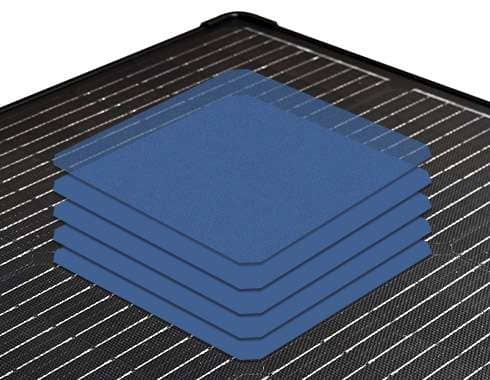

The solar panels are covered with high-efficiency monocrystalline silicon solar cells, using multi-layer cell technology, with higher conversion efficiencies than other conventional panels.The conversion efficiency is as high as 23%.

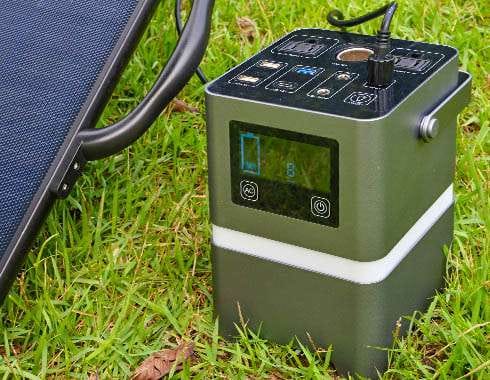

LVP solar panels can be used with energy storage to meet more power needs of more users, making them ideal for off-grid camping and unplanned power outages.
| MODEL | LVP2 130W A | LVP2 180W A | LVP2 270W A |
|---|---|---|---|
| Product |  |  |  |
| Folding Number | 2pcs | 2pcs | 2pcs |
| Cell Efficiency | >22.7% | >22.7% | >22.7% |
| Max Power Voltage(V) | 20.50 | 23.90 | 20.50 |
| Max Power Current(A) | 6.35 | 7.54 | 13.18 |
| Open Circuit Voltage(V) | 24.00 | 28.00 | 24.00 |
| Short Circuit Current(A) | 6.66 | 7.91 | 13.83 |
| Number of Cells | 2*3*12 | 2*3*14 | 2*4*9 |
| Cell Dimension | 182*45.5mm | 182*60.67mm | 182*91mm |
| Solar cell | mono cell 182 | mono cell 182 | mono cell 182 |
| Weight(kg) | 6.4kg | 8.3kg | 11.5kg |
| Expand Size | 1193*635*25mm | 1193*820*25mm | 1563*900*25mm |
| Folded Size | 635*595*50mm | 820*595*50mm | 900*780*50mm |
| Connector | Anderson | Anderson | Anderson |
| The maximum system voltage | 100V DC(IEC) | 100V DC(IEC) | 100V DC(IEC) |
| Surface material | ETFE | ETFE | ETFE |
| Color | black | black | black |
| Warranty | 1 year | 1 year | 1 year |
The suitcase style folding solar panel is designed for charging 12V batteries, perfect for the battery of vehicles and boats, motorhomes, caravans, camping tents, narrow boats, yachts and any other equipment with a 12V battery or battery bank.
SUNGOLD -The solar product portfolio ensures maximum flexibility to meet all your energy needs
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
