Sungold Winnner bag-TF-D-2*50W-B
Model: SGWB2-TF-D-2*50W-B
Brand: Sungold
Weight: 3.5kg
Cell Efficiency: 22.00%
Folding Size: 615*550*36mm
Unfolding Size: 1100*615*20mm
Solar cell: Mono
Warranty: 1 year
Sungold Winner bag SGWB2-TF-D-2*50W-B portable solar panel features new technology for greater impact resistance. The solar panel adopts PERC Shingled solar cells. in the case of sufficient sunlight, the portable solar panel can convert solar energy into free energy with a conversion efficiency of up to 22%, so that you no longer worry about the lack of mobile power. At the same time, we have adopted a more stylish and sturdy handle design to meet your requirements for easy portability.
Winner bag series portable solar panels can be used anywhere and anytime with portable power stations. The solar panel has an Anderson connector at the carrying handle to meet the needs of your other mobile devices.
| Maximum power(Pmax) | SGWB2-TF-D-2*50W-B |
| Open-circuit voltage(Voc) | 22.9V |
| Voltage at Pmax(Vmp) | 19.4V |
| Short-circuit current(Isc) | 5.46A |
| Current at Pmax(Imp) | 5.16A |
| Cells efficiency(%) | 22.00% |
| The maximum system voltage | 100V DC(IEC) |
| Power temperature coefficient | -0.38%/℃ |
| Voltage temperature coefficient | -0.36%/℃ |
| Current temperature coefficient | 0.05%/℃ |
| Output power tolerance | ±3% |
| Operating temperature | -10~60℃ |
| Weight | 3.5kg |
| Size | 1100*615*20mm |
| Warranty | 1 year |
Folded size: 615*550*36mm ; Unfolded size: 1100*615*20mm
The exterior of the solar panel is made of waterproof polyester canvas, so it is water-resistant and has an IP67 waterproof rating. However, please do not leave it in the rain or submerge it in water. The junction box on the solar panel is not waterproof, so please keep it dry.
Solar panels are affected by many factors. For example, the intensity of light and the angle at which the panel is placed on the ground. 100W is tested in an ideal laboratory. In addition, the output power of the solar panel may be limited by the maximum input power of the power station. Please try testing your solar panels in full sunlight to see and make sure there are no shadows on the panels.

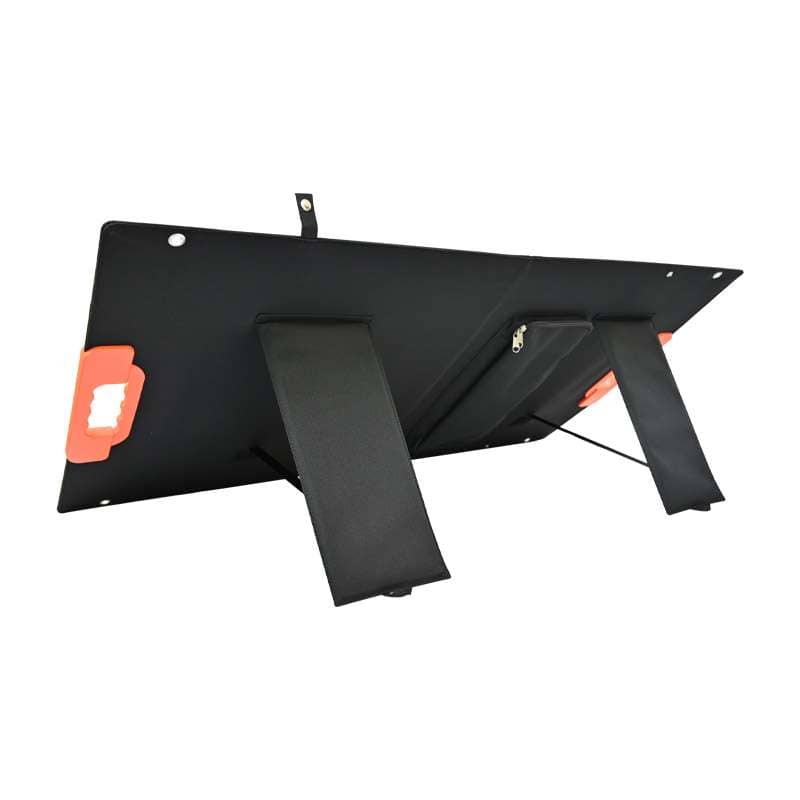

The Sungold Winner bag SGWB2-TF-D-2*50W-B portable solar panel is made up of two 50W solar panels with two adjustable brackets that can be angled at any time. The solar panel’s bracket is durable enough without being damaged by external forces.
Hello, made in China. We offer the best quality and cost-effective products and design your solar solution according to your needs.
| Maximum power(Pmax) | SGWB2-TF-D-2*50W-B |
| Open-circuit voltage(Voc) | 22.9V |
| Voltage at Pmax(Vmp) | 19.4V |
| Short-circuit current(Isc) | 5.46A |
| Current at Pmax(Imp) | 5.16A |
| Cells efficiency(%) | 22.00% |
| The maximum system voltage | 100V DC(IEC) |
| Power temperature coefficient | -0.38%/℃ |
| Voltage temperature coefficient | -0.36%/℃ |
| Current temperature coefficient | 0.05%/℃ |
| Output power tolerance | ±3% |
| Operating temperature | -10~60℃ |
| Weight | 3.5kg |
| Size | 1100*615*20mm |
| Warranty | 1 year |
What are the dimensions of the Sungold Winner bag SGWB2-TF-D-2*50W-B portable solar power folded and unfolded?
Folded size: 615*550*36mm ; Unfolded size: 1100*615*20mm
Are portable solar power waterproof?
The exterior of the solar panel is made of waterproof polyester canvas, so it is water-resistant and has an IP67 waterproof rating. However, please do not leave it in the rain or submerge it in water. The junction box on the solar panel is not waterproof, so please keep it dry.
Why can’t the solar panel produce 100W when charging the portable power station?
portable solar power are affected by many factors. For example, the intensity of light and the angle at which the panel is placed on the ground. 100W is tested in an ideal laboratory. In addition, the output power of the solar panel may be limited by the maximum input power of the power station. Please try testing your solar panels in full sunlight to see and make sure there are no shadows on the panels.
Are the solar panel mounts sturdy?
The Sungold Winner bag SGWB2-TF-D-2*50W-B portable solar power is made up of two 50W solar panels with two adjustable brackets that can be angled at any time. The solar panel’s bracket is durable enough without being damaged by external forces.
Which country is this solar panel made in?
Hello, made in China. We offer the best quality and cost-effective products and design your solar solution according to your needs.
SUNGOLD -The solar product portfolio ensures maximum flexibility to meet all your energy needs.
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
