Sungold Portable Solar Panel Winnner bag SGWB2-TF-M-200W-B

Sungold Portable Solar Panel Winnner bag SGWB2-TF-M-200W-B

Model: SGWB2-TF-M-4X50W-B

Brand: Sungold

Weight: 5.69kg

Cell Efficiency: 22.4%

Dimension: 2250*535*20mm

Solar cell: Mono

Warranty: 1 year

Description

Winner bag portable solar panel 4X50W (A) has a junction box with an Anderson cable, dual USB ports, and a Typ-c port. This Winner bag 4X50W (B) is different from the A model in that it does not have a junction box on the charging bag. There is just an Anderson connector at the handle of the charging bag to meet basic charging needs. This charging bag also has red and black dual-core wiring, one side is the DC connector, and the other side is a small Anderson connector. This Winner bag surface uses ETFE material, more durable and long-lasting.

Product Features

SGWB2-TF-M-200W-B

High conversion efficiency

Using ETFE surface material

This Winner bag solar charging bag uses ETFE surface material, to the Winner bag portable solar panel provides excellent weather resistance, while aging resistance, fire, and salt spray. The use of new materials, the overall use of strong performance.

Custom power

This Winner bag portable solar panel supports customized power with a unique customization service. Its output interface can be flexibly set and customized according to your needs. Can be integrated with the handle molding, at any time and anywhere with the portable power station; can also be an external USB interface at any time to meet the needs of your other mobile devices.

Customized service
Suitable for portable power station

Easy to carry, long service life

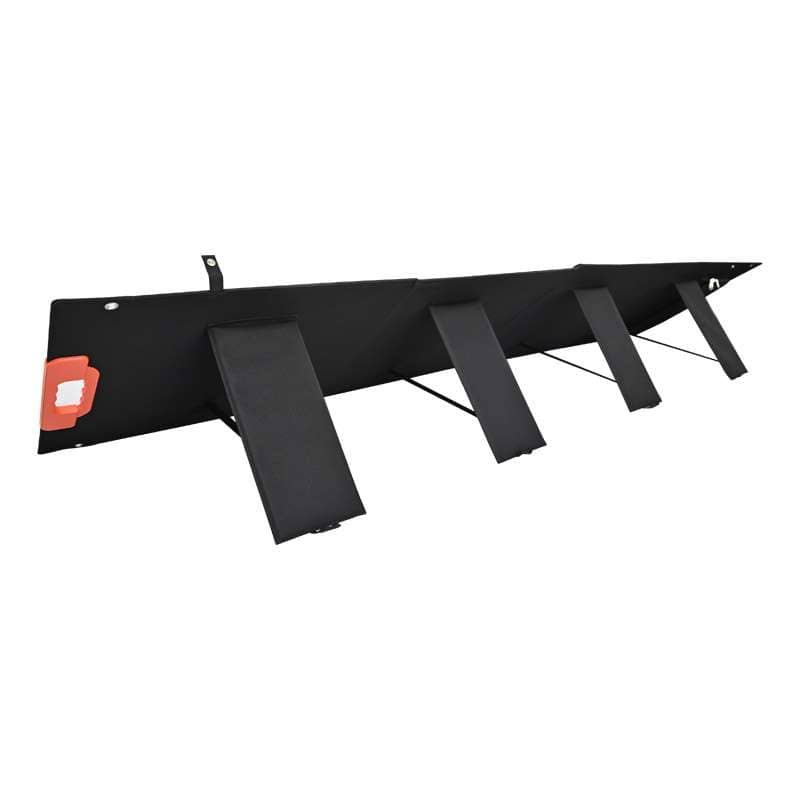

This Winner bag portable solar panel is simple to set up, there is an adjustable bracket, easy to carry, and easy to install. This Winner bag is ideal for outdoor use is more durable and can achieve a longer service life.

With an IP65 waterproof rating

It has an IP65 waterproof rating to prevent splashing (but please do not put it in the rain or submerge it in water) and is durable, perfect for outdoor, camping, and other off-grid environments.

Easy to carry

Specifications

This Winner bag 4X50W (B) is different from the A model in that it does not have a junction box on the charging bag. There is just an Anderson connector at the handle of the charging bag to meet basic charging needs.

Maximum power(Pmax)SGWB2-TF-M-4X50W-B
Open-circuit voltage(Voc)23.4V
Voltage at Pmax(Vmp)19.8V
Short-circuit current(Isc)10.71A
Current at Pmax(Imp)10.1A
Cells efficiency(%)22.4%
The maximum system voltage100V DC(IEC)
Power temperature coefficient-0.38%/℃
Voltage temperature coefficient-0.36%/℃
Current temperature coefficient0.05%/℃
Output power tolerance±3%
Operating temperature-10~60℃
Weight5.69kg
Size2250*535*20mm
Warranty1 year

FAQ

Sungold’s winner bag portable solar panel is the most lightweight design, the best user experience, the most concise after-sales service, and the easiest solar product to use.

Our winner bag portable solar panel is specially designed for powering outdoor and nursing homes, RV camping/fishing/off-road/hunting/emergency, etc. If you will go camping, climbing, hiking, picnic, or even unexpected power outage. Winner bag can power most of your essential outdoor appliances and electronics. The winner bag portable solar panel can also be your reliable backup power source when you need electricity in special circumstances.

Maximum power(Pmax)SGWB2-TF-M-4X50W-B
Open-circuit voltage(Voc)23.4V
Voltage at Pmax(Vmp)19.8V
Short-circuit current(Isc)10.71A
Current at Pmax(Imp)10.1A
Cells efficiency(%)22.4%
The maximum system voltage100V DC(IEC)
Power temperature coefficient-0.38%/℃
Voltage temperature coefficient-0.36%/℃
Current temperature coefficient0.05%/℃
Output power tolerance±3%
Operating temperature-10~60℃
Weight5.69kg
Size605*535*36mm
Warranty1 year

1、What is the difference between the Sungold winner bag and other portable solar panels?

Sungold’s winner bag portable solar panel is the most lightweight design, the best user experience, the most concise after-sales service, and the easiest solar product to use.



2、Which places are best equipped with this winner bag portable solar panel?

Our winner bag portable solar panel is specially designed for powering outdoor and nursing homes, RV camping/fishing/off-road/hunting/emergency, etc. If you will go camping, climbing, hiking, picnic, or even unexpected power outage. Winner bag can power most of your essential outdoor appliances and electronics. The winner bag can also be your reliable backup power source when you need electricity in special circumstances.
