Sungold Portable Solar Panel Winnner bag-TF-M-200W-A

Sungold Portable Solar Panel Winnner bag-TF-M-200W-A

Model: SGWB2-TF-M-2000W-A

Brand: Sungold

Weight: 5.69kg

Cell Efficiency: 22.4%

Folding Size: 605*535*32mm

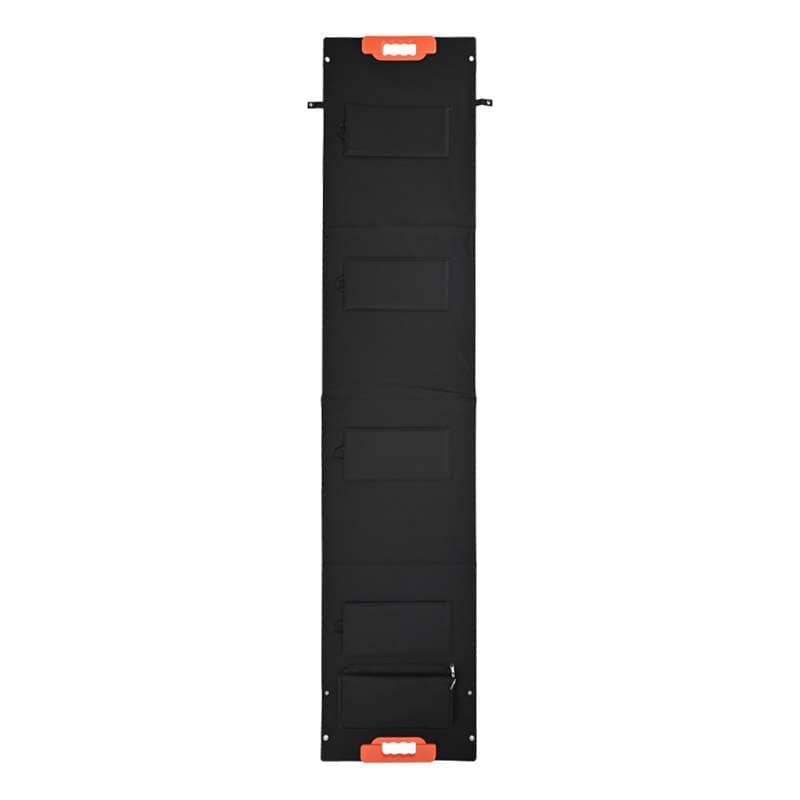

Unfolding Size: 2250*535*16mm

Solar cell: Mono

Warranty: 1 year

Description

The Sungold Winner bag series of foldable portable solar panels are lightweight and foldable and come with an easy-to-carry handle that makes them more portable. Made of smooth ETFE material, this portable solar panel is durable, weatherproof, and salt spray resistant. Winner bag series solar panels are available in a variety of sizes and are built for outdoor living to meet your daily travel needs.

Product Features

Winner bag-TF-M-200W-A portable solar panel

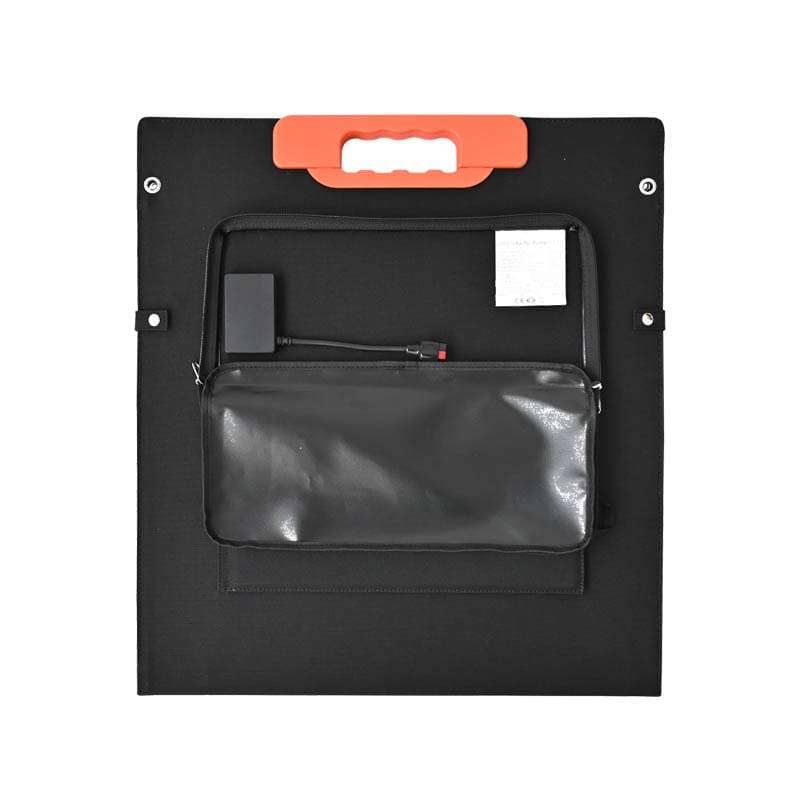

Unique handle design

Unique carrying handle design

Sungold Portable Solar Panel Winner bag SGWB2-TF-M-200W-A is designed with a single carrying handle for easy portability. Sungold can customize the color of the handle, the size of the solar panel, and the wiring to meet your needs. We also offer a 24-month warranty and a lifetime of friendly customer service.

ETFE surface material

This solar panel uses ETFE surface material. This new polymer material is sewn into an ultra-durable and waterproof polyester canvas to improve its outdoor durability, more impact resistant, lighter weight, and crack resistant. It is perfect for use during any outdoor activity such as camping, hiking, picnicking, etc.

Use of ETFE material
High conversion rate

High conversion rate

Solar panels covered with high-efficiency monocrystalline silicon solar cells have a higher conversion efficiency of up to 22.4%, converting more solar energy into usable energy. The portable solar panel consists of four 50W solar panels to achieve higher power production.

Compatible and versatile

This portable solar panel is equipped with dual USB ports, a pigtail cable (0.13mm small Anderson connector), and a Type-C port for charging smartphones, tablets, and mobile power at any time. The solar panel is compatible with most of the portable power plants on the market Jackery/Ecoflow/Anker/Rockpals/Blutti, etc.

Compatible and versatile

Specifications

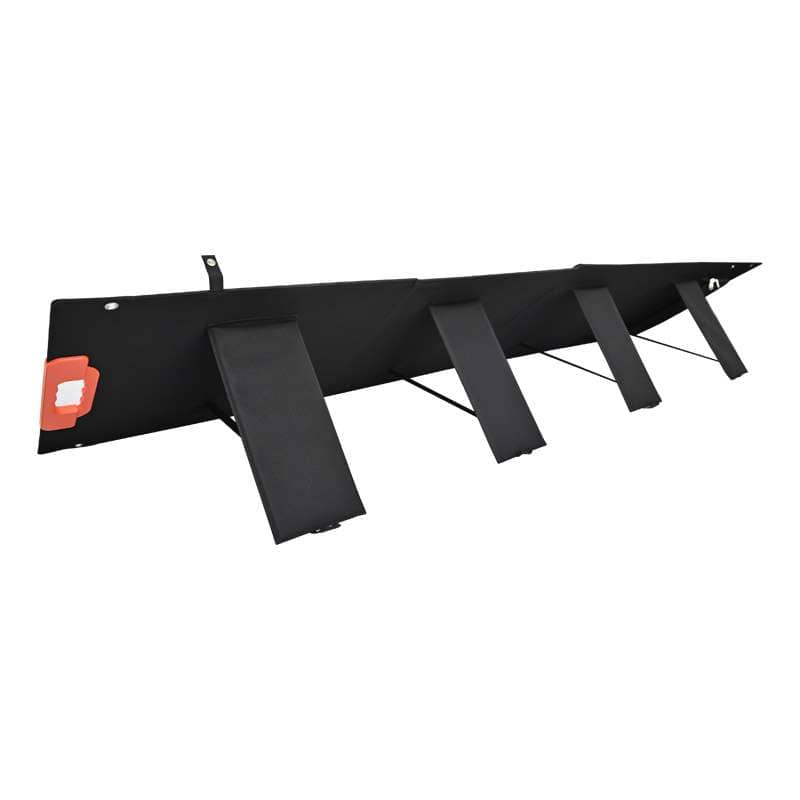

Sungold is a wholesale solar panel supplier. This Portable Solar Panel Winner bag SGWB2-TF-M-200W-A lightweight solar panel is highly portable and easy to carry around, with 4 metal reinforced mounting holes and 4 adjustable brackets for easy installation or angle adjustment.

Maximum power(Pmax)Winner Bag-TF-M-200W-A
Open-circuit voltage(Voc)23.4V
Voltage at Pmax(Vmp)19.8V
Short-circuit current(Isc)10.71A
Current at Pmax(Imp)10.1A
Cells efficiency(%)22.4%
The maximum system voltage100V DC(IEC)
Power temperature coefficient-0.38%/℃
Voltage temperature coefficient-0.36%/℃
Current temperature coefficient0.05%/℃
Output power tolerance±3%
Operating temperature-10~60℃
Weight5.69kg
Size2250*535*16mm
Warranty1 year

FAQ

The Sungold Portable Solar Panel Winner bag SGWB2-TF-M-200W-A solar panel has a solar junction box on it. Output ports: Dual USB, one cable (0.13mm small Anderson connector), one Type-C|black.

This solar panel weighs only 12.7 pounds (5.69kg) and is foldable. When folded, it is about 24 inches (60.5cm) long, 21 inches (53.5cm) wide, and 1.2 inches (3.2cm) thick, and when unfolded, it is about 88 inches (225cm) long, 21 inches (53.5cm) wide, and 0.6 inches (1.6cm) thick.

Hi, it will not damage either the battery of the portable power station or the solar panel, and will only produce a lower power when using the solar panel.

200W is the maximum amount of power it will produce. If there is not enough light, it will not always produce this power. You can get between 130W and 180W depending on the conditions. Even less when the light conditions are not strong.

Sungold Portable Solar Panel Winner bag SGWB2-TF-M-200W-A comes with a one-year warranty.

Maximum power(Pmax)SGWB2-TF-M-200W-A
Open-circuit voltage(Voc)23.4V
Voltage at Pmax(Vmp)19.8V
Short-circuit current(Isc)10.71A
Current at Pmax(Imp)10.1A
Cells efficiency(%)22.4%
The maximum system voltage100V DC(IEC)
Power temperature coefficient-0.38%/℃
Voltage temperature coefficient-0.36%/℃
Current temperature coefficient0.05%/℃
Output power tolerance±3%
Operating temperature-10~60℃
Weight5.69kg
Size605*535*32mm
Warranty1 year

How many output ports does this foldable portable solar panel have?

The Sungold Portable Solar Panel Winner bag SGWB2-TF-M-200W-A solar panel has a solar junction box on it. Output ports: Dual USB, one cable (0.13mm small Anderson connector), one Type-C|black.



What are the dimensions of this Sungold Portable Solar Panel Winner bag SGWB2-TF-M-200W-A?

This solar panel weighs only 12.7 pounds (5.69kg) and is foldable. When folded, it is about 24 inches (60.5cm) long, 21 inches (53.5cm) wide, and 1.2 inches (3.2cm) thick, and when unfolded, it is about 88 inches (225cm) long, 21 inches (53.5cm) wide, and 0.6 inches (1.6cm) thick.



If there is not enough sunlight, will it damage the battery and solar panel of the portable power station when under voltage charging?

Hi, it will not damage either the battery of the portable power station or the solar panel, and will only produce a lower power when using the solar panel.



What is the maximum power output of this 200W solar panel (portable generator) in sunny conditions?

200W is the maximum amount of power it will produce. If there is not enough light, it will not always produce this power. You can get between 130W and 180W depending on the conditions. Even less when the light conditions are not strong.



How long is the warranty on this foldable portable solar panel?

Sungold Portable Solar Panel Winner bag SGWB2-TF-M-200W-A comes with a one-year warranty.
