High conversion rate
The 130W LVP folding solar panel uses A-grade 182 solar cells and can achieve a cell conversion efficiency of 22.7%.
Folding Solar Panels LVP2-130W
Folding Solar Panels LVP2-130W
- Brand: Sungold
- Cells Efficiency :22.70%
- Folding Size: 635*595*50mm
- Unfolding Size: 1193*635*25mm
- Warranty: 1 year
Description

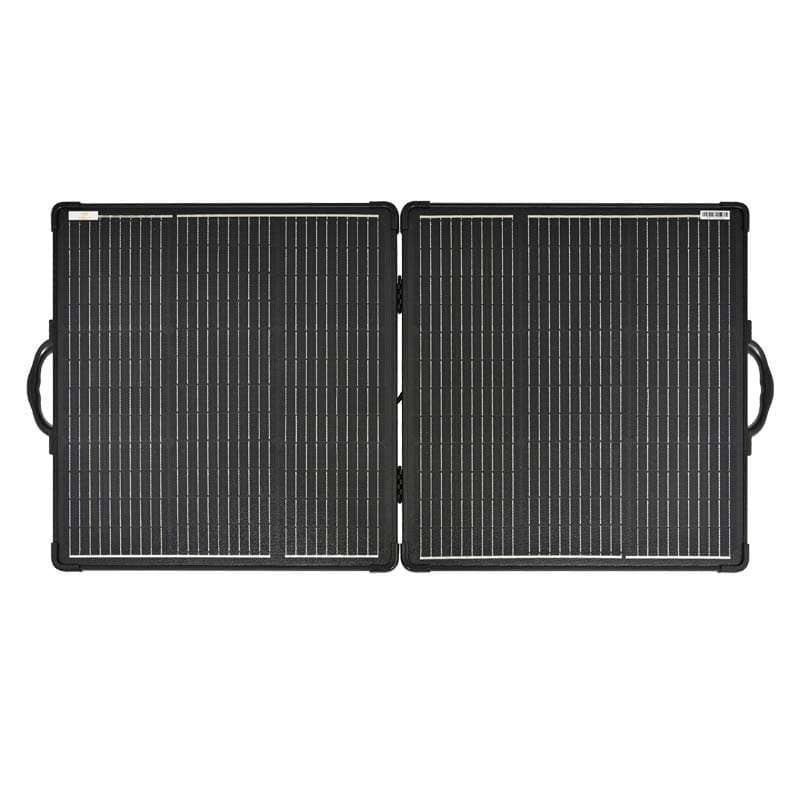

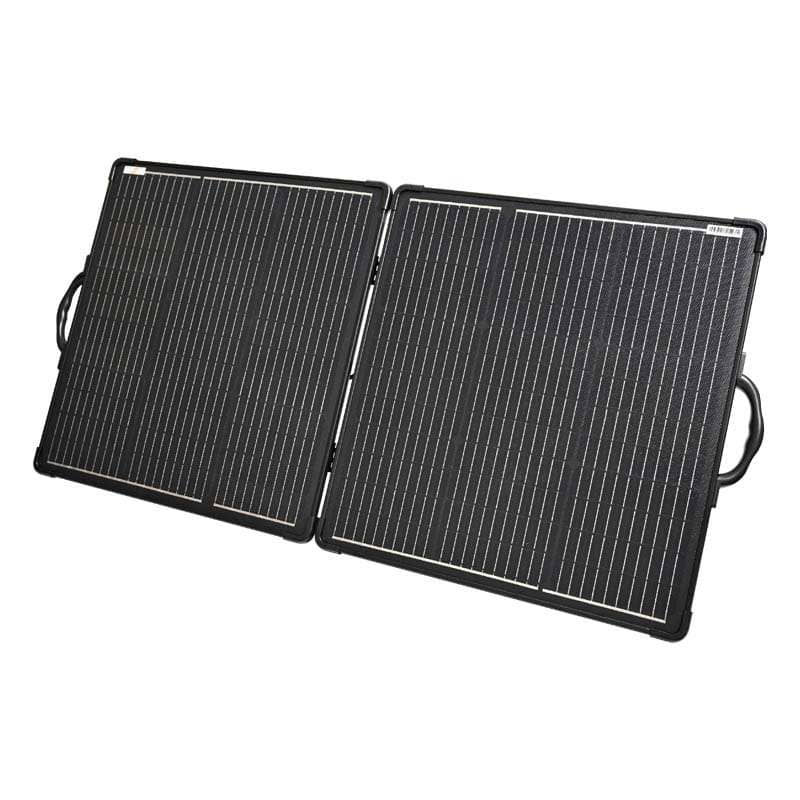

The LVP series 130W folding solar panels include two 65W monocrystalline panels, providing more space to capture sunlight. Unique design makes it easier to store or transport. It has a handle that contains magnets to help it stay folded and is very portable. It’s perfect for outdoor use, camping, RVs, and vans. It is an essential solar panel for the seasoned traveler.
Product Features
LVP2-130W Portable Solar panel
Portability
A magnet at the handle keeps the panel closed without the need for a bulky latch for easy portability. At the same time, a cloth protective bag is also provided, which does not increase the overall weight, and the surface is made of scratch-resistant material, which can well protect the folding solar panel from scratches or damage during transportation.

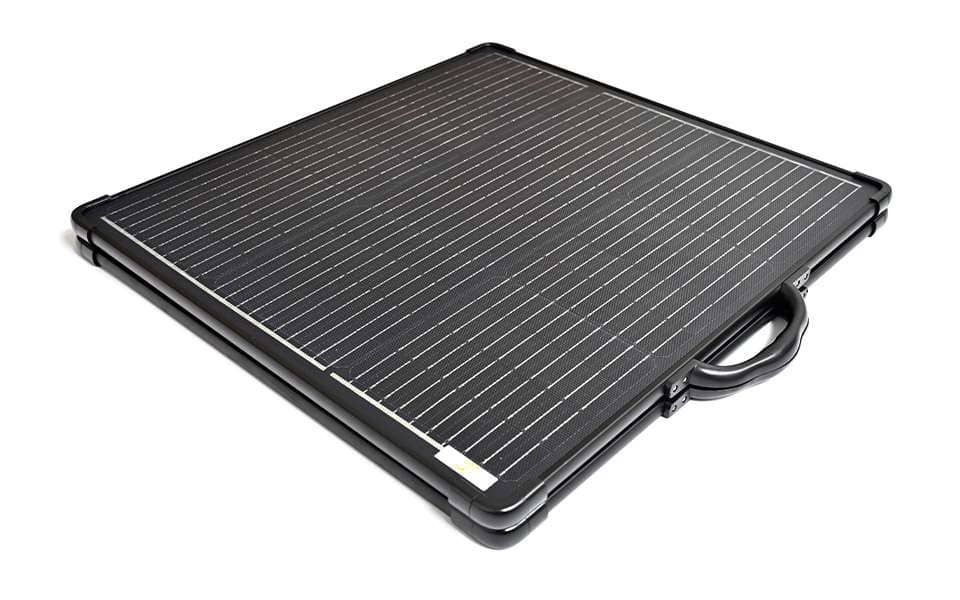

Lightweight
Lightweight and foldable. The overall design does not use glass, which greatly reduces the weight of the product. With FR4 specification pcb as the support, the performance of the panel is more stable, and the waterproof performance is good.
ETFE material
The 130W LVP solar panel uses ETFE material as the front protective film, which ensures that the product has good anti-corrosion and aging resistance. It also has strong anti-uv, good light transmittance, which can prolong the service life of the solar panel.
Specifications
The overall design of the LVP2-130W solar panel does not use glass, which greatly reduces the weight of the product. The product is designed to be very easy to use, and it can be charged after adjusting the angle after opening.
| Maximum power(Pmax) | 130W |
| Open-circuit voltage(Voc) | 24.0V |
| Voltage at Pmax(Vmp) | 20.5V |
| Short-circuit current(Isc) | 6.51A |
| Current at Pmax(Imp) | 6.14A |
| Cells efficiency(%) | 22.70% |
| The maximum system voltage | 100V DC(IEC) |
| Power temperature coefficient | -0.38%/℃ |
| Voltage temperature coefficient | -0.36%/℃ |
| Current temperature coefficient | 0.07%/℃ |
| Output power tolerance | ±3% |
| Operating temperature | -10~60℃ |
| Weight | |
| Unfolding size | 1193*635*25mm |
| Warranty | 1 year |
FAQ
If you’re going RV camping, a picnic, or even an unexpected power outage. The LVP series can be used for most of your basic outdoor appliances and electronics power supply. It can also be your reliable backup power source when you need electricity in special situations.
According to actual conditions such as weather and temperature, a 100W solar panel can output 390-520Wh of energy a day. It can charge your phone, tablet and small fan.
Absolutely. Anti-aging material handle, anti-corrosion metal bracket, using ETFE as the surface outer membrane.Ensure that the product has good corrosion resistance and anti-aging ability.
The backsheet material is PET. PET is a milky white or light yellow highly crystalline polymer with a smooth and shiny surface. Good creep resistance, fatigue resistance, abrasion resistance and dimensional stability, low wear and high hardness. Good electrical insulation performance, less affected by temperature.
The wiring configuration is separate from the plug connection. We designed it in two sizes, alligator clips or small Anderson connectors. Both connectors cover all your basic usage scenarios.
| Maximum power(Pmax) | 130W |
| Open-circuit voltage(Voc) | 24.0V |
| Voltage at Pmax(Vmp) | 20.5V |
| Short-circuit current(Isc) | 6.51A |
| Current at Pmax(Imp) | 6.14A |
| Cells efficiency(%) | 22.70% |
| The maximum system voltage | 100V DC(IEC) |
| Power temperature coefficient | -0.38%/℃ |
| Voltage temperature coefficient | -0.36%/℃ |
| Current temperature coefficient | 0.07%/℃ |
| Output power tolerance | ±3% |
| Operating temperature | -10~60℃ |
| Weight | |
| Unfolding size | 1193*635*25mm |
| Warranty | 1 year |
Where is the best place to equip Sungold’s LVP series solar panels?
If you’re going RV camping, on a picnic, or even having an unexpected power outage. The LVP series portable solar panel can be used for most of your basic outdoor appliances and electronics power supply. It can also be your reliable backup power source when you need electricity in special situations.
How much energy can the LVP series 130W portable solar panel output in a day?
According to actual conditions such as weather and temperature, a 100W solar panel can output 390-520Wh of energy a day. It can charge your phone, tablet, and a small fan.
Are LVP series solar panels durable?
Absolutely. Anti-aging material handle, anti-corrosion metal bracket, using ETFE as the surface outer membrane. Ensure that the product has good corrosion resistance and anti-aging ability.
What is the backplane material of the LVP series portable solar panel?
The backsheet material is PET. PET is a milky white or light yellow highly crystalline polymer with a smooth and shiny surface. Good creep resistance, fatigue resistance, abrasion resistance and dimensional stability, low wear, and high hardness. Good electrical insulation performance, less affected by temperature.
What are the wiring specifications?
The wiring configuration is separate from the plug connection. We designed it in two sizes, alligator clips or small Anderson connectors. Both connectors cover all your basic usage scenarios.
