Foldable Solar Panel SGF3-200W

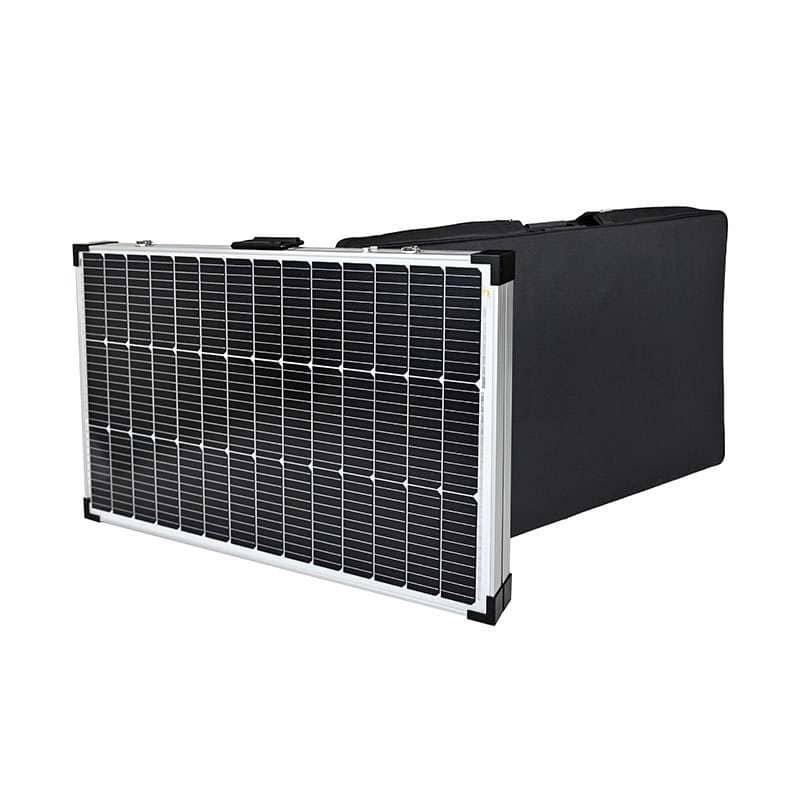

To adapt to more application scenarios, Sungold solar has successively launched higher-power glass foldable solar panels. The SGF 200W solar panel consists of two 100W panels with a foldable design. With EVA hard bag, it is convenient for you to take and carry. All-round protection of the product for better storage and transportation. It is very suitable for outdoor camping, RV travel, off-grid home, and other application scenarios.

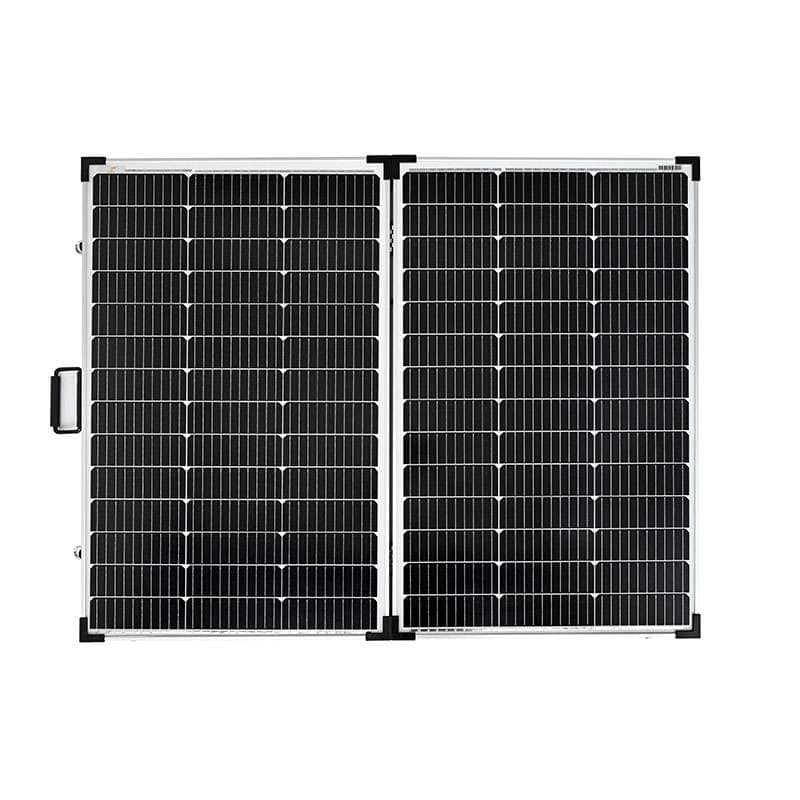

Foldable design, the two panels are connected by folding hinges in the middle, and the folding is more smooth. The handle is made of anti-aging material, which is sturdy and durable. The appearance design is also very beautiful, you can carry this product out for camping or RV travel like a suitcase.
The connection between the glass panel and the aluminum alloy frame of the SGF series products is encapsulated with solar silica gel, which will not allow any moisture to enter. The SGF200 watt solar glass folding panel has IP67 waterproof rating, and the whole product will not affect the work of the product if it is rained or splashed by water.
The bracket of this product is made of aluminum alloy material, which is very durable and corrosion-resistant. The stand can be adjusted flexibly, and it is equipped with screws at the bottom. Depending on the angle of the sun, this screw can be moved to better face the sun and absorb sunlight.

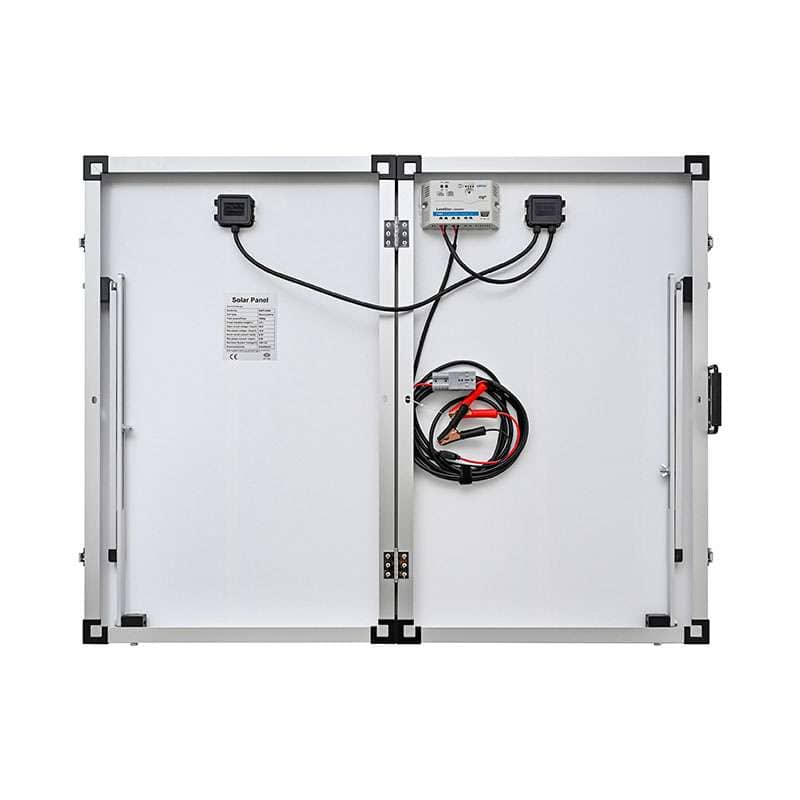

For the wiring of the SGF 200 watt glass folding solar panel, we have designed two specifications, alligator clips or Anderson connectors. The two connectors can meet all your basic usage scenarios. In order to adapt to more application scenarios, we can also choose to match the controller.
The SGF3-200W solar panel uses Class A 182 cells with a conversion efficiency of up to 22.7%. As long as you open the solar panel and place it on the ground, it can absorb sunlight and charge quickly.
| Parameter | Value |
|---|---|
| Product | SGF3 200W |
| Maximum Power/Pmax (Wp) | 200W |
| Folding Number | 2pcs |
| Cell Efficiency | >22.7% |
| Number of Cells | 2*3*14 |
| Operating Voltage/Vmp (V) | 24.4 |
| Operating Current/Imp (A) | 8.37 |
| Open Circuit Voltage/Voc (V) | 28.5 |
| Short Circuit Current/Isc (A) | 8.61 |
| Folded Size (mm) | 945*590*35mm |
| Expand Size (mm) | 1183*945*35mm |
| Solar Cells | 182 mono cell |
| Weight (kg) | 2.44 |
| Maximum System Voltage | 100V DC(IEC) |
| Connector | Anderson |
| Color | White |
| Warranty | 10 years |
SGF series glass folding solar panel is one of the most mature products. The stable and worry-free use of the product greatly reduces the customer’s after-sales worries. It is affordable and very cost-effective.

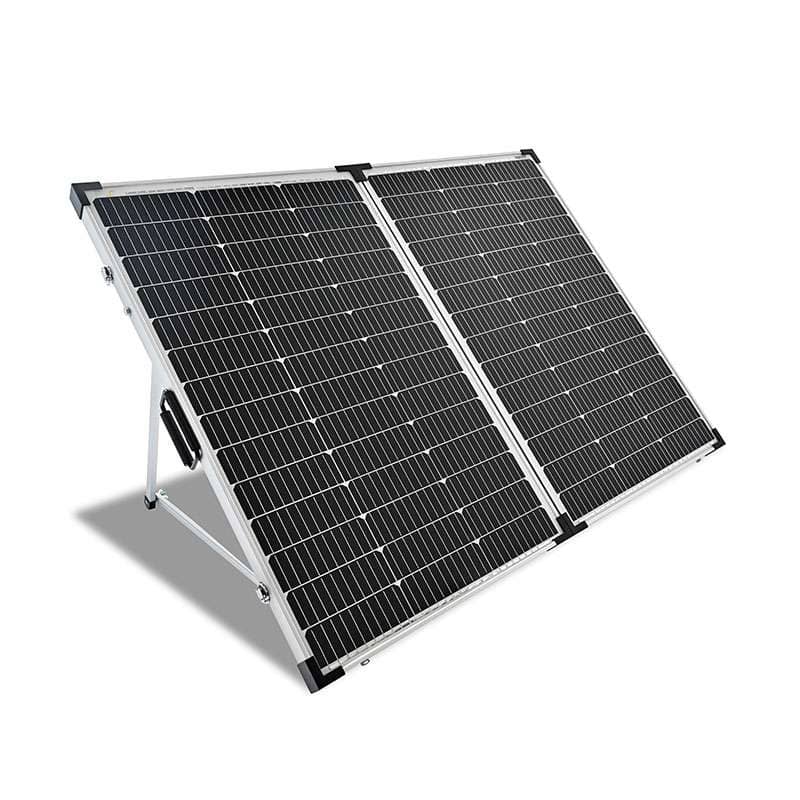

When the SGF series solar panel is opened, the angle of the bracket is V-shaped. A stand consists of two rectangular aluminum frames. One aluminum frame has a blank design in the middle, and the other has an adjustable screw at the bottom. If you want to raise the solar panel to absorb more sunlight, you can push the screw forward and it will work. If you want to lower the height, just push the screw back.
The SGF series glass folding solar panels have a 10-year warranty.
Of course. The aluminum alloy frame and the handle of anti-aging material ensure that the product has good anti-corrosion and anti-aging ability.
Its folded size is 925*590*35mm. Its expanded size is 1183*925*35mm.
| Maximum power(Pmax) | 200W |
| Open-circuit voltage(Voc) | 28.0V |
| Voltage at Pmax(Vmp) | 23.9V |
| Short-circuit current(Isc) | 8.55A |
| Current at Pmax(Imp) | 8.07A |
| Cells efficiency(%) | 22.70% |
| The maximum system voltage | 100V DC(IEC) |
| Power temperature coefficient | -0.38%/℃ |
| Voltage temperature coefficient | -0.36%/℃ |
| Current temperature coefficient | 0.07%/℃ |
| Output power tolerance | ±3% |
| Operating temperature | -10~60℃ |
| Unfolding size | 1183*925*35mm |
| Folding Size | 925*590*35mm |
| Warranty | 10 years |
What is the difference between SGF series glass folding solar panels and others?
SGF series glass folding solar panel is one of the most mature products. The stable and worry-free use of the product greatly reduces the customer’s after-sales worries. It is affordable and very cost-effective.
How is the bracket of the SGF series designed?
When the SGF series is opened, the angle of the bracket is V-shaped. A stand consists of two rectangular aluminum frames. One aluminum frame has a blank design in the middle, and the other has an adjustable screw at the bottom.
If you want to raise the solar panel to absorb more sunlight, you can push the screw forward and it will work. If you want to lower the height, just push the screw back.
Are SGF series solar panels very durable?
Of course. The aluminum alloy frame and the handle of anti-aging material ensure that the product has good anti-corrosion and anti-aging ability.
How about the warranty of the SGF series?
The SGF series glass folding solar panels have a 10-year warranty.
What is the size of this SGF series 200W solar panel?
Its folded size is 925*590*35mm. Its expanded size is 1183*925*35mm.
