Folding Solar Panel SGF3-270W
Sungold Solar SGF270W glass foldable solar panels, use sunlight to charge! It uses high-efficiency monocrystalline silicon solar cells, and the conversion efficiency is as high as about 22.7%. It’s perfect for outdoor living and has everything you need, even in the event of an unexpected power outage. The overall design of the SGF solar folding glass panel is heavy, stable, and mature. It is the product series that customers are most familiar with.

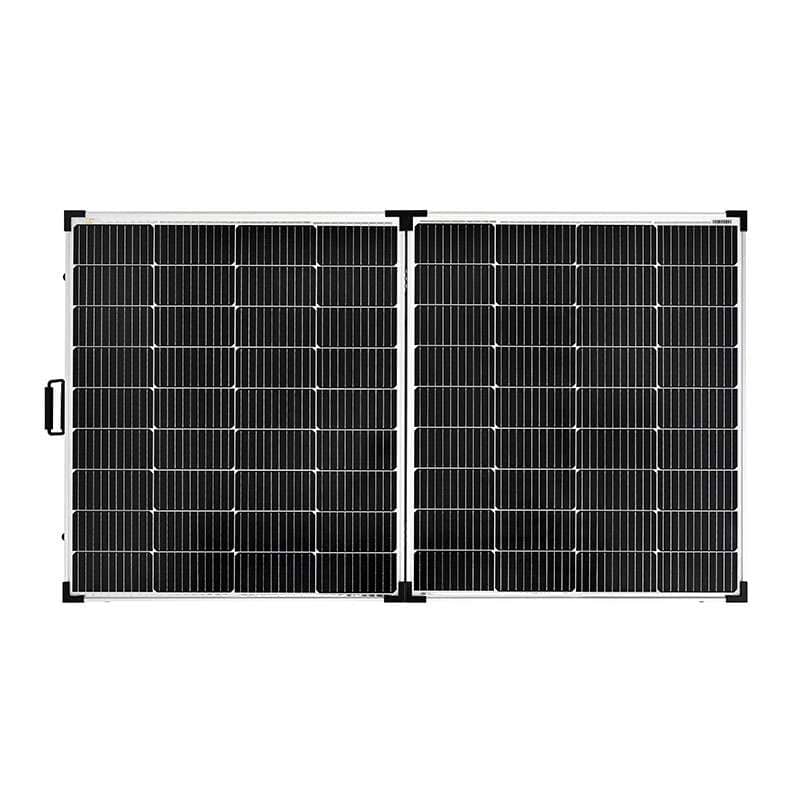

The SGF 270W glass folding solar panel uses the latest technology monocrystalline silicon solar cells, using multi-layer cell technology to make it the highest quality, with a conversion efficiency of up to about 22.7%. Just open the solar panel, you can absorb sunlight and output electricity.
The connection between the glass panel and the aluminum alloy frame is encapsulated with solar silica gel, which will not let any moisture enter at all. At the same time, these designs can also protect the solar panel and enhance the corrosion resistance and aging resistance of the panel. You can put the product outdoors for a long time without worrying about any quality problems.
SGF series glass folding solar panels use the most mature product design. The overall product has been available for many years and has been tested by the environment for a long time. It is the most stable design. Compared with the glass folding panels on the market, our product cost structure is more reasonable. The price is more affordable.

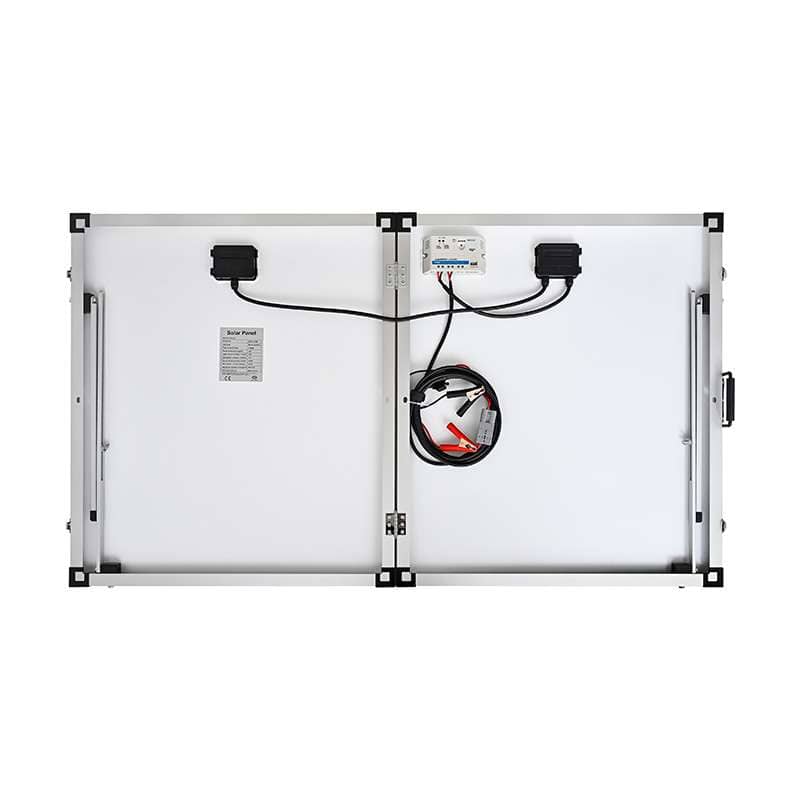

We have designed two specifications, alligator clip or Anderson connector. These two connectors can meet all your basic usage scenarios. Moreover, we can also choose to match the controller. If you use it for car batteries, RV batteries, yacht batteries and other batteries without additional controllers, it can be charged more efficiently.

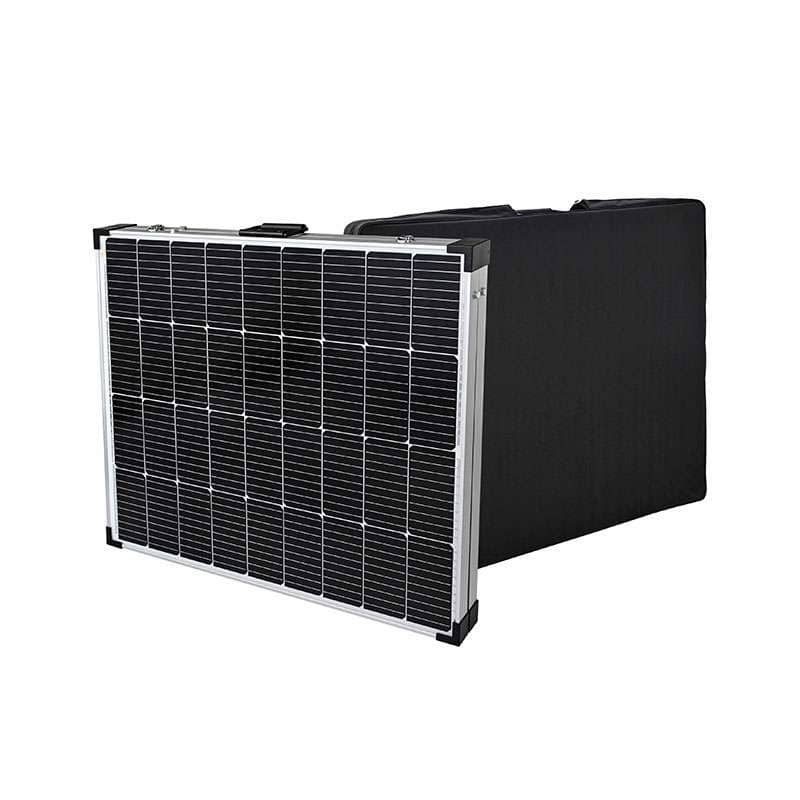

SGF3-130W glass folding solar panel is foldable design, with EVA hard bag, convenient for you to take and carry. The products have passed ROHS and CE certification, and the quality is guaranteed. Give you a long warranty, let you worry-free after-sales.
| Parameter | Value |
|---|---|
| Product | SGF3 270W |
| Maximum Power/Pmax (Wp) | 270W |
| Folding Number | 2pcs |
| Cell Efficiency | >22.7% |
| Number of Cells | 2*4*9 |
| Operating Voltage/Vmp (V) | 20.9 |
| Operating Current/Imp (A) | 13.18 |
| Open Circuit Voltage/Voc (V) | 24.5 |
| Short Circuit Current/Isc (A) | 13.56 |
| Folded Size (mm) | 900*770*35mm |
| Expand Size (mm) | 154*3900*35mm |
| Solar Cells | 182 mono cell |
| Weight (kg) | 3.48 |
| Maximum System Voltage | 100V DC(IEC) |
| Connector | Anderson |
| Color | White |
| Warranty | 10 years |
SGF series glass folding solar panel is one of the most mature products. The stable and worry-free use of the product greatly reduces the customer’s after-sales worries. It is affordable and very cost-effective.

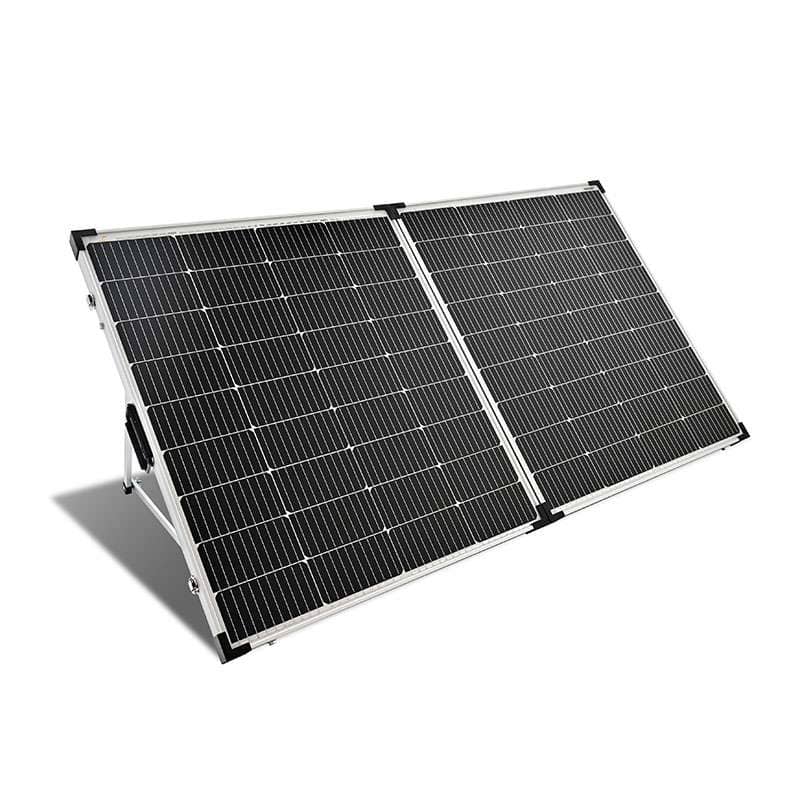

When the SGF series solar panel is opened, the angle of the bracket is V-shaped. A stand consists of two rectangular aluminum frames. One aluminum frame has a blank design in the middle, and the other has an adjustable screw at the bottom. If you want to raise the solar panel to absorb more sunlight, you can push the screw forward and it will work. If you want to lower the height, just push the screw back.
SGF series solar panels have IP67 waterproof rating, even if it gets rained or splashed, it will not affect the product work.
The SGF series glass folding solar panels have a 10-year warranty.
Its folded size is 885*770*35mm. Its expanded size is 1543*885*35mm.
| Maximum power(Pmax) | 270W |
| Open-circuit voltage(Voc) | 24.0V |
| Voltage at Pmax(Vmp) | 20.5V |
| Short-circuit current(Isc) | 13.50A |
| Current at Pmax(Imp) | 12.74A |
| Cells efficiency(%) | 22.70% |
| The maximum system voltage | 100V DC(IEC) |
| Power temperature coefficient | -0.38%/℃ |
| Voltage temperature coefficient | -0.36%/℃ |
| Current temperature coefficient | 0.07%/℃ |
| Output power tolerance | ±3% |
| Operating temperature | -10~60℃ |
| Unfolding size | 1543*885*35mm |
| Folding size | 885*770*35mm |
| Warranty | 10 years |
What is the difference between SGF series glass folding solar panel and others?
SGF series glass folding solar panel is one of the most mature products. The stable and worry-free use of the product greatly reduces the customer’s after-sales worries. It is affordable and very cost-effective.
How is the bracket of the SGF series designed?
When the SGF series is opened, the angle of the bracket is V-shaped. A stand consists of two rectangular aluminum frames. One aluminum frame has a blank design in the middle, and the other has an adjustable screw at the bottom.
If you want to raise the solar panel to absorb more sunlight, you can push the screw forward and it will work. If you want to lower the height, just push the screw back.
What is the waterproof performance of SGF series folding solar panel?
SGF series folding solar panel have IP67 waterproof rating, even if it gets rained or splashed, it will not affect the product work.
How about the warranty of SGF series folding solar panel?
The SGF series glass folding solar panels have a 10 year warranty.
What is the size of this SGF series 270W folding solar panel?
Its folded size is 885*770*35mm. Its expanded size is 1543*885*35mm.
