How Many Solar Panels Do I Need to Run A Refrigerator?

  1. Home
  2. »
  3. BLOGS
  4. »
  5. How Many Solar Panels Do I Need to Run A Refrigerator?

Table of Contents

If you’re considering solar power for your refrigerator, you may ask, how many solar panels do I need to run a refrigerator? As environmental awareness grows, more and more people are choosing to utilize solar power to meet their home’s power needs, especially for appliances like refrigerators that need to run every day. So, will a set of solar panels be enough to meet your refrigerator’s power needs? It depends on several factors:

  • The refrigerator’s power needs: how to assess the daily energy consumption of your refrigerator.
  • The efficiency and installation of the solar panels: how to maximize the energy conversion of the solar panels.
  • The impact of sunlight conditions: adjusting the configuration of solar panels to the sunlight in your area.

In this article, we will analyze these factors to help you better understand how to choose the right solar panel system for your refrigerator. We highly recommend a Sungold 200 watt portable panel to power your refrigerator with high efficiency.

Can a 200 watt solar panel run a refrigerator?

Yes, a 200 watt solar panel can power a 12v portable solar refrigerator. Modern refrigerators consume about 100 to 300 watts of power, depending on the model and energy efficiency rating. When your refrigerator’s daily power consumption does not exceed 1.2kWh, a 200-watt solar panel is capable of meeting its power needs under ideal sunlight conditions.

It is important to note that it is best to have solar panels, batteries, inverters, and charge controllers to use solar energy. Solar panels can convert sunlight into electricity, but there are power stations or batteries that can store energy and power the refrigerator.

How many solar panels do I need to run a refrigerator?

On average, you will need about 3 – 4 solar panels to power a typical home refrigerator. The actual number of solar panels needed depends on the wattage of each panel and the type and size of the refrigerator.

Example:

  • 12V Portable Refrigerator: If you have a 12V portable refrigerator, a 100 to 200 watt solar panel can usually power it for a few hours in good sunlight. These portable refrigerators typically use less power and are good for short trips or outdoor activities.
  • Larger home refrigerators: For larger home refrigerators, you may need multiple high-output solar panels due to their higher energy consumption. For example, four to six 200-watt solar panels may be needed for 24/7 power, depending on the refrigerator’s energy efficiency and sunlight conditions.

In addition, if you want to continue to power your refrigerator at night or on cloudy days, it is recommended that you use solar panels in conjunction with a portable power station or battery storage system. This allows you to store excess power generated during the day for use in the absence of sunlight.

In addition to the examples above, those 4 factors we mentioned at the beginning need to be taken into account when calculating the number of solar panels needed:

  • The refrigerator’s power needs: how to assess the daily energy consumption of your refrigerator.
  • The efficiency and installation of the solar panels: how to maximize the energy conversion of the solar panels.
  • The impact of sunlight conditions: adjusting the configuration of solar panels to the sunlight in your area.

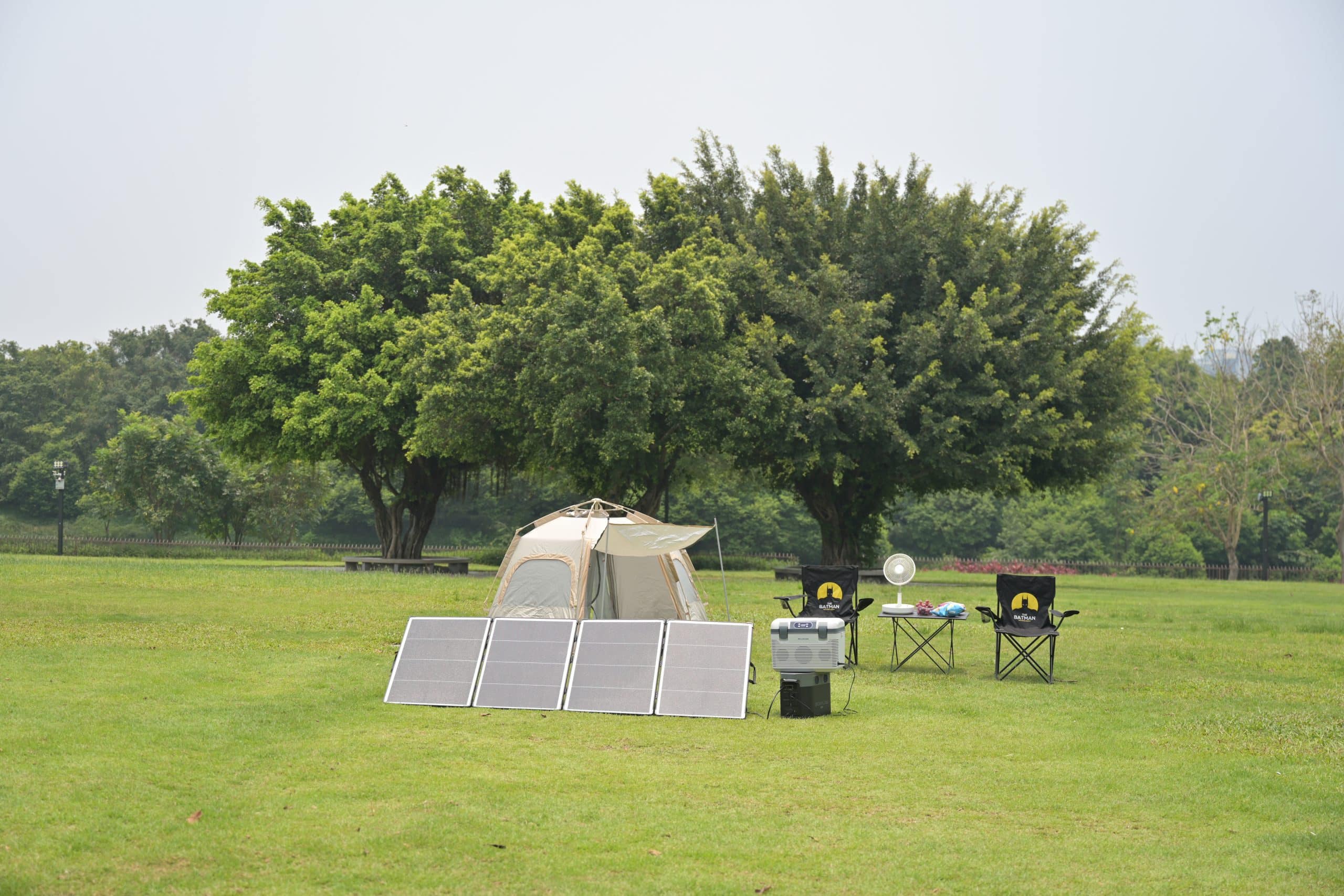

400w solar panel is charging a 12v refrigerator
400w solar panel is charging a 12v refrigerator

The refrigerator’s power needs

Understanding the power consumption of your refrigerator is crucial for determining how many solar panels you need to power it effectively. The EnergyGuide label on most American refrigerators provides an estimated annual energy consumption, which can be used to calculate daily energy use (kWh/day).

Using the EnergyGuide label

The EnergyGuide label displays the refrigerator’s annual energy consumption in kilowatt-hours (kWh/year). By dividing this value by 365 (the number of days in a year), you can find the estimated daily energy consumption (kWh/day).

  • Example: If a refrigerator’s label shows an estimated annual energy consumption of 600 kWh:
    600 kWh ÷ 365 days ≈ 1.644 kWh/day
  • This means the refrigerator uses approximately 1.644 kWh of energy per day.

Energy consumption by refrigerator size

The size of the refrigerator directly impacts its energy consumption. Below are typical values for different refrigerator sizes:

Product TypeSizeAnnual Energy Consumption (kWh/year)Daily Energy Consumption (kWh/day)Daily Energy Consumption (Wh/day)
Small Refrigerator4.5 cubic feet237 kWh0.65 kWh650 Wh
Medium Refrigerator12 cubic feet312 kWh0.85 kWh850 Wh
Large Refrigerator27 cubic feet728 kWh2 kWh2000 Wh

The efficiency and installation of solar panels

Having understood the energy consumption of different types of refrigerators, the power of the solar panels, and the amount of electricity they generate are the key factors that affect this issue.

Solar Panel Efficiency and Installation

To maximize the effectiveness of solar panels in powering your refrigerator, understanding their efficiency and proper installation is crucial. Different types of solar panels, such as monocrystalline, offer high efficiency, converting 15-22% of sunlight into electricity.

Proper installation involves positioning the panels to face south in the Northern Hemisphere and angling them according to your location’s latitude to optimize sunlight absorption. It’s also essential to place the panels in an area free from shadows caused by trees or buildings to ensure they can absorb the maximum amount of sunlight throughout the day.

  • Efficiency of solar panels:

Different types of solar panels have different conversion efficiencies. Monocrystalline solar panels typically have the highest efficiency, converting 15-22% of sunlight into electricity. In contrast, polycrystalline solar panels and thin-film solar panels are less efficient, but more economically priced.

Choosing efficient solar panels can reduce the total number of panels needed, especially in areas with less than ideal-sunlight conditions.

  • Mounting angle and orientation of solar panels:

The location and angle at which a solar panel is mounted can have a significant impact on its performance. Ideally, solar panels should face due south (in the northern hemisphere) and adjust the tilt angle to the local latitude to maximize sunlight absorption Avoiding shadows and shading is also key. Any trees, buildings or other obstructions can significantly reduce the efficiency of the solar panels.

  • Arrangement and placement of solar panels:

Arranging solar panels in arrays can increase the total amount of power generated, space permitting. Arrays should be designed with optimal sunlight absorption and minimal energy loss in mind. The use of a tracking system can help solar panels track the sun throughout the day, thus further increasing energy harvesting efficiency.

The Impact of Sunlight Conditions

The amount of electricity your solar panels can produce largely depends on the sunlight conditions in your area. The term “Peak Sun Hours” refers to the hours in a day when sunlight intensity is strong enough to allow solar panels to operate at their maximum capacity. For instance, in regions with abundant sunlight, solar panels might achieve 5-6 peak sun hours daily, significantly enhancing their output.

Conversely, in areas with frequent clouds or rain, the electricity generated will be lower. Therefore, knowing the peak sun hours in your region is crucial for determining the number of solar panels needed to meet your refrigerator’s power requirements effectively.

solar irradiance throughout the day
solar irradiance throughout the day

What Size of Solar Panels Do I Need to Run A Refrigerator?

To determine the size of solar panels needed to run a refrigerator, you’ll need to consider several factors, including the refrigerator’s power consumption, the location’s solar irradiance, and the system’s efficiency.

100w solar panel

The Sungold SPC 100W solar panel is an efficient and durable option designed for a wide range of application scenarios. Its compact size and flexible configuration make it particularly suitable for powering refrigerators, especially in small or mobile power systems such as camping, RVs, boats, etc. The SPC 100W panels can be easily installed in limited spaces to provide a reliable power supply. For refrigerators that require daily operation, four of these panels can meet their 24/7 power needs.

200w solar panel

Sungold HP-S 200W solar panel is a high power, high efficiency panel designed for applications requiring high capacity power. Its superior energy output and excellent space utilization make it ideal for powering refrigerators, especially for fixed installations and environments where higher power is required, such as off-grid systems in homes or fixed bases.The HP-S 200W panel delivers double the power of a 100W panel in a smaller installation space, making it ideal for applications where space is limited but power needs are high. Only 2 of these panels are needed to meet the 24/7 power needs of most refrigerators.

Solar power for refrigerator FAQs

What Size Solar Generator Do I Need to Run a Refrigerator and Freezer?

To run both a refrigerator and freezer, you’ll need a solar generator with at least 2000Wh capacity to cover their combined daily energy consumption. This ensures enough power for continuous operation and provides a buffer for days with less sunlight.

How Many Solar Panels Do I Need to Run a Refrigerator and Freezer?

To run a refrigerator and freezer consuming 2kWh daily, you need around 400W of solar power. This translates to 4 panels of 100W each or 2 panels of 200W each, assuming 5 peak sun hours per day.

How Long Will a Solar Generator Power a Refrigerator?

A 1000Wh solar generator can power a refrigerator consuming 200 watts for about 5 hours. The exact duration depends on the refrigerator’s power draw and the generator’s capacity.

How Many Solar Panels to Run a Refrigerator?

A refrigerator using 1kWh daily needs about 200W of solar power. This equates to 2 panels of 100W each or 1 panel of 200W, assuming 5 peak sun hours per day.

Can a 100 Watt Solar Panel Run a Refrigerator?

A single 100W solar panel is typically insufficient to run a refrigerator continuously, as it generates only about 500Wh daily, while most refrigerators need more.

Can a 400 Watt Solar Panel Run a Refrigerator?

A 400W solar panel can usually power a standard refrigerator, generating up to 2000Wh daily with sufficient sunlight, meeting most daily energy requirements for refrigerators.
