In the quest for a sustainable future, solar energy stands out as a beacon of hope. As more homes and businesses adopt photovoltaic (PV) systems to harness the power of the sun, a critical question often arises: what is the best angle to install solar panels? It may seem like a minor detail, but the orientation of your PV panels can significantly impact their efficiency and, consequently, the amount of electricity they generate. This comprehensive guide will delve into the science behind solar panel angles, their effect on power generation, and how to determine the optimal orientation for your specific needs.
The Dance of Light and Power: How Angle Affects Performance
Imagine a solar panel as a tiny power plant that feeds on sunlight. To maximize its output, you want it to receive the most direct and intense sunlight possible throughout the day and year. This is where two key angles come into play: the tilt angle and the azimuth angle.
-
Tilt Angle: This is the vertical angle of your solar panels relative to the horizontal ground. A panel lying flat has a tilt angle of 0 degrees, while a panel standing vertically has a tilt of 90 degrees. The ideal tilt angle is one that allows the sun’s rays to strike the panel’s surface perpendicularly. As the sun’s position in the sky changes with the seasons – higher in the summer and lower in the winter – the optimal tilt angle also varies.
-
Azimuth Angle: This refers to the horizontal orientation of your solar panels. It’s the direction they face – north, south, east, or west. For maximum annual energy production, the general rule of thumb is to face your panels towards the equator. This means in the Northern Hemisphere, panels should ideally face south, and in the Southern Hemisphere, they should face north. This positioning ensures they capture the maximum amount of sunlight as the sun traverses the sky.
When solar panels are not at an optimal angle, the sunlight hits them at an oblique angle. This spreads the light over a larger area of the panel, reducing the intensity of the energy received by the photovoltaic cells and, in turn, lowering electricity production.
Finding the Sweet Spot: Determining the Optimal Angle
Now that we understand the importance of panel angles, how do we find the perfect orientation for a specific location? The optimal angle is not a one-size-fits-all solution; it’s influenced by several factors, most notably your geographical latitude.
The Latitude Rule: A Simple Starting Point
A widely accepted and straightforward method for determining the best year-round tilt angle for a fixed solar panel system is to set the tilt angle equal to your location’s latitude. For instance, if you live at a latitude of 34 degrees, a tilt angle of 34 degrees would be a good starting point for maximizing annual energy generation.
Seasonal Adjustments for Enhanced Output
For those willing to make a few adjustments throughout the year, optimizing the tilt angle for different seasons can yield even better results. A common strategy is:
-
Winter: During the winter months, when the sun is lower in the sky, a steeper tilt angle is more effective. A general guideline is to add 15 degrees to your latitude. For a latitude of 34 degrees, the optimal winter tilt would be around 49 degrees.
-
Summer: In the summer, the sun is positioned higher. To capture this direct sunlight, a shallower tilt is needed. You can calculate this by subtracting 15 degrees from your latitude. For a 34-degree latitude, the summer tilt would be approximately 19 degrees.
-
Spring and Autumn: During the spring and autumn equinoxes, the sun’s path is more moderate. A tilt angle roughly equal to your latitude is generally recommended.
By making these seasonal adjustments, you can potentially increase your solar energy harvest by a noticeable margin compared to a fixed-tilt system.

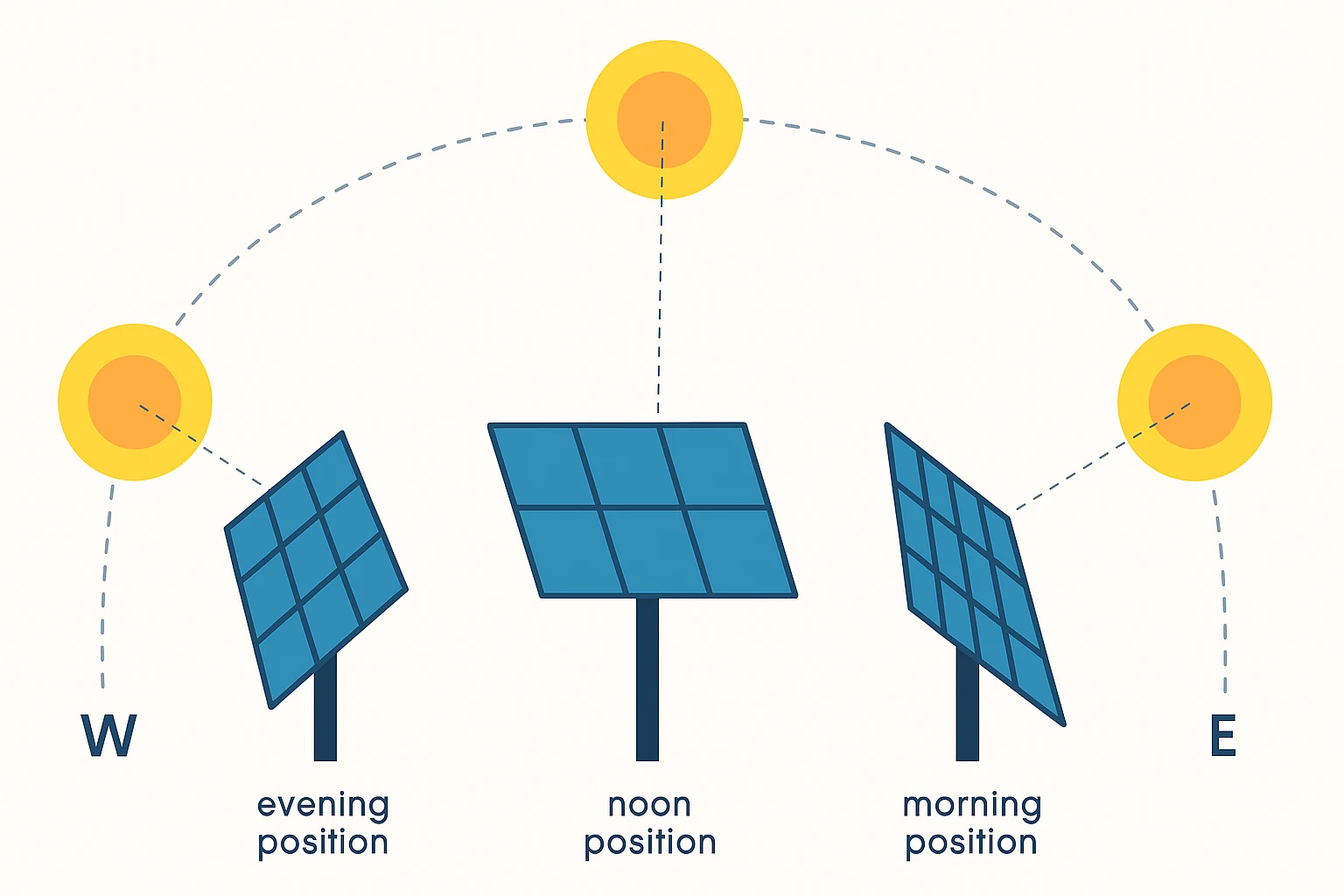

The Ultimate in Optimization: Solar Tracking Systems
For those seeking the pinnacle of solar efficiency, solar tracking systems offer a dynamic solution. These systems automatically adjust the tilt and azimuth angles of the panels throughout the day to continuously face the sun directly. There are two main types:
-
Single-Axis Trackers: These systems track the sun’s movement from east to west. They can significantly boost energy production, often by 25% to 35% compared to fixed-tilt systems.
-
Dual-Axis Trackers: Taking it a step further, dual-axis trackers follow the sun’s daily east-to-west movement and its seasonal north-to-south journey. This comprehensive tracking can increase energy generation by up to 40% or more.
While solar trackers offer the highest efficiency, they also come with higher initial costs and maintenance requirements due to their moving parts. Therefore, the decision to invest in a tracking system depends on your budget, energy needs, and the specifics of your location.
Practical Considerations
While the formulas and guidelines provide an excellent framework, real-world factors can also influence the optimal angle for your solar panels. The pitch of your roof, for example, might dictate the tilt angle unless you opt for specialized mounting hardware. Or you can just use solar panel angles calculator to help you decide. Shading from nearby trees or buildings can also impact the ideal placement and orientation.
In conclusion, the angle of your photovoltaic panels is a crucial determinant of their power generation performance. By understanding the principles of tilt and azimuth angles and applying the appropriate strategies for your location and needs – whether it’s a simple fixed-tilt based on latitude, seasonal adjustments, or a sophisticated tracking system – you can unlock the full potential of your solar investment. A well-angled solar array not only maximizes your clean energy production but also accelerates your return on investment, bringing you one step closer to energy independence and a more sustainable lifestyle.
